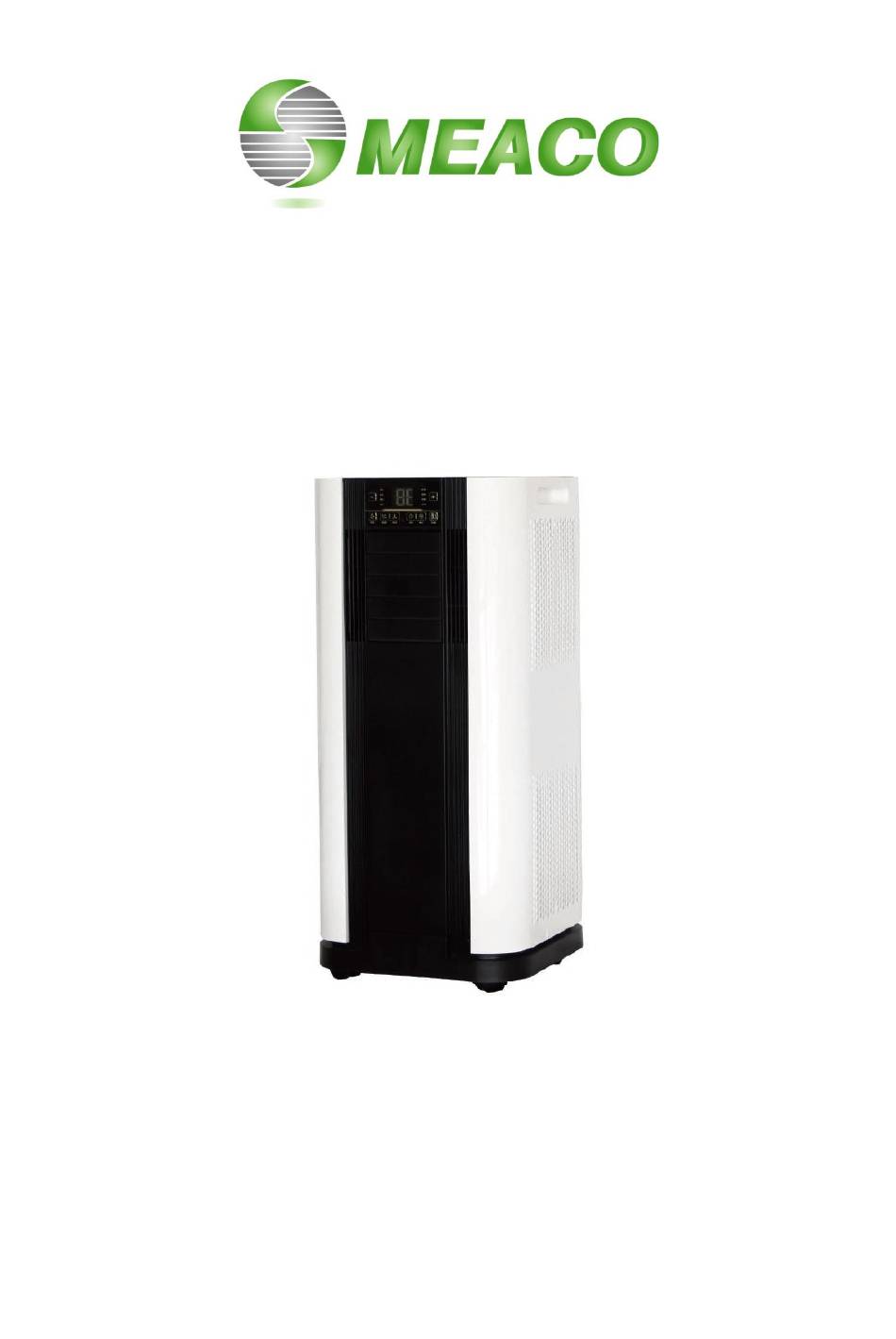

- Page 1 MeacoCool MC Series Portable Air Conditioner (Cooling and Heating) Instruction Manual MeacoCool MC Series 9000 BTU CH Please read this instruction manual before using the portable air conditioner and keep safe for future reference. Thank you for choosing Meaco, we really appreciate it.
-
Page 2: Saftey Information
If in doubt do not use the portable air conditioner and consult a qualified electrician or a Meaco approved engineer. Keep Air Intakes Clear: Do not clog or block the air intakes by placing the portable air conditioner too close to curtains, walls or anything that will restrict the air inlet. - Page 3 Do not puncture either during the units working life or after. At the end of life dispose of following local recycling regulations. • If there is any damage to the portable air conditioner then do not use it and contact Meaco or your retailer. •...
-
Page 4: Wiring Instructions
GREEN/YELLOW. Always ensure that the cord grip is positioned and fastened correctly. Only ever use the same fuse as fitted in the original product, if in doubt please contact Meaco first, or a qualified electrician. Example wiring for a Standard British Plug:... -
Page 5: General Advice
GENERAL ADVICE --------------------------------------------------------------------------------------------------------------------------------------- • Before putting your portable air conditioner into operation for the first time, the instruction manual should be studied carefully. • After receiving the portable air conditioner, you should check the unit for any transport damage. In case of damage, you should inform the sender immediately. •... -
Page 6: Product Identification
PRODUCT IDENTIFICATION ----------------------------------------------------------------------------------------------------------------------------- ---------- Allow 50cm clearance around all sides of the portable air conditioner for optimum air flow. Control Panel Remote Control Receiver Air Outlet Handle Air Inlet Exhaust Hose Connection Mains Cable Tidy Air Inlet Water Drain Outlet... -
Page 7: Control Panel
CONTROL PANEL ----------------------------------------------------------------------------------------------------------------------------- ---------- POWER BUTTON When first plugged in the portable air conditioner will enter standby mode and display ‘- - ‘. Press the Power Button to switch the unit on – the unit will enter the default Smart Mode and the compressor will not start for three minutes. - Page 8 3. SMART MODE: Use to automatically control the temperature Below 22°C the unit will run in Heating Mode. Above 24°C the unit will run in Cooling Mode. Between 22°C and 24°C the unit will run in Fan Mode. 4. FAN MODE: Use to circulate the air in the room at a comfortable temperature There will be no heating or cooling, just the fan running.
-
Page 9: Remote Control
REMOTE CONTROL ----------------------------------------------------------------------------------------------------------------------------- ---------- Before use remove the battery’s insulating piece as per below. - Page 10 HOSE AND WINDOW BLANKING PLATE ----------------------------------------------------------------------------------------------------------------------------- ---------- 1. Exhaust Duct 2. Exhaust Machine Connector 3. Exhaust Window Connector 4. Remote Control 5. Window Blanking Plate 6. Drainage Pipe HOW TO CONNECT THE HOSE TO THE PORTABLE AIR CONDITIONER The exhaust duct connects onto the back of the air conditioner to remove the hot air outside, typically through a window.
- Page 11 HOW TO BUILD THE WINDOW BLANKING PLATE 1. Insert the A plate into the B plate. 2. After completing the assembly, adjust it according to the height of the window. 3. If the blanking plate is not long enough to close the window, insert the C plate to increase the height.
- Page 12 HOW TO DRAIN WATER FROM THE TANK The drainage pipe is used to drain water away from the portable air conditioner when Ft (Full Tank) appears on the display, or when it is being used in Dehum Mode. Connect the drainage pipe to the bottom of the portable air conditioner and raise the portable air conditioner slightly allowing water to drain out of the tank via gravity.
-
Page 13: Specifications
SPECIFICATIONS ----------------------------------------------------------------------------------------------------------------------------- ---------- 9000 BTU Cooling Capacity 8000 BTU Heating Capacity 330m³/hour Maximum Air Flow 220 - 240V / 50Hz Power Supply Power Consumption: Cooling (watts) Power Consumption: Heating (watts) R290 / 200g Refrigerant 5.0A / 1080W Maximum Input Current/Power 53dB in low fan speed Noise Level 16-26... -
Page 14: Troubleshooting
Press the ON/OFF button. If it still does not work please Power button does not work Check the instructions above. contact Meaco. The compressor does not turn Machine turned on but on for the first three minutes of compressor does not work operation. - Page 15 Please contact Meaco. Temperature sensor is faulty. Please contact Meaco. Evaporator coil sensor is faulty. Please contact Meaco. If you need to contact Meaco, please use the contact details below. Contact Number: 01483 234900 Contact Email: customerservice@meaco.com service@meaco.com Live Chat:...
-
Page 16: Warranty And Customer Service
Costco, please refer to Costco for further details. If there is a problem with your portable air conditioner during this time frame, contact Meaco for advice or contact Costco directly. Please keep hold of your receipt from Costco should the portable air conditioner develop a fault.
