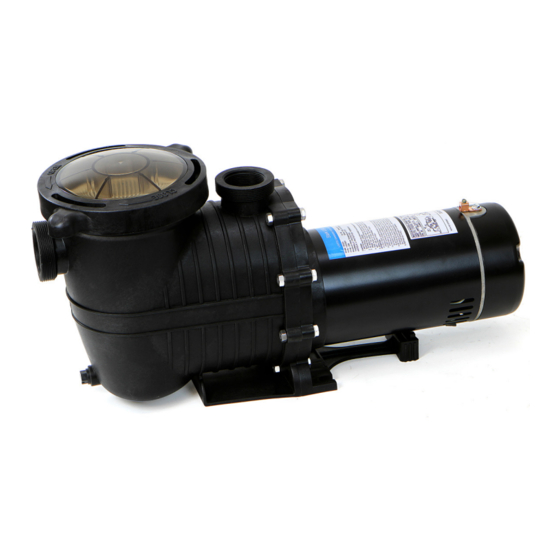

2HP IN AND ABOVE GROUND POOL PUMP 5850GPH, 230V 1.5"
ITEM: 75039
OWNER'S MANUAL AND SAFETY INSTRUCTIONS
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT'S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 0880 MON-FRI 9AM TO 3PM PST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5850GPH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Xtreme Power 5850GPH

  • Page 1 2HP IN AND ABOVE GROUND POOL PUMP 5850GPH, 230V 1.5” ITEM: 75039 OWNER’S MANUAL AND SAFETY INSTRUCTIONS SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY, OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION GENERAL SAFETY WARNINGS Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. SAFETY The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur.
  • Page 3 IMPORTANT SAFETY INFORMATION To reduce the risk of electric shock replace damaged cord immediately. DO NOT bury cord. Locate cord to prevent abuse from lawn mowers, hedge trimmers and other equipment. Risk of Electric Shock. Connect only to a branch circuit protected by a ground-fault circuit-interrupter (GFCI).
  • Page 4 IMPORTANT SAFETY INFORMATION Hazardous Pressure: Pool and spa water circulation systems operate under hazardous pressure during start-up, normal operation, and after pump shut-off. Stand clear of circulation system equipment during pump start-up. Failure to follow safety and operation instructions could result in violent separation of the pump housing and cover due to pressure in the system, which could cause property damage, severe personal injury, or death.
  • Page 5: Features And Specifications

    DIAGRAM AND SPECIFICATIONS PUMP HOUSING STRAINER COVER STRAINER PUMP HOUSING BASKET MOTOR MOUNTING FOOT PUMP COVER & GASKET TRAINER HOUSING Assembled Product Dimensions L x W x H 25.0 x 9.0 x 13.0 Inches FEATURES AND SPECIFICATIONS This swimming pool pump is ideal for applying on in-ground pools of all types and sizes, including in-floor cleaning systems, solar heating systems, water features.
  • Page 6: Pipe Sizing Chart

    INSTALLATION PUMP LOCATION WATER LINE PUMP WITH DRAIN STRAINER VALVE POOL SUCTION POOL RETURN BALL OUTLET VALVE VALVE Locate the system below the pool water line, for best pump performance. Install pump on a firm, level base or pad to meet all local and national codes. The field supplied base or pad must be level. Though the pump is designed for outdoor use, it is strongly advised to protect the electrical components from the weather.
  • Page 7: Installation

    INSTALLATION Fasten pump to base or pad with screws or bolts to reduce vibration and stress on pipe or hose joints. We recommend a minimum clearance around the pad of 18” to allow adequate access for servicing pump and piping. PUMP LOCATION Installing union connections at the suction and outlet ports is recommended, to facilitate servicing of pump and to allow for indoor storage during the winter months.
  • Page 8: Prior To Start-Up

    START-UP AND OPERATION PUMP DISCHARGE POSITION Step 1: Remove ALL plumbing attached to pump. Remove pump from base (if applicable). Step 2: Remove strainer housing. Disengage and lift off strainer cover. Remove strainer basket. Lift up on strainer ‘C’ clip and remove. Slide strainer housing forward and remove.
  • Page 9: Shaft Seal Change Instructions

    OPERATION PUMP WINTERIZATION STORAGE ELECTRICAL HAZARD: To avoid dangerous or fatal electrical shock hazard, turn OFF power to motor before draining pump. Drain all water from pump and piping when expecting freezing temperatures or when storing pump. 1. Drain water level below all inlets to the pool. 2.
  • Page 10: Operation

    OPERATION SHAFT SEAL CHANGE INSTRUCTIONS 1. Shut off water flow to pump by closing appropriate valves or by plugging both the skimmer outlet port and return port to pool. Disconnect piping or hoses from the motor/pump assembly. 2. Remove the strainer by disengaging and removing the strainer cover. Remove the basket. Lift up on strainer ‘C’...
  • Page 11: Troubleshooting

    TROUBLESHOOTING...
  • Page 12: Maintenance

    MAINTENANCE Clean strainer basket regularly. DO NOT strike basket to clean. Inspect strainer cover gasket regularly and replace as necessary. Keep motor clean. Insure air vents are free from obstruction. Occasionally, shaft seals must be replaced, due to wear or damage.
  • Page 13: Please Read The Following Carefully

    PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
