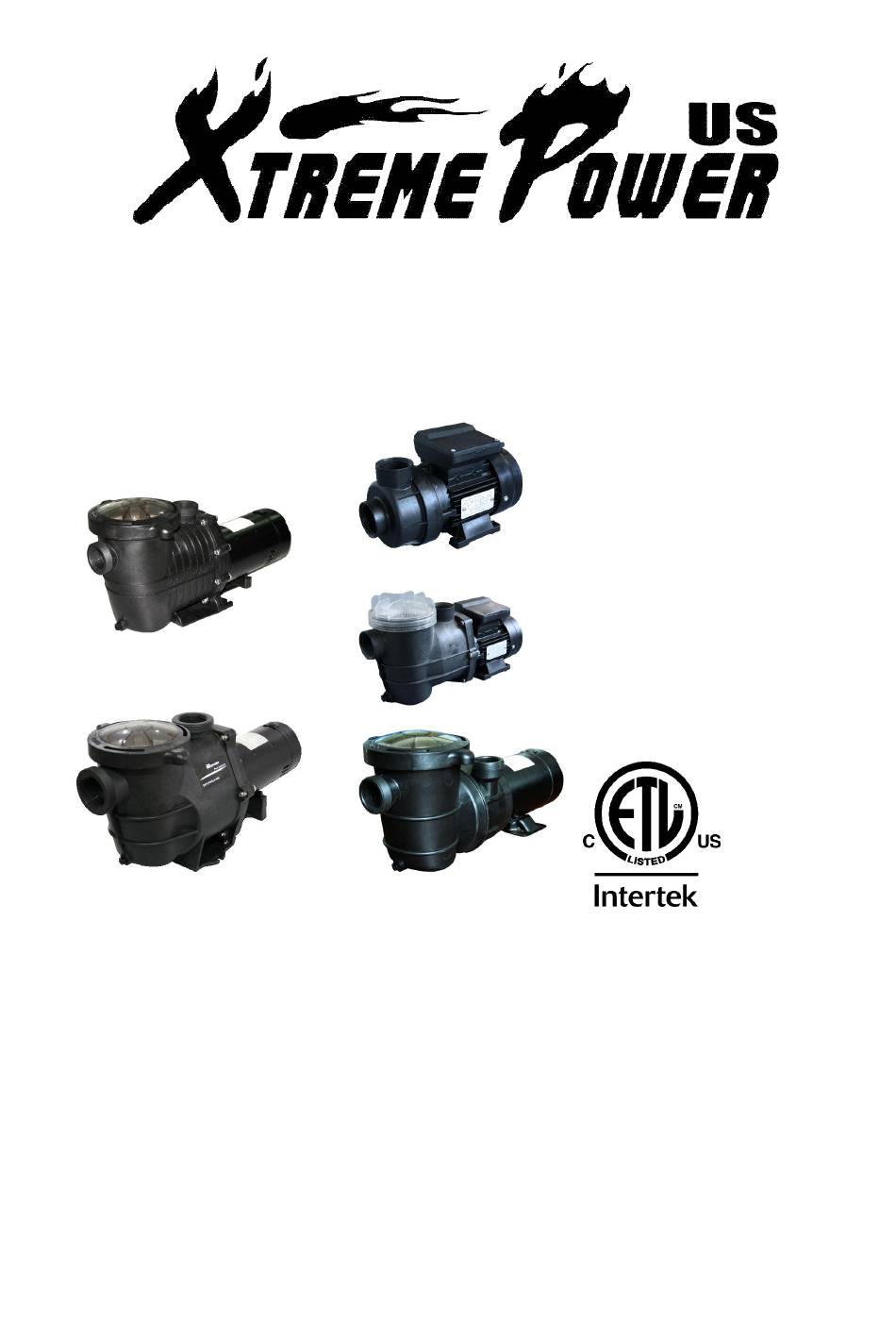

INSTALLATION, OPERATION, & PARTS
Before installation, be sure to read all instructions and warnings carefully.
Refer to product dataplate(s) for additional operating instruction and specifications.
Inspection
Examine the equipment when received. Notify your dealer or carrier of any damage or missing parts. Verify
that equipment is of size and model specified.
Important Safety Instructions
When installing and using this electrical equipment,basic safety precations should always be followed,
including the following:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. WARNING – To reduce risk of injury, do not permit children to use this product unless they are closely
OWNER'S MANUAL
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 72712 and is the answer not in the manual?

Questions and answers

Renae Foster
July 20, 2025

My pump is pumping like it's power surging! I have checked all electrical outlets and they are fine

R Davenport
July 2, 2025

How m how much sand goes into 72712

Carolyn
June 11, 2025

Does this pump have a timer on it if so we’re is it at on pump

Subscribe to Our Youtube Channel

Summary of Contents for Xtreme Power 72712

  • Page 1 OWNER’S MANUAL INSTALLATION, OPERATION, & PARTS Before installation, be sure to read all instructions and warnings carefully. Refer to product dataplate(s) for additional operating instruction and specifications. Inspection Examine the equipment when received. Notify your dealer or carrier of any damage or missing parts. Verify that equipment is of size and model specified.
  • Page 2 supervised at all times. 3. WARNING – (For cord & plug connected units). Risk of Electrical Shock. Connect only to a grounding type receptacle protected by a ground-fault circuit-interrupter (GFCI). Contact a qualified electrician if you cannot verify that the receptacle is protected by a GFCI. 4.
  • Page 3 Caution: We recommend that you consider climatic conditions when applying adhesives. Certain atmospheric situations, such as high moisture content, make adhesive action of certain glues less effective. Check the manufacturer’s instructions. FOR THREADED CONNECTIONS Use only Teflon tape or equivalent on threaded plumbing connections. Other pipe compounds may damage threads.
  • Page 4 Two-Speed Pumps Two-speed models are recommended in a swimming pool when high speed is needed for maximum filtration at peak periods and whenever turbidity levels are high. At other times, switch to low speed. For backwashing and vacuuming, high speed is required. In spas and hot tubs, use high speed to attain full performance in the hydro-therapy mode.
  • Page 5: Motor Does Not Start

    Winterizing Consult your dealer for advice on winterizing your Cleaning equipment if freezing temperatures occur in your Switch power off. Close valves in suction and locality. His knowledge of your equipment makes him return line. Unscrew strainer Ring-Lok the best qualified source of information. Follow his counterclockwise and remove the strainer cover from recommendations, and if these include draining the hair and lint strainer and lift out strainer basket.
  • Page 6: Technical Data

    1. Discharge valve or inlet fittings closed too much dealer for service. 2. Return lines too small TECHNICAL DATA Remark Model Volte / HZ Amps 72712/72713 1/4 HP 3450 115V/60HZ 72714/72715 1/3 HP 3450 115V/60HZ 72720...
  • Page 7 3450/1720 230V/60HZ 7.5A/2.1A 72754 1.0 HP 3450/1720 115V/60HZ 12A/3.6A 72755 1.5 HP 3450/1720 230V/60HZ 7.5A/2.1A Parts Listing:72712 / 72714/72720 Ref. No. Part No. Description 647251201080 Pump housing 647271271000 Impeller for 72712 647251271000 Impeller for 72714 647272071000 Impeller for 72720 65431069080...
  • Page 8 Parts Listing:72713 / 72715/72721 Ref. No. Part No. Description 647251503000 Cover 65431071080 o-ring 647251507001 basket 647251501080 Pump housing 65431070080 o-ring 647251504080 diffuser 647271271000 Impeller for 72713 647251271000 Impeller for 72715 647272071000 Impeller for 72721 65431037080 o-ring 65028013000 Seal assembly 647251502080 Pump cover 65224004000 Screw M6X25...
  • Page 9 Parts Listing:72728 / 72729 / 72729S/72730/72730S / 72726 / 72727 Ref. No. Part No. Description 647252772000 Cover 65431042080 o-ring 647252704001 Basket 647252705080 Clip 647252703080 Strainer housing 647252702080 Pump cover 647272871000 Impeller for 72728 647272971000 Impeller for 72729 / 72729S/72726 647252771000 Impeller for 72730 / 72730S/72727 65028003000 Seal assembly...
  • Page 10 Parts Listing:72742 / 72743 / 72744 / 72749 / 72750 / 72751 Ref. No. Part No. Description 647252772000 Cover 65431042080 o-ring 647252704001 Basket 647254201080 Pump housing 65431032080 o-ring 647254203080 Diffuser 647274271000 Impeller for 72742 / 72749 647274371000 Impeller for 72743 / 72750 647254271000 Impeller for 72744 / 72751 65431075080...
  • Page 11 Parts Listing:72747 / 72748 / 72754 / 72755 Ref. No. Part No. Description 647252772000 Cover 65431042080 o-ring 647252704001 Basket 647254701080 Pump housing 65431032080 o-ring 65212025000 Screw ST4.2X38 647254703080 Diffuser 647274771000 Impeller for 72747 / 72754 647274871000 Impeller for 72748 / 72755 65431074080 o-ring 647254702080...
