Qualified personnel.......................... 9 Description ............................ 10 Scope of delivery .......................... 10 Job description............................ 10 The product at a glance ........................ 11 The DO-400 / -410.......................... 11 Display elements .......................... 11 Operating elements .......................... 11 Bases for measurement ........................ 13 Oxygen sensor............................ 13 6.1.1...
Page 3
Table of contents 8.2.2 Opening the configuration menu...................... 21 8.2.3 Configuring parameters of the configuration menu................ 22 8.2.4 Adjustment of the measuring input ..................... 23 8.2.5 Configuring parameters of the adjustment menu................ 24 Error and system messages...................... 26 Disposal............................. 27 Technical data...........................
DO-400 About this documentation | 2 2 About this documentation 2.1 Foreword Read this document carefully and familiarise yourself with the operation of the product before you use it. Keep this document ready to hand and in the immediate vicinity of the product so that it is available to the personnel/user for reference at all times in case of doubt.
2 | About this documentation DO-400 Outcome of an action Result, consequence or effect of an instruction. Emphases In order to simplify legibility and provide a clearer overview, various sections / informa- tion are emphasised. – 1234 Display elements – Mechanical controls –...
DO-400 Safety | 3 3 Safety 3.1 Explanation of safety symbols DANGER This symbol warns of imminent danger which can result in death, severe bodily injury, or severe property damage in case of non-observance. DANGER This symbol indicates danger for living tissue as well as a variety of materials, which can be damaged or destroyed when coming into contact with this chemical.
3 | Safety DO-400 DANGER Incorrect area of application! In order to prevent erratic behaviour of the product, personal injury or property dam- age, the product must be used exclusively as described in the chapter Description [} p. 10] in the operating manual.
DO-400 Safety | 3 For this purpose, also refer to 2 Technical data [} 28] 3.4 Intended use The product is designed for analysis of the oxygen concentration and/or oxygen satur- ation in freshwater and salt water. It is used, for example, for the monitoring of wells, sewer lines and aquaria.
4 | Description DO-400 4 Description 4.1 Scope of delivery Please check to ensure the completeness of the product after opening the package. You should find the following components: – Quick reference guide – Handheld measuring device, ready for operation, including batteries –...

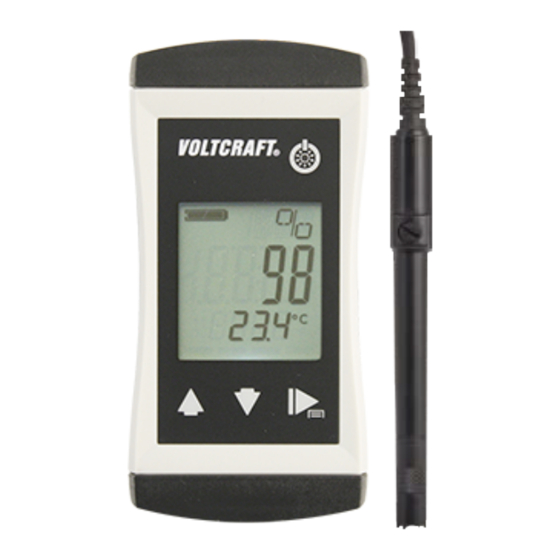

DO-400 The product at a glance | 5 5 The product at a glance 5.1 The DO-400 / -410 LCD Display DO-400 / -410 DO-400 / -410 5.2 Display elements Display Battery indicator Evaluation of the battery status Unit display...
Page 12
5 | The product at a glance DO-400 Up / Down button Press briefly Display of the min/max value Change value of the selected parameter Long press Reset the min/max value of the current measure- ment Both simultaneously Rotate display, overhead display...
DO-400 Bases for measurement | 6 6 Bases for measurement 6.1 Oxygen sensor 6.1.1 Explanation The oxygen sensor is an active sensor. It consists of a platinum cathode, a lead anode and potassium hydroxide (KOH) as an electrolyte. If oxygen is present, it is reduced on the platinum cathode and the sensor delivers a signal.
6 | Bases for measurement DO-400 6.1.2 Design Refill opening Shaft Membrane head Platinum electrode Storage bottle Platinum electrode If oxygen is present, it is reduced on the platinum electrode and the sensor delivers a signal. Soiling on the platinum electrode or between the membrane and electrode can influence the measurement.
DO-400 Bases for measurement | 6 – Mechanical stress of the sensor membrane – Storage in dry air – Continuous use in elevated carbon dioxide concentrations 6.1.4 Operating position The oxygen sensor should be arranged vertically upwards with the connecting cable.
6 | Bases for measurement DO-400 ter; the value is 0. A salinity of approx. 35 PSU is normal for sea water. The salinity correction is adjusted to aqueous media having a chemical composition corresponding to sea water. The International Oceanographic Tables (IOT) are used as a basis for the correction.
Page 17
DO-400 Bases for measurement | 6 3. Fill the pipette with the KOH electrolyte and initially fill the membrane head to ¾ full. Rinse off the excess electrolyte. 4. Slowly fill the sensor via the fill opening. In the process, tilt the sensor from side to side and tap the shaft to force out air bubbles.
7 | Maintenance DO-400 7 Maintenance 7.1 Operating and maintenance notices NOTE If the product is stored at a temperature above 50 °C, or is not used for an extended period of time, the batteries must be removed. Leaks from the batteries are avoided as a result.
DO-400 Maintenance | 7 NOTE Read the following handling instructions before replacing batteries and follow them step by step. If disregarded, the product could be damaged or the protection from moisture could be diminished. Description Proceed as follows to replace the batteries.
Page 20
7 | Maintenance DO-400 Outcome of an action After successful completion of the calibration the assessment of the electrode condi- tion is displayed briefly in percent. An aged or contaminated electrode, incorrect ad- justment of the pressure, contamination of the platinum electrode or a damaged mem- brane can be the cause for a lower evaluation.
DO-400 Operation | 8 8 Operation 8.1 Commissioning 8.1.1 Explanation Description The product is switched on with the On/Off button. It may be necessary to configure the product after switching on. See Configuration [} p. 21]. Prerequisite – Sufficiently full batteries are inserted in the product.
8 | Operation DO-400 4. When you have selected the desired parameter, change the parameter to the de- sired value with the Up button and the Down button. 5. The changes are saved after running through the entire Configuration menu. STOR appears in the display.
DO-400 Operation | 8 Shut-off time POFF No automatic shut-off Automatic shut-off after a selected time in minutes, 15 30 60 120 240 during which no buttons have been pressed Backlighting L,TE Backlighting deactivated 15 30 60 120 240 Automatic shut-off of the backlighting after a selec-...
8 | Operation DO-400 4. When you have selected the desired parameter, change the parameter to the de- sired value with the Up button and the Down button. 5. In order to save the new parameter value, press and hold the Function key for longer than 1 second.
Page 25
DO-400 Operation | 8 – Display in ice water setpoint T.OF = 0.0 °C – Display in water bath 36.6 °C – Display in water bath setpoint T.SL = 37.0 °C – T.OF = display zero point correction – setpoint zero point –...
9 | Error and system messages DO-400 9 Error and system messages Display Meaning Possible causes Remedy No display, Battery depleted Battery depleted Replace battery unclear char- System error Error in the product Send in for repair acters or no...
DO-400 Disposal | 10 10 Disposal NOTE The device must not be disposed of with household waste. If the product is disposed of, please take it to a municipal collection point, where it will be transported to a dis- posal company in accordance with requirements of hazardous goods laws. Otherwise, return it to us, freight prepaid.
DO-400 Service | 12 12 Service 12.1 Manufacturer If you have any questions, please do not hesitate to contact us: Contact VOLTCRAFT Distributed by Conrad Electronic SE Klaus-Conrad-Str. 1 92240 Hirschau, Germany Tel.: +49 9604 40 87 87 Fax: +49 180 5 312110 kundenservice@conrad.de...
