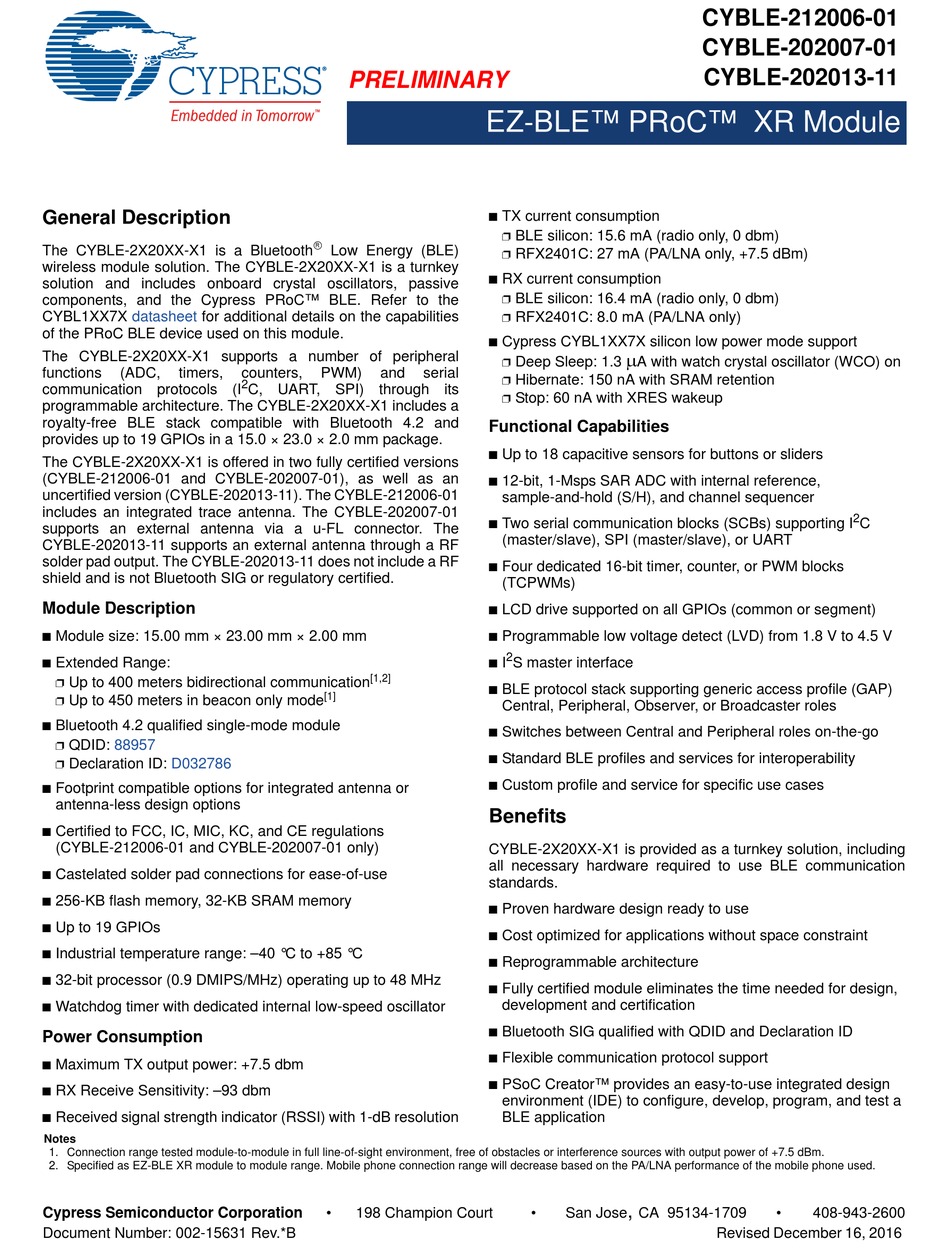

General Description
The CYBLE-2X20XX-X1 is a Bluetooth
wireless module solution. The CYBLE-2X20XX-X1 is a turnkey
solution and includes onboard crystal oscillators, passive
components, and the Cypress PRoC™ BLE. Refer to the
CYBL1XX7X
datasheet
for additional details on the capabilities
of the PRoC BLE device used on this module.
The CYBLE-2X20XX-X1 supports a number of peripheral
functions
(ADC,
timers,
communication protocols (I
programmable architecture. The CYBLE-2X20XX-X1 includes a
royalty-free BLE stack compatible with Bluetooth 4.2 and
provides up to 19 GPIOs in a 15.0 × 23.0 × 2.0 mm package.
The CYBLE-2X20XX-X1 is offered in two fully certified versions
(CYBLE-212006-01 and CYBLE-202007-01), as well as an
uncertified version (CYBLE-202013-11). The CYBLE-212006-01
includes an integrated trace antenna. The CYBLE-202007-01
supports an external antenna via a u-FL connector. The
CYBLE-202013-11 supports an external antenna through a RF
solder pad output. The CYBLE-202013-11 does not include a RF
shield and is not Bluetooth SIG or regulatory certified.
Module Description
■
Module size: 15.00 mm × 23.00 mm × 2.00 mm
■
Extended Range:
❐
Up to 400 meters bidirectional communication
❐
Up to 450 meters in beacon only mode
■
Bluetooth 4.2 qualified single-mode module
❐
QDID:
88957
❐
Declaration ID:
D032786
■
Footprint compatible options for integrated antenna or
antenna-less design options
■
Certified to FCC, IC, MIC, KC, and CE regulations
(CYBLE-212006-01 and CYBLE-202007-01 only)
■
Castelated solder pad connections for ease-of-use
■
256-KB flash memory, 32-KB SRAM memory
■
Up to 19 GPIOs
■
Industrial temperature range: –40 °C to +85 °C
■
32-bit processor (0.9 DMIPS/MHz) operating up to 48 MHz
■
Watchdog timer with dedicated internal low-speed oscillator
Power Consumption
■
Maximum TX output power: +7.5 dbm
■
RX Receive Sensitivity: –93 dbm
■
Received signal strength indicator (RSSI) with 1-dB resolution
Notes
1. Connection range tested module-to-module in full line-of-sight environment, free of obstacles or interference sources with output power of +7.5 dBm.
2. Specified as EZ-BLE XR module to module range. Mobile phone connection range will decrease based on the PA/LNA performance of the mobile phone used.
Cypress Semiconductor Corporation
Document Number: 002-15631 Rev.*B
PRELIMINARY
Low Energy (BLE)
counters,
PWM)
and
2
C, UART, SPI) through its
[1,2]
[1]
•
198 Champion Court
EZ-BLE™ PRoC™ XR Module
■
TX current consumption
❐
BLE silicon: 15.6 mA (radio only, 0 dbm)
❐
RFX2401C: 27 mA (PA/LNA only, +7.5 dBm)
■
RX current consumption
❐
BLE silicon: 16.4 mA (radio only, 0 dbm)
❐
RFX2401C: 8.0 mA (PA/LNA only)
■
Cypress CYBL1XX7X silicon low power mode support
❐
Deep Sleep: 1.3
serial
❐
Hibernate: 150 nA with SRAM retention
❐
Stop: 60 nA with XRES wakeup
Functional Capabilities
■
Up to 18 capacitive sensors for buttons or sliders
■
12-bit, 1-Msps SAR ADC with internal reference,
sample-and-hold (S/H), and channel sequencer
■
Two serial communication blocks (SCBs) supporting I
(master/slave), SPI (master/slave), or UART
■
Four dedicated 16-bit timer, counter, or PWM blocks
(TCPWMs)
■
LCD drive supported on all GPIOs (common or segment)
■
Programmable low voltage detect (LVD) from 1.8 V to 4.5 V
2
■
I
S master interface
■
BLE protocol stack supporting generic access profile (GAP)
Central, Peripheral, Observer, or Broadcaster roles
■
Switches between Central and Peripheral roles on-the-go
■
Standard BLE profiles and services for interoperability
■
Custom profile and service for specific use cases
Benefits
CYBLE-2X20XX-X1 is provided as a turnkey solution, including
all necessary hardware required to use BLE communication
standards.
■
Proven hardware design ready to use
■
Cost optimized for applications without space constraint
■
Reprogrammable architecture
■
Fully certified module eliminates the time needed for design,
development and certification
■
Bluetooth SIG qualified with QDID and Declaration ID
■
Flexible communication protocol support
■
PSoC Creator™ provides an easy-to-use integrated design
environment (IDE) to configure, develop, program, and test a
BLE application
•
San Jose
CYBLE-212006-01
CYBLE-202007-01
CYBLE-202013-11
A with watch crystal oscillator (WCO) on
,
CA 95134-1709
•
Revised December 16, 2016
2
C
408-943-2600
