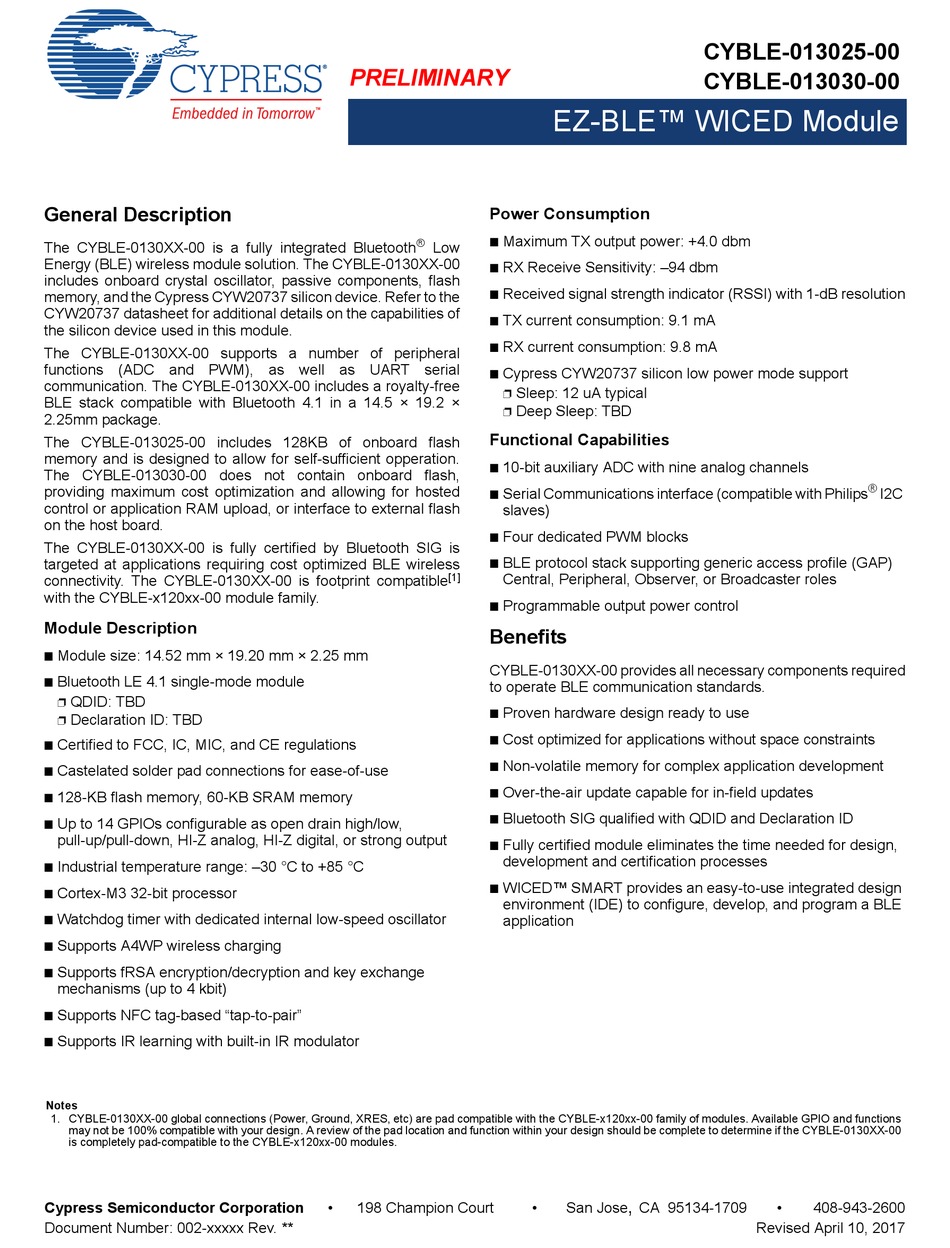

General Description

The CYBLE-0130XX-00 is a fully integrated Bluetooth

Energy (BLE) wireless module solution. The CYBLE-0130XX-00

includes onboard crystal oscillator, passive components, flash

memory, and the Cypress CYW20737 silicon device. Refer to the

CYW20737 datasheet for additional details on the capabilities of

the silicon device used in this module.

The CYBLE-0130XX-00 supports a number of peripheral

functions (ADC and PWM), as well as UART serial

communication. The CYBLE-0130XX-00 includes a royalty-free

BLE stack compatible with Bluetooth 4.1 in a 14.5 × 19.2 ×

2.25mm package.

The CYBLE-013025-00 includes 128KB of onboard flash

memory and is designed to allow for self-sufficient opperation.

The CYBLE-013030-00 does not contain onboard flash,

providing maximum cost optimization and allowing for hosted

control or application RAM upload, or interface to external flash

on the host board.

The CYBLE-0130XX-00 is fully certified by Bluetooth SIG is

targeted at applications requiring cost optimized BLE wireless

connectivity. The CYBLE-0130XX-00 is footprint compatible

with the CYBLE-x120xx-00 module family.

Module Description

Module size: 14.52 mm × 19.20 mm × 2.25 mm

Bluetooth LE 4.1 single-mode module

QDID: TBD

Declaration ID: TBD

Certified to FCC, IC, MIC, and CE regulations

Castelated solder pad connections for ease-of-use

128-KB flash memory, 60-KB SRAM memory

Up to 14 GPIOs configurable as open drain high/low,

pull-up/pull-down, HI-Z analog, HI-Z digital, or strong output

Industrial temperature range: –30 °C to +85 °C

Cortex-M3 32-bit processor

Watchdog timer with dedicated internal low-speed oscillator

Supports A4WP wireless charging

Supports fRSA encryption/decryption and key exchange

mechanisms (up to 4 kbit)

Supports NFC tag-based "tap-to-pair"

Supports IR learning with built-in IR modulator

Notes

1. CYBLE-0130XX-00 global connections (Power, Ground, XRES, etc) are pad compatible with the CYBLE-x120xx-00 family of modules. Available GPIO and functions

may not be 100% compatible with your design. A review of the pad location and function within your design should be complete to determine if the CYBLE-0130XX-00

is completely pad-compatible to the CYBLE-x120xx-00 modules.

Cypress Semiconductor Corporation

Document Number: 002-xxxxx Rev. **

PRELIMINARY

Power Consumption

Maximum TX output power: +4.0 dbm



Low

RX Receive Sensitivity: –94 dbm

Received signal strength indicator (RSSI) with 1-dB resolution

TX current consumption: 9.1 mA

RX current consumption: 9.8 mA

Cypress CYW20737 silicon low power mode support

Functional Capabilities

10-bit auxiliary ADC with nine analog channels

Serial Communications interface (compatible with Philips

slaves)

Four dedicated PWM blocks

BLE protocol stack supporting generic access profile (GAP)

Central, Peripheral, Observer, or Broadcaster roles

[1]

Programmable output power control

Benefits

CYBLE-0130XX-00 provides all necessary components required

to operate BLE communication standards.

Proven hardware design ready to use

Cost optimized for applications without space constraints

Non-volatile memory for complex application development

Over-the-air update capable for in-field updates

Bluetooth SIG qualified with QDID and Declaration ID

Fully certified module eliminates the time needed for design,

development and certification processes

WICED™ SMART provides an easy-to-use integrated design

environment (IDE) to configure, develop, and program a BLE

application

•

198 Champion Court

EZ-BLE™ WICED Module

Sleep: 12 uA typical

Deep Sleep: TBD

•

San Jose

CA 95134-1709

CYBLE-013025-00

CYBLE-013030-00

I2C

•

408-943-2600

Revised April 10, 2017
