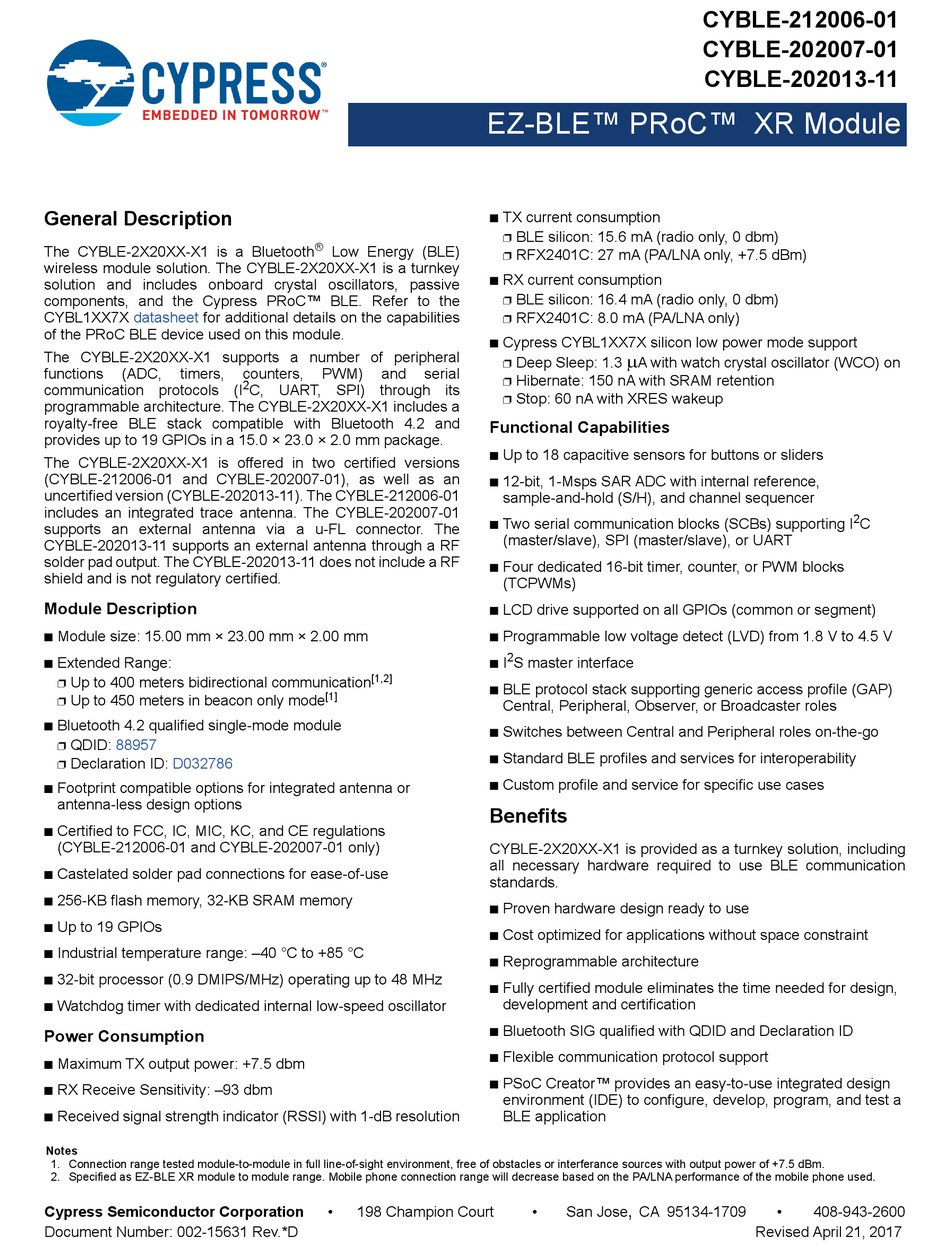

General Description
The CYBLE-2X20XX-X1 is a Bluetooth
wireless module solution. The CYBLE-2X20XX-X1 is a turnkey
solution and includes onboard crystal oscillators, passive
components, and the Cypress PRoC™ BLE. Refer to the
CYBL1XX7X
datasheet
for additional details on the capabilities
of the PRoC BLE device used on this module.
The CYBLE-2X20XX-X1 supports a number of peripheral
functions
(ADC,
timers,
communication protocols (I
programmable architecture. The CYBLE-2X20XX-X1 includes a
royalty-free BLE stack compatible with Bluetooth 4.2 and
provides up to 19 GPIOs in a 15.0 × 23.0 × 2.0 mm package.
The CYBLE-2X20XX-X1 is offered in two certified versions
(CYBLE-212006-01 and CYBLE-202007-01), as well as an
uncertified version (CYBLE-202013-11). The CYBLE-212006-01
includes an integrated trace antenna. The CYBLE-202007-01
supports an external antenna via a u-FL connector. The
CYBLE-202013-11 supports an external antenna through a RF
solder pad output. The CYBLE-202013-11 does not include a RF
shield and is not regulatory certified.
Module Description
Module size: 15.00 mm × 23.00 mm × 2.00 mm
Extended Range:
Up to 400 meters bidirectional communication
Up to 450 meters in beacon only mode
Bluetooth 4.2 qualified single-mode module
QDID:
88957
Declaration ID:
D032786
Footprint compatible options for integrated antenna or
antenna-less design options
Certified to FCC, IC, MIC, KC, and CE regulations
(CYBLE-212006-01 and CYBLE-202007-01 only)
Castelated solder pad connections for ease-of-use
256-KB flash memory, 32-KB SRAM memory
Up to 19 GPIOs
Industrial temperature range: –40 °C to +85 °C
32-bit processor (0.9 DMIPS/MHz) operating up to 48 MHz
Watchdog timer with dedicated internal low-speed oscillator
Power Consumption
Maximum TX output power: +7.5 dbm
RX Receive Sensitivity: –93 dbm
Received signal strength indicator (RSSI) with 1-dB resolution
Notes
1. Connection range tested module-to-module in full line-of-sight environment, free of obstacles or interferance sources with output power of +7.5 dBm.
2. Specified as EZ-BLE XR module to module range. Mobile phone connection range will decrease based on the PA/LNA performance of the mobile phone used.
Cypress Semiconductor Corporation
Document Number: 002-15631 Rev.*D
Low Energy (BLE)
counters,
PWM)
and
2
C, UART, SPI) through its
[1,2]
[1]
198 Champion Court
EZ-BLE™ PRoC™ XR Module
TX current consumption
BLE silicon: 15.6 mA (radio only, 0 dbm)
RFX2401C: 27 mA (PA/LNA only, +7.5 dBm)
RX current consumption
BLE silicon: 16.4 mA (radio only, 0 dbm)
RFX2401C: 8.0 mA (PA/LNA only)
Cypress CYBL1XX7X silicon low power mode support
Deep Sleep: 1.3
serial
Hibernate: 150 nA with SRAM retention
Stop: 60 nA with XRES wakeup
Functional Capabilities
Up to 18 capacitive sensors for buttons or sliders
12-bit, 1-Msps SAR ADC with internal reference,
sample-and-hold (S/H), and channel sequencer
Two serial communication blocks (SCBs) supporting I
(master/slave), SPI (master/slave), or UART
Four dedicated 16-bit timer, counter, or PWM blocks
(TCPWMs)
LCD drive supported on all GPIOs (common or segment)
Programmable low voltage detect (LVD) from 1.8 V to 4.5 V
2
I
S master interface
BLE protocol stack supporting generic access profile (GAP)
Central, Peripheral, Observer, or Broadcaster roles
Switches between Central and Peripheral roles on-the-go
Standard BLE profiles and services for interoperability
Custom profile and service for specific use cases
Benefits
CYBLE-2X20XX-X1 is provided as a turnkey solution, including
all necessary hardware required to use BLE communication
standards.
Proven hardware design ready to use
Cost optimized for applications without space constraint
Reprogrammable architecture
Fully certified module eliminates the time needed for design,
development and certification
Bluetooth SIG qualified with QDID and Declaration ID
Flexible communication protocol support
PSoC Creator™ provides an easy-to-use integrated design
environment (IDE) to configure, develop, program, and test a
BLE application
San Jose
CYBLE-212006-01
CYBLE-202007-01
CYBLE-202013-11
A with watch crystal oscillator (WCO) on
,
CA 95134-1709
Revised April 21, 2017
2
C
408-943-2600
