Mulit images PI 80 F4 / PI 80 F4 IP
• Choosing the projector install location and position, fix the projector by M8 bolts or expansion screws, adjust the
projection angle accordingly.
Gobo replacement
•
Please turn off the power supply before changing gobo. Then get off the front cover.
•

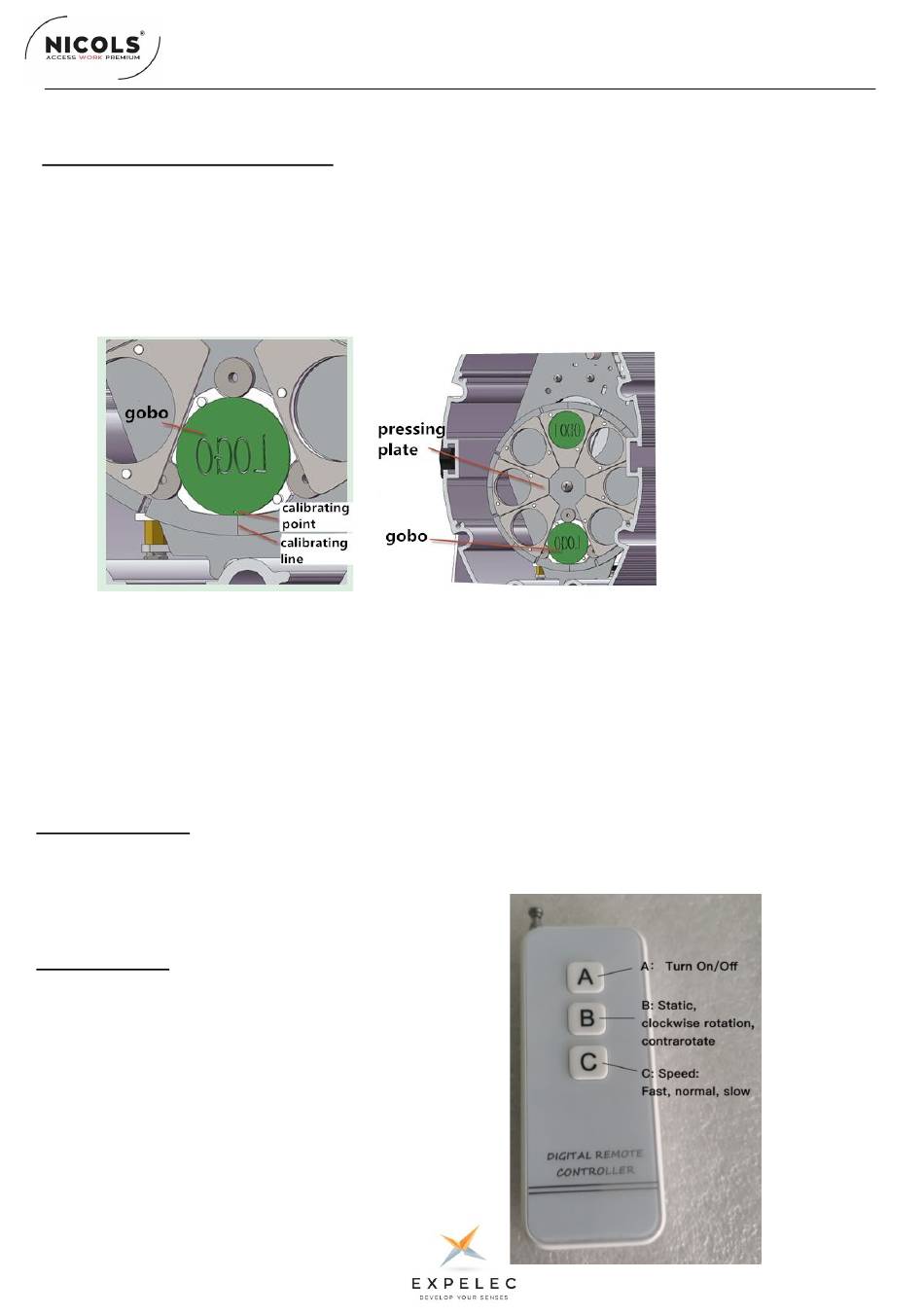

Then proceed as shown in below figure:
•
1
.Remove pressing plate firstly, put the gobo face down in the turntable, make gobo upper position toward to the center of
turntable, make sure the calibrating point on gobo is aligning with the calibrating line on turntable, put the pressing plate back.
2.Put the rest gobos in as step one;
3.Remove pressing plate firstly, put the gobo face down in the turntable, make gobo upper position toward to the center of
turntable, make sure the calibrating point on gobo is aligning with the calibrating line on turnable, put the pressing plate back.
4.Put the rest gobos in as step one;
5.the calibrating line on turntable, put the pressing plate back.
6.Put the rest gobos in as step one;
Sharpness Adjust
Turn on the projector power, rotate the lens. When projection distance is long, shorten the lens till image clear; While
distance is short, lengthen the lens till image clear.
Remote control
PI 40/80/200/300
