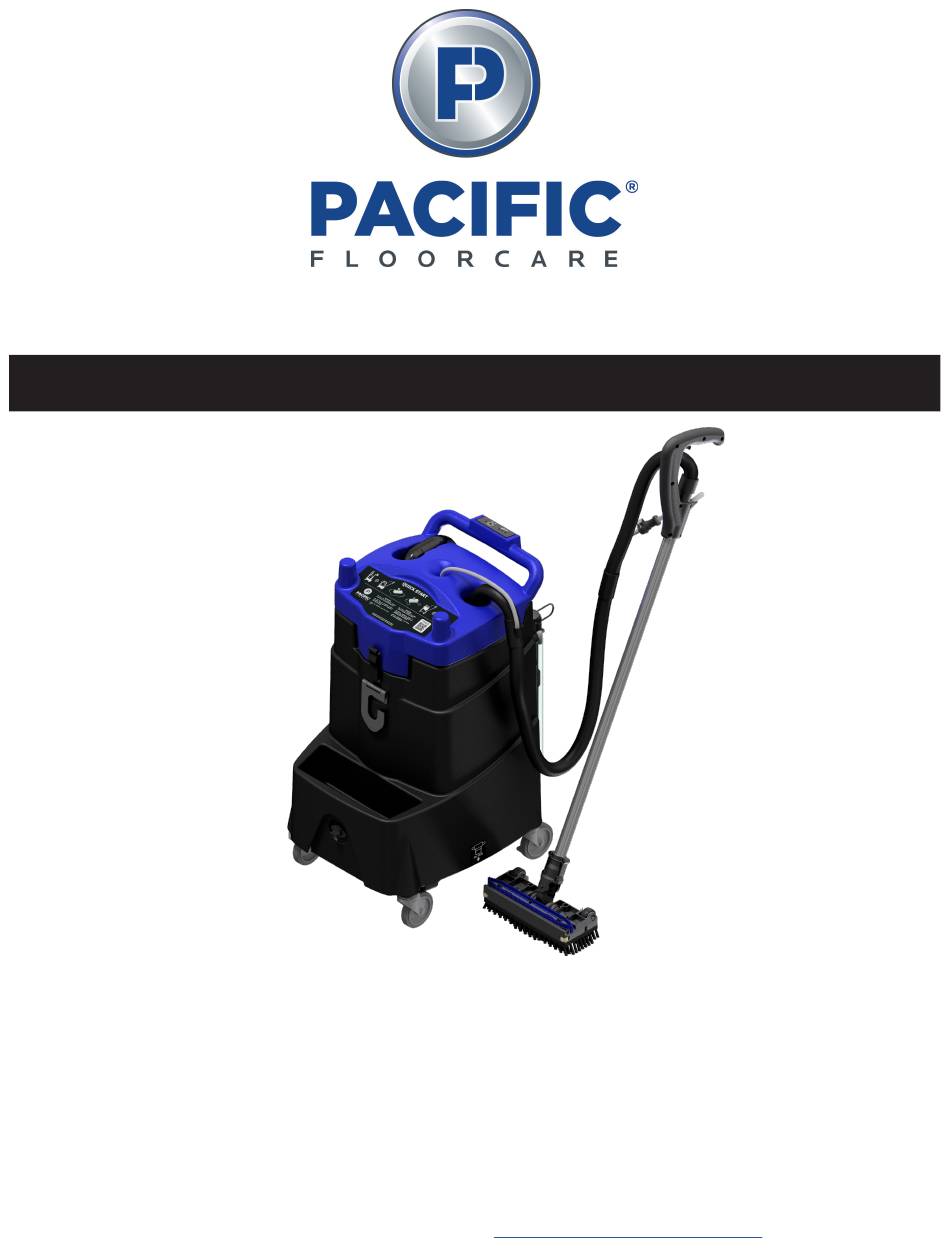

Pacific Floorcare QS-12 Manual

6 gallon quick scrub

Advertisement

Quick Links

Thank you for purchasing a Pacific Floorcare product. Carefully inspect all components for freight damage. If such damage
is discovered, file a "CONCEALED DAMAGE REPORT" immediately with the delivering carrier.
Read this manual carefully and keep it near the machine, protected from liquids and other damaging substances. Failure
to operate the QS-12 in accordance with the Safety Information provided in this manual may result in injury, damage to
property, damage to the machine, or premature failure of components. Read before use. Damage or equipment failure caused
The contents of this manual are based on the latest product information available at the time of publication. Pacific Floorcare
reserves the right to make changes or improvements without being obliged to apply changes to the machines previously sold.
New manuals can be downloaded from:
QS-12
QS-12
6 GALLON QUICK SCRUB
6 GALLON QUICK SCRUB
by improper use, abuse, or neglect is not covered under warranty.
www.pacificfloorcare.com/manuals

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QS-12 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pacific Floorcare QS-12

  • Page 1 Read this manual carefully and keep it near the machine, protected from liquids and other damaging substances. Failure to operate the QS-12 in accordance with the Safety Information provided in this manual may result in injury, damage to property, damage to the machine, or premature failure of components. Read before use. Damage or equipment failure caused by improper use, abuse, or neglect is not covered under warranty.
  • Page 2 6 GALLON QUICK SCRUB SPECIFICATIONS Features Specifications Model QS-12 Machine Specifications Length 24 in ( 61 cm) Width 19 in ( 48.3 cm) Height 36 in ( 91.4 cm) Weight w/ Std Batteries 110 lbs (49.9 kg) Weight w/ Opt’l Batteries 131 lbs (59.4 kg)
  • Page 3: Table Of Contents

    TABLE OF CONTENTS SAFETY INFORMATION ��������������������������������������������������������������������������������������������������������������������������������������1 MACHINE OVERVIEW �����������������������������������������������������������������������������������������������������������������������������������������3 OPERATION �������������������������������������������������������������������������������������������������������������������������������������������������������������4 INSPECTION & CLEANING ���������������������������������������������������������������������������������������������������������������������������������5 SQUEEGEE & BRUSH ASSEMBLY REPLACEMENT �������������������������������������������������������������������������������������6 BATTERY & CHARGING ��������������������������������������������������������������������������������������������������������������������������������������7 SOLUTION TANK & Q-CAPS™ CHEMICAL SYSTEM ����������������������������������������������������������������������������������8 RECOMMENDED MAINTENANCE ��������������������������������������������������������������������������������������������������������������������9 PARTS DIAGRAMS ����������������������������������������������������������������������������������������������������������������������������������������������� 11 FRAME ASSEMBLY ............................. 11 TANK ASSEMBLY ............................13 COVER ASSEMBLY ............................15 HANDLE ASSEMBLY ...........................17...
  • Page 4: Safety Information

    SAFETY INFORMATION This machine is intended for commercial use. Only use recommended pads or brushes and commercially approved floor cleaning chemicals intended for the application. WARNING: A potentially hazardous situation that, if not avoided, could result in death or serious injury� CAUTION: A potentially hazardous situation that, if not avoided, could result in moderate injury or serious property damage�...
  • Page 5 PAGE INTENTIONALLY BLANK...
  • Page 6: Machine Overview

    MACHINE OVERVIEW A. TANK ASSEMBLY L. SQUEEGEE ASSEMBLY B. SCRUB BRUSH STORAGE AREA DRAIN M. DUAL VACUUM-SOLUTION HOSE C. SCRUB BRUSH STORAGE AREA N. OPERATOR CONTROL PANEL D. FRONT SOLUTION TANK FILL PORT O. BATTERY CHARGER CORD STORAGE E. Q-CAPS™ CHEMICAL SYSTEM P.
  • Page 7: Operation

    Prior to use, ensure the battery has been sufficiently charged. The machine should be plugged in for charging any time the machine is not in use. The QS-12 is not designed to pick up large particles. Sweep and remove any large debris from the area to be cleaned before operation.
  • Page 8: Inspection & Cleaning

    INSPECTION & CLEANING Flushing the Solution Tank If a large amount of debris gets into the Solution Tank, it will be necessary to flush the tank. 1. Remove the Filter Bowl and Screen located on the bottom of the machine. 2.
  • Page 9: Squeegee & Brush Assembly Replacement

    Inspecting and Cleaning the Scrub Brush Assembly To ensure optimal performance, inspect and clean the Scrub Brush Assembly on a regular basis. 1. Check for excessive wear of the squeegee blades. 2. Replace worn scrub brushes or pads. SQUEEGEE & BRUSH ASSEMBLY REPLACEMENT The Squeegee and Brush assemblies can be removed by turning the two quarter-turn fasteners located in each assembly.
  • Page 10: Battery & Charging

    The status indicator is active whenever the Battery Charger is plugged in. C. The battery charger on the QS-12 should be plugged into to 120 VAC, 60 hz power whenever the unit is not in use.
  • Page 11: Solution Tank & Q-Caps™ Chemical System

    SOLUTION TANK & Q-CAPS™ CHEMICAL SYSTEM Filling the Solution Tank The Solution Tank can be filled through the front or rear fill ports. The front fill port is located under the Cover Assembly. The rear fill port is located above the Solution Tank Sight Tube and the Recovery Tank Drain Hose.
  • Page 12: Recommended Maintenance

    RECOMMENDED MAINTENANCE SYSTEM DAILY WEEKLY MONTHLY BI-ANNUALLY CONTROL PANEL INSPECT ALL CONTROLS AND HARDWARE FOR SECURITY & SERVICEABILITY VERIFY PROPER OPERATION OF ALL CONTROLS SOLUTION DISTRIBUTION VERIFY SOLUTION FLOW FLUSH TANK WITH FRESH WATER INSPECT SOLUTION SUPPLY HOSES FOR LEAKS SCRUB TOOL RINSE BRUSH/PADS RINSE &...
  • Page 13 PAGE INTENTIONALLY BLANK RETURN TO TABLE OF - 10 - CONTENTS...
  • Page 14: Parts Diagrams

    PARTS DIAGRAMS FRAME ASSEMBLY REAR RETURN TO TABLE OF CONTENTS...
  • Page 15 FRAME ASSEMBLY ITEM WEAR ITEM QTY PART NUMBER DESCRIPTION ITEM WEAR ITEM QTY PART NUMBER DESCRIPTION 803201 FRAME SCRUBBER S12 800802 BRACKET MTG VACUUM 801302 BATTERY 12V 61AH TPPL 964224 SCREW PHPS M5.5 X 16 ZINC PLASTIC 801301 BATTERY 12V 26AH TPPL 804102 HOSE VACUUM S12 809207...
  • Page 16: Tank Assembly

    TANK ASSEMBLY RETURN TO TABLE OF CONTENTS...
  • Page 17 TANK ASSEMBLY ITEM WEAR ITEM QTY PART NUMBER DESCRIPTION ITEM WEAR ITEM QTY PART NUMBER DESCRIPTION 808601 TANK SOLUTION S12 843319 FILTER, SCREEN, BOWL 962230 SCREW BHCS 8-32 X 0.5 SS BL 1.63” 224130 TUBE SIGHT .50 ID 980083 WASHER SPLIT LOCK #8 SS 873308 FITTING, TEE, 0.50 INCH 809402...
  • Page 18: Cover Assembly

    COVER ASSEMBLY RETURN TO TABLE OF CONTENTS...
  • Page 19 920705 NUT 1.25 NPT PLASTIC 805008 KIT DUAL HOSE REPL 920667 NUT NYLOCK 10-32 SS BL W401D WASHER, FLAT, #10 807003 CONTROLLER OPERATOR QS-12 898209 SPACER ACTUATOR PLASTIC 805102 LABEL CONTROL S12 807002 PANEL CONTROL S12 803410 GASKET CONTROL PANEL...
  • Page 20: Handle Assembly

    HANDLE ASSEMBLY RETURN TO TABLE OF CONTENTS...
  • Page 21 HANDLE ASSEMBLY ITEM WEAR ITEM QTY PART NUMBER DESCRIPTION 809001 TUBE HANDLE S12 805007 KIT HOSE QD ASSEMBLY REPL 803903 HANDLE TOOL QS-12 RH 920667 NUT HEX 10-32 NYLOCK SS BL 809206 TRIGGER SOLUTION QS-12 806401 PLATE MTG VALVE 809401...
  • Page 22: Scrub Head Assembly

    SCRUB HEAD ASSEMBLY RETURN TO TABLE OF CONTENTS...
  • Page 23 SCRUB HEAD ASSEMBLY ITEM WEAR ITEM QTY PART NUMBER DESCRIPTION 801304 BASE BRUSH S12 803407 GASKET S-12 HEAD AND HANDLE 801305 BASE SQUEEGEE S12 925013 PIN CLEVIS .313 X 1.5 SS 809702 WHEEL 1.63 OD .31 ID 925014 PIN COTTER .08 DIA. X 1.25 SS 962563 SCREW BHCS 10-32 X .63 SS BL 805004...
  • Page 24: Storage Caddy Assembly

    STORAGE CADDY ASSEMBLY (ONLY USED ON SELECT MODELS) RETURN TO TABLE OF CONTENTS...
  • Page 25 STORAGE CADDY ASSEMBLY (ONLY USED ON SELECT MODELS) ITEM WEAR ITEM QTY PART NUMBER DESCRIPTION 809203 TRAY ACCESSORY S12 962439 SCREW SHLDR .31 DIA X .13 .25-20 BL 920011 NUT HEX .25-20 NYLOCK ZINC * STORAGE CADDY ASSEMBLY CAN BE ORDERED AS AN AFTERMARKET ACCESSORY UNDER PART NUMBER 805011.
  • Page 26: Adjustable Handle Assembly

    ADJUSTABLE HANDLE ASSEMBLY (AFTERMARKET ACCESSORY) RETURN TO TABLE OF CONTENTS...
  • Page 27 ADJUSTABLE HANDLE ASSEMBLY (AFTERMARKET ACCESSORY) ITEM WEAR ITEM QTY PART NUMBER DESCRIPTION 803902 HANDLE CENTER ADJ 805003 KNOB THREADED .25-20 962146 SCREW PHPS 10-32 X 1.5 ZINC 920665 NUT HEX .25-20 NYLOCK SS 920667 NUT HEX 10-32 NYLOCK SS BL W104D WASHER, FLAT, .25 962221...
  • Page 28: Electrical System

    HARNESS POWER S12 POWER HARNESS BATTERY, PUMP, VAC MOTOR, BATTERY CHARGER TO MAIN HARNESS 897006 PUMP SOLUTION 24VDC SOLUTION SUPPLY MAIN HARNESS 807003 CONTROLLER OPERATOR QS-12 OPERATOR CONTROLS MAIN HARNESS 805201 MOTOR VACUUM 12VDC VACUUM MAIN HARNESS 802401 CHARGER 12V 13AMP...
  • Page 29: Electrical Diagram

    ELECTRICAL DIAGRAM Notes: 1. Wires 3 & 4 can be reversed without affecting function. 2. Wires 5 & 8 can be reversed without affecting function. 3. Wires 6 & 7 can be reversed without affecting function. 4. Diode polarity between wires 6 & 7 is critical. RETURN TO TABLE OF CONTENTS...
  • Page 30 REVISION REVISION LOG 6-5-2023 Product Launch 6-13-2023 Misc updates. RETURN TO TABLE OF - 27 - CONTENTS...
  • Page 31 PAGE INTENTIONALLY BLANK RETURN TO TABLE OF - 28 - CONTENTS...
  • Page 32 www.pacificfloorcare.com...
