FRAME IT ALL Inner Roboto 800002114 Installation Instructions

800002114, 800002114-AB1, 800002114-AB2
800003114, 800003114-AB1, 800003114-AB2
800004114, 800004114-AB1, 800004114-AB2
2 LEVELS
2 LEVEL KIT CONTAINS:
•
Composite Boards 4' x 26
•
Composite Boards 2' x 24
•
Composite Curved Boards x 12
•
Cut Composite Board (Gate) x 4
•
Stacking Brackets x 112
•
4-way Bracing Brackets x 8
•
L-Bracket x 4
•
Stakes x 60
•
Plugs x 196
•
Finishing Caps x 12
•
Adapter cap x 18
•
Animal barrier gate (4ft) x 2
•
Animal barrier Fencing x 56ft
•
Gate to Board Connector x 8
Recommended Tools:
- Hammer
- Power Drill
- Flathead Screwdriver
Trim stake spike with
hacksawfor use indoor
or on hard surfaces
Customer Service: 1800-914-9835 |
support@frameitall.com
© Frame It All. All Rights Reserved.

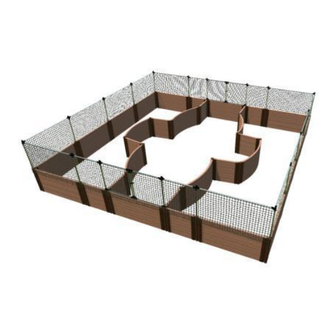

RAISED GARDEN BED
16' x 16' Inner Roboto
3 LEVEL KIT CONTAINS:
•
Composite Boards 4' x 38
•
Composite Boards 2' x 36
•
Composite Curved Boards x 18
•
Cut Composite Board (Gate) x 8
•
Stacking Brackets x 168
•
4-way Bracing Brackets x 8
•
L-Bracket x 8
•
Stakes x 90
•
Plugs x 264
•
Finishing Caps x 12
•
Adapter Cap x 18
•
Animal barrier gate (4ft) x 2
•
Animal barrier Fencing x 56ft
•
Gate to Board Connector x 8
•
Metal Gate Brace with Screws x 4
Layout your Boards along the borderline and connect each
Board together by inserting the top of the stake through the
bracket loops with the stake pointing to the sky. This enables
you to freely position your border to get your desired location.
FOR INDOOR & HARD SURFACE:
If you plan to assemble raised bed on a hard surface, use
hacksaw to remove the spike of each stake. Use these cut
down stakes for the base level only of your raised garden.

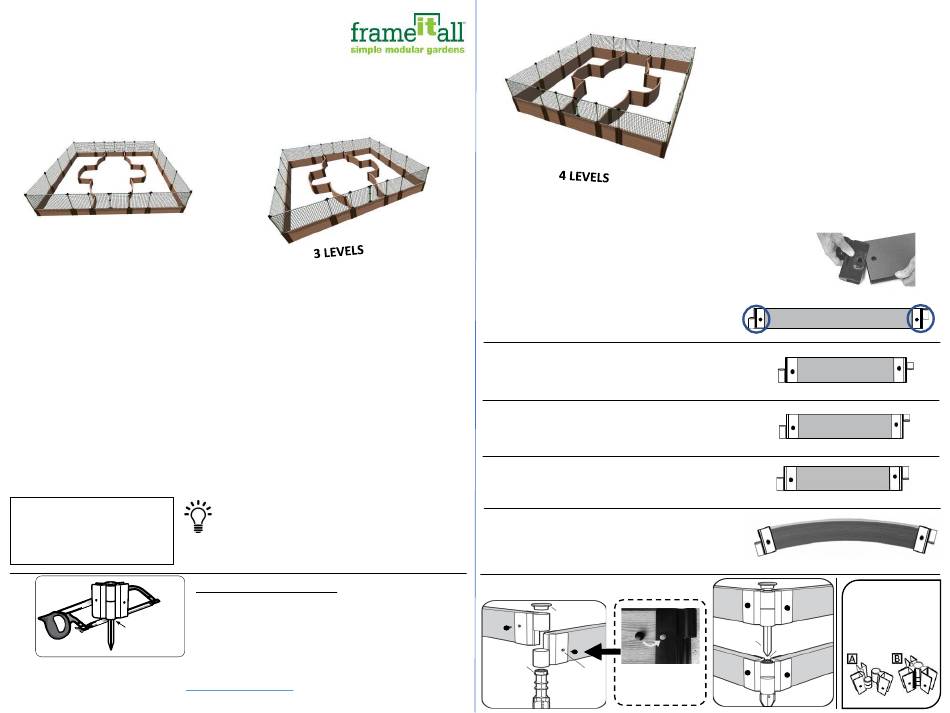

ASSEMBLY INSTRUCTIONS – Level 1
STEP 1:
Assemble the Boards by sliding one end of Board into channel end
of one of the brackets. Use plugs to cover the holes on both sides to
lock the bracket in place.
14
1. Connect x 4ft Boards with Stacking Brackets on
both ends in alternating orientation.
4
2. Connect x 2ft Boards with a stacking bracket on
one end and a mid-section 4-way bracket on the
other end in alternating orientation.
4
3. Connect x 2ft Boards with a stacking bracket on
one end and a top 4-way bracket on the other end
in alternating orientation.
4
4. Connect x 2ft Boards with stacking brackets on
both ends in alternating orientation.
6
5. Connect x Curved boards with stacking brackets
on both ends in alternating orientation .
(Bracket all curved boards exactly as shown to the right)
How the Joints Work
Use a Cap to
complete the
top level.
Use stacking
stakes for
ground level
frames and
Use plugs to
Use plugs (included)
stacking
cover the holes
additional levels.
– two plugs are to cover the holes on
required per
both side of Boards
bracket (1 on
each side)
4 LEVEL KIT CONTAINS:
•
Composite Boards 4' x 50
•
Composite Boards 2' x 48
•
Composite Curved Boards x 24
•
Cut Composite Board (Gate) x 12
•
Stacking Brackets x 224
•
4-way Bracing Brackets x 8
•
L-Bracket x 12
•
Stakes x 120
•
Plugs x 392
•
Finishing Caps x 12
•
Adapter Cap x 18
•
Animal barrier gate (4ft) x 2
•
Animal barrier Fencing x 56ft
•
Gate to Board connector x 8
•
Metal Gate Brace with Screws x 8
1
2
3
4
5
3-Way Connection:
Combine a top 4-way
bracket, mid-section 4-
way bracket and
Use stacking
Stacking stake fit
stake when
into the tops other
stacking bracket.
creating a
Stacking stakes
multi-level
