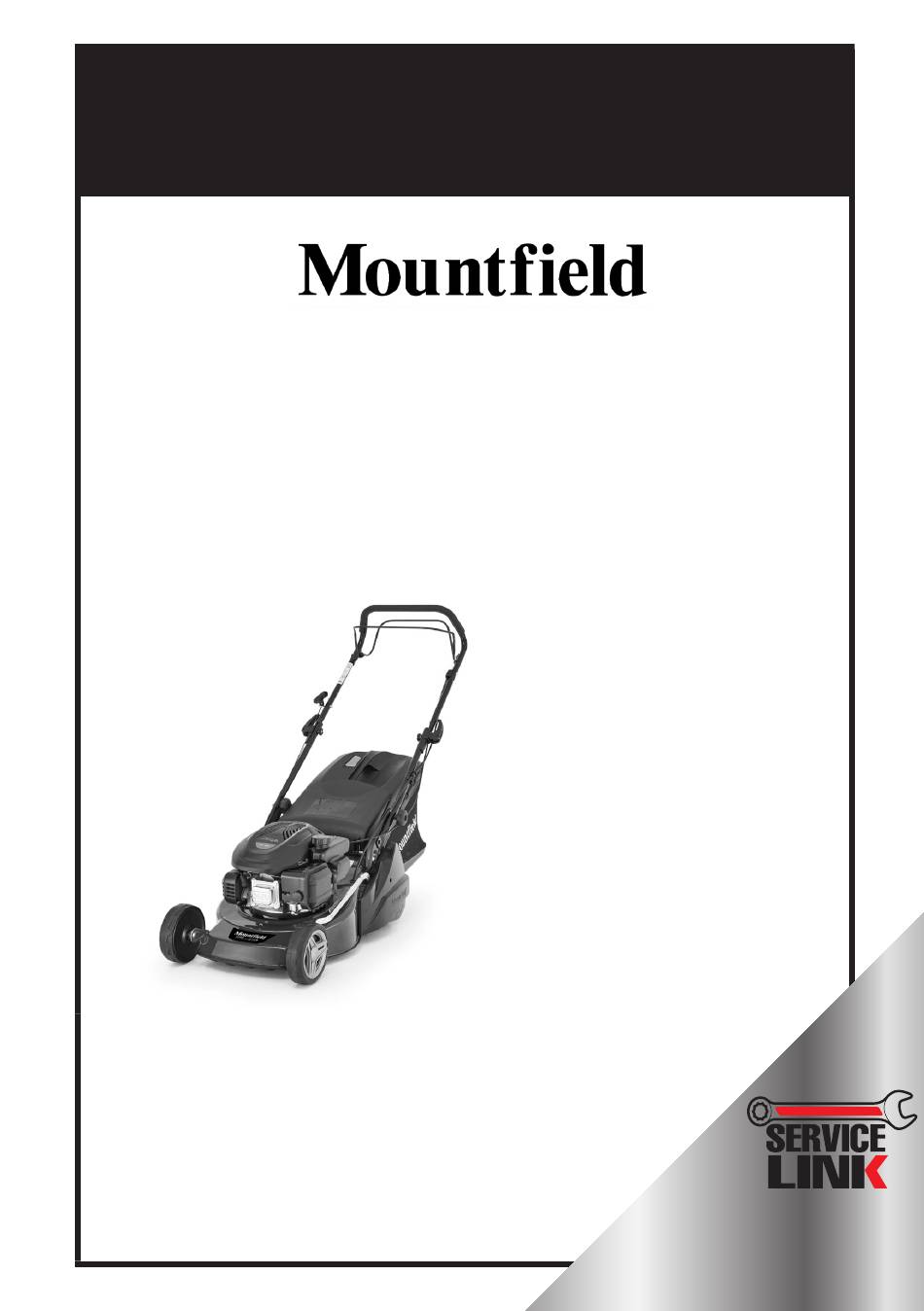

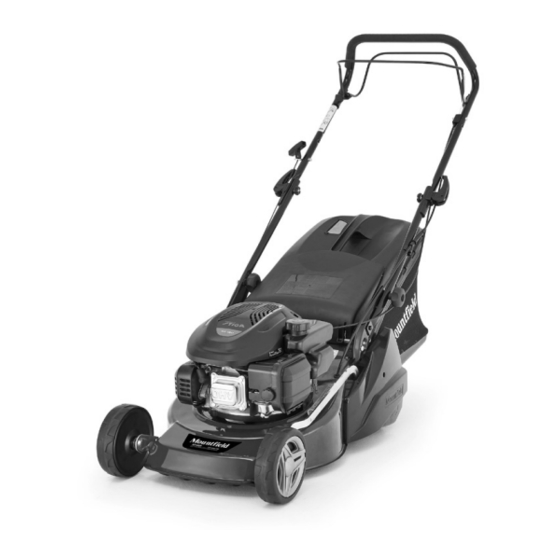

Please Read These Instructions
Before Using Your Mower
Operating Instructions
for model
SP160 R Lawnmower
with ST 120 OHV engine
Product Code:
299439043/MC
Do not return this product to store, please call
Supported by
the Service Link Helpline
Products with petrol in cannot be returned
to store
For all your Warranty,
Parts and Service needs
0800 121 6585
1
1800 806 149 ROI
Visit www.servicelink.org.uk for a quick start video
www.servicelink.org.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mountfield SP160 R
Summary of Contents for Mountfield SP160 R
- Page 1 Please Read These Instructions Before Using Your Mower Operating Instructions for model SP160 R Lawnmower with ST 120 OHV engine Product Code: 299439043/MC Do not return this product to store, please call Supported by the Service Link Helpline Products with petrol in cannot be returned...
- Page 2 ENGLISH - Translation of the original instruction ..............ITALIANO - Istruzioni Originali ....................
- Page 3 14 15 11 13 12 NTL 434-R, NTL 434 TR-R �61� 2,75 ÷ 2800±100 ÷ �62� 2900±100 �63� 31 - 33 �64� �65� dB(A) �66� dB(A) 1,37 �67� dB(A) �66� dB(A) �68� dB(A) ...
- Page 4 5-7 mm...
- Page 5 3.2a 3.2b...
- Page 6 3.2b...
-
Page 7: Getting To Know The Machine
IMPORTANT - READ CAREFULLY BEFORE USING THE MACHINE. Keep for future reference below. You are also asked to carefully read the safety regulations in the GETTING TO KNOW THE MACHINE specific chapter of this manual. Replace damaged or unreadable labels (see pictures on page 2). DESCRIPTION OF THE MACHINE AND ITS RANGE OF USE 41. - Page 8 – if the lawnmower begins to vibrate abnormally (Immediately look for the 1. COMPLETE ASSEMBLY cause of the vibrations and take it to a Mountfield Authorised Service Dealer for necessary inspections). 22) Stop the engine: NOTE - The number which precedes each paragraph links the –...
-
Page 9: Control Description
IMPORTANT - The blade must stop within a few seconds of when the lever is released; if you notice that more time is required for it to WAIT UNTIL THE CUTTING MEANS STOPS before proceeding any stop, contact a Mountfield Authorised Service Dealer immediately. further. 2.3 Drive lever (if provided) 3.6 Lawn care recommendation... -
Page 10: Environmental Protection
6. DIAGNOSTIC 4.1 Blade maintenance Each adjustment made to the blade is best carried out at a Mountfield au- thorised service dealer that has the most appropriate tools. What to do when ... Only blades with code shown in the table on page 2. Given product evolution, the above mentioned blades may be replaced in... -
Page 11: Conoscere La Macchina
IMPORTANTE - LEGGERE ATTENTAMENTE PRIMA DI USARE LA MACCHINA. Conservare per ogni futura necessità con prudenza. A tale scopo, sulla macchina sono stati posti dei pittogrammi, CONOSCERE LA MACCHINA destinati a ricordarvi le principali precauzioni d’uso. Il loro significato è spiegato qui di seguito. -
Page 12: Durante L'utilizzo
- la leva di sicurezza deve avere un movimento libero, non forzato e al rila- della macchina, indossare cuffie antirumore, effettuare delle pause durante scio deve tornare automaticamente e rapidamente nella posizione nautra il lavoro. determinando l’arresto del dispositivo di taglio; - dell’aspetto delle lame, e controllare che le viti e il gruppo di taglio non D) MANUTENZIONE E MAGAZZINAGGIO siano usurati o danneggiati. -
Page 13: Descrizione Dei Comandi
manopole inferiori (3). Tirare la leva del freno del dispositivo di taglio (1) contro il manico e dare un Fissare la parte superiore del manico (4) a quelle inferiori (2) utilizzando le deciso strappo dalla manopola della fune di avviamento (2). maniglie (5) come indicate nella figura. • Modelli con avviamento elettrico a chiave Le ghiere (6) delle maniglie (5) devono essere evvitate in modo da as- Tirare la leva del freno del dispositivo di taglio (1) contro il manico e ruotare sicurare un fissaggio stabile del manico (4), senza richiedere uno sforzo ... -
Page 14: Manutenzione Ordinaria
4. MANUTENZIONE ORDINARIA nell’ambiente, ma rivolgersi a un centro di raccolta, secondo le norme locali vigenti. IMPORTANTE - La manutenzione regolare e accurata è indispensabile per mantenere nel tempo i livelli di sicurezza e le prestazioni originali della 6. DIAGNOSTICA macchina. Ogni operazione di regolazione o manutenzione deve essere eseguita a Cosa fare se ... - Page 15 This product is supported by Service Link. If you have been unable to find the information you require above please call the Service Link helpline. Here you will find 1-2-1 help and advice from HELPLINE garden machinery repair specialists. 0800 121 6585 1800 806 149 ROI or visit www.servicelink.org.uk...
-
Page 16: Certificate Of Conformity
CERTIFICATE OF CONFORMITY A certificate of conformity is enclosed with the documentation as a separate document. An EXAMPLE is shown below. DICHIARAZIONE CE DI CONFORMITÁ (Istruzioni Originali) FR (Traduction de la notice originale) EN (Translation of the original instruction) DE (Übersetzung der Originalbetriebsanleitung) (Direttiva Macchine 2006/42/CE, Allegato II, parte A) Déclaration CE de Conformité... - Page 17 Mountfield authorised service dealers. This guarantee is subject to the following terms; • This guarantee is not transferable. An original proof of purchase will be required in the event of a claim.
- Page 18 STIGA LTD Unit 8, Bluewater Estate, Bell Close, Plympton, Plymouth, Devon, PL7 4JH, England. manufactured by ST. S.p.A. Via del Lavoro, 6 I-31033 Castelfranco Veneto (TV) Italy Part Number 171506345/0...
