HIOTH TECHNOLOGY CT-LCWF5003-CP Installation Instructions

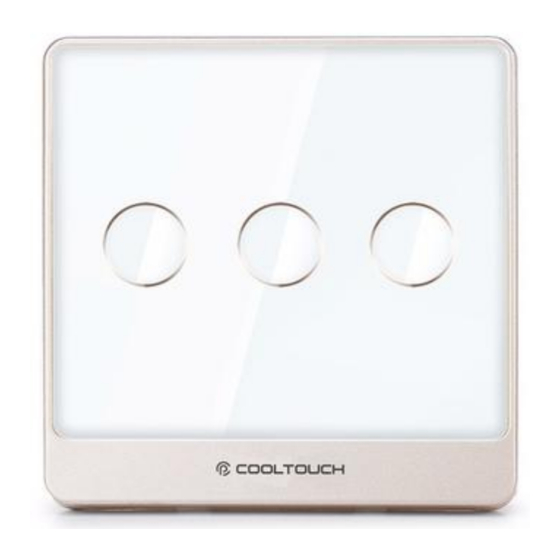

3-pole touch panel switch
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

3-Pole Touch Panel Switch
3-Pole Touch switches support remote and local control and instant status present. It is mainly
used for lighting control which can be applied for general lights and directly replaced the ordinary
wall switch.
Support local and remote control
Sensitive touch sensing with instant action
Achieve timing, linkage, scenarios and other functions
1.
Power supply：neutral and live wire;
2.
Applicable voltage：AC 90~250V 50/60HZ;
3.
Signal distance：Double/multi-line length≦100m;
4.
Wireless protocol：Wi-Fi;
5.
Rated power per circuit：resistive load 1000W (e.g. incandescent)
6.
Inductive/capacitive load：200W/circuit (LED /energy-saving/halogen lights, etc.)
HIOTH TECHNOLOGY CO., LTD.
CT-LCWF5003-CP

Introduction

Feature

Specification

www.HiotH.com
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT-LCWF5003-CP and is the answer not in the manual?

Questions and answers

Related Manuals for HIOTH TECHNOLOGY CT-LCWF5003-CP

Summary of Contents for HIOTH TECHNOLOGY CT-LCWF5003-CP

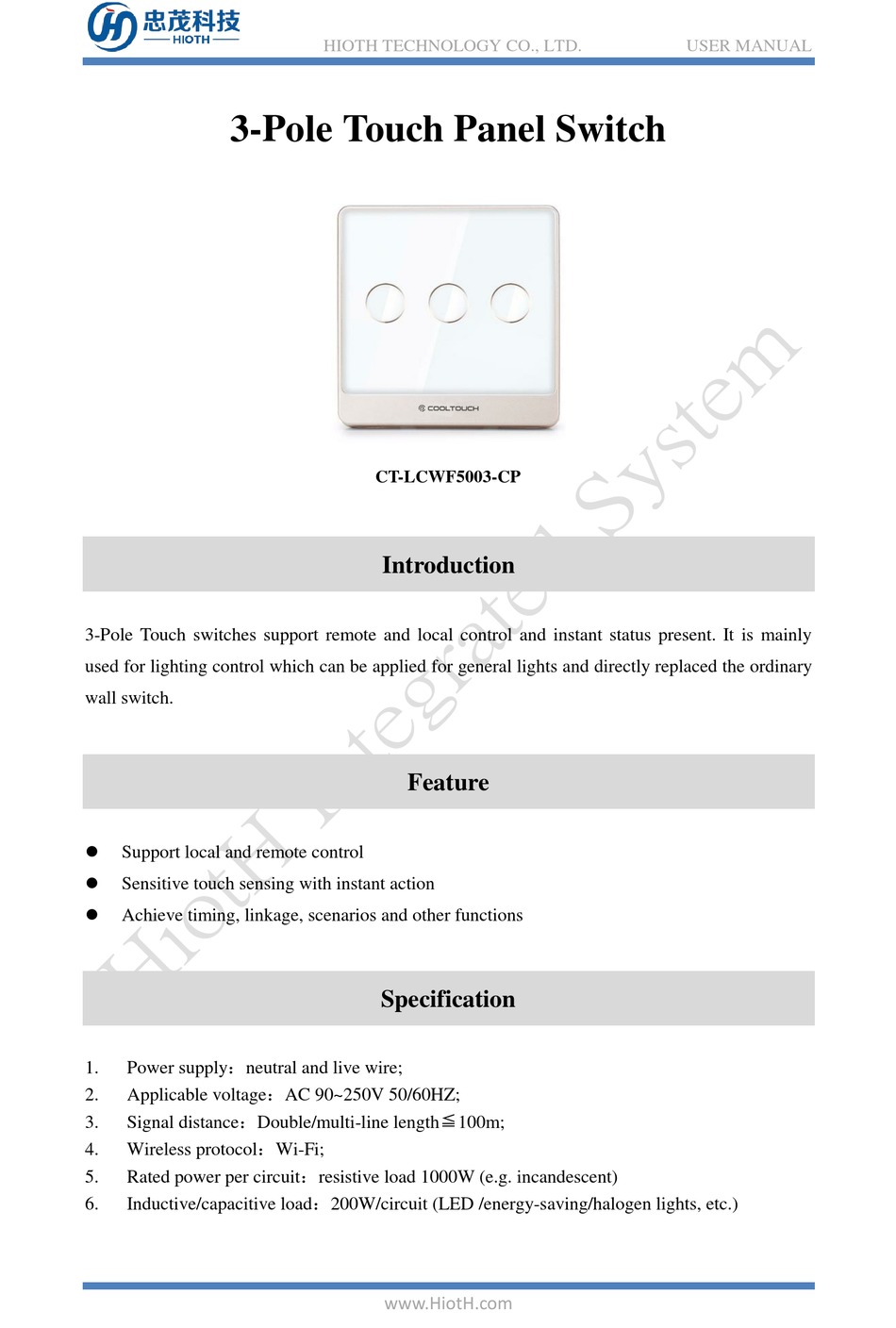

  • Page 1 HIOTH TECHNOLOGY CO., LTD. USER MANUAL 3-Pole Touch Panel Switch CT-LCWF5003-CP Introduction 3-Pole Touch switches support remote and local control and instant status present. It is mainly used for lighting control which can be applied for general lights and directly replaced the ordinary wall switch.
  • Page 2 HIOTH TECHNOLOGY CO., LTD. USER MANUAL Installation Instruction Touch Panel Switch Installation CAUTION: Cut off power supply at circuit breaker or fuse before installation to avoid fire, shock or death! 1） As shown in Fig.1, using the screwdriver to pry the gaps on the side of the switch to open the panel.
  • Page 3 HIOTH TECHNOLOGY CO., LTD. USER MANUAL INSTALL THE SWITCH BASE As shown in Fig.3, install the touch switch inside the wall box after wiring, then screw up to make it fixed on the wall. Put the base to the wall as well as cover and press the touch panel.
  • Page 4 HIOTH TECHNOLOGY CO., LTD. USER MANUAL Safety Notice 1） Do not install this product when power is applied! 2） Installers need to know a certain electrical wiring diagram and has the sense of security. 3） Before installation, please confirm the real voltage complying with the device’s specification.
