Touch Panel Switch is mainly used for lighting control and suitable for general lights as well as
energy saving lights. This Z-Wave product is compatible with HiotH system which supports local
and remote status check and conttol as well as combines with other devices to do more settings
such as scenarios, linkage control.
The touch panel switch has a beautiful and concise appearance and for the US regulatory dimen-
sion and can be directly replaced the ordinary wall switch to reduce the cost and time of rewiring.
Local touch panel and mobile terminal control
Replace the traditional switch, retain the original lights
Combined with other devices to set more controls
HIOTH TECHNOLOGY CO., LTD.
Touch Panel Switch
CT-LCZW5025-MH
CT-LCZW5026-MH
CT-LCZW5027-MH
Introduction
Technical Information
www.HiotH.com
USER MANUAL
Advertisement
Table of Contents
Related Manuals for HIOTH TECHNOLOGY CT-LCZW5026-MH
Summary of Contents for HIOTH TECHNOLOGY CT-LCZW5026-MH
-
Page 1: Technical Information

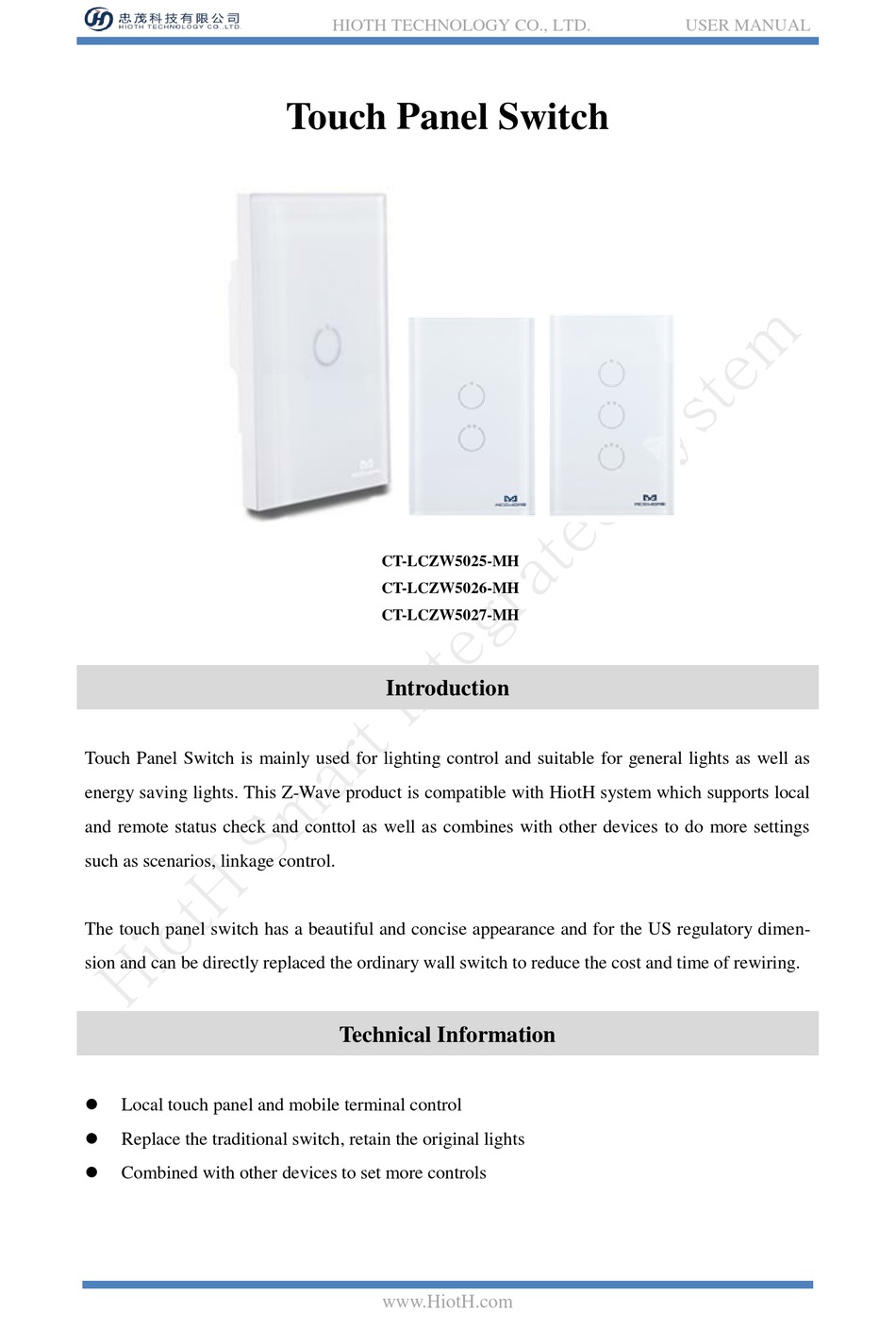

HIOTH TECHNOLOGY CO., LTD. USER MANUAL Touch Panel Switch CT-LCZW5025-MH CT-LCZW5026-MH CT-LCZW5027-MH Introduction Touch Panel Switch is mainly used for lighting control and suitable for general lights as well as energy saving lights. This Z-Wave product is compatible with HiotH system which supports local and remote status check and conttol as well as combines with other devices to do more settings such as scenarios, linkage control. -
Page 2: Specifications
HIOTH TECHNOLOGY CO., LTD. USER MANUAL Specifications Radio protocol: Z-Wave Radio Frequency: 908.42MHz Power supply: 85 V-260V AC Maximum load: maximum load 1 road, every road load 5A Installation method: wall-mounted (standard American box installation) Dimension: 120mm × 75mm × 38mm... - Page 3 HIOTH TECHNOLOGY CO., LTD. USER MANUAL Notes for the diagram: L- terminal for live lead N- terminal for neutral lead -output terminal of load (controlling connected lighting device, or other load) INSTALL THE SWITCH BASE As shown in Fig.3, install the touch switch inside the wall box after wiring, then screw up to make it fixed on the wall.
-
Page 4: Safety Notice
HIOTH TECHNOLOGY CO., LTD. USER MANUAL When prompt a message “Request Access Success”, please go to the device list interface, and refresh the device list, the device will be displayed. NETWORK KICKOUT Make sure the device is connected to the power supply.
