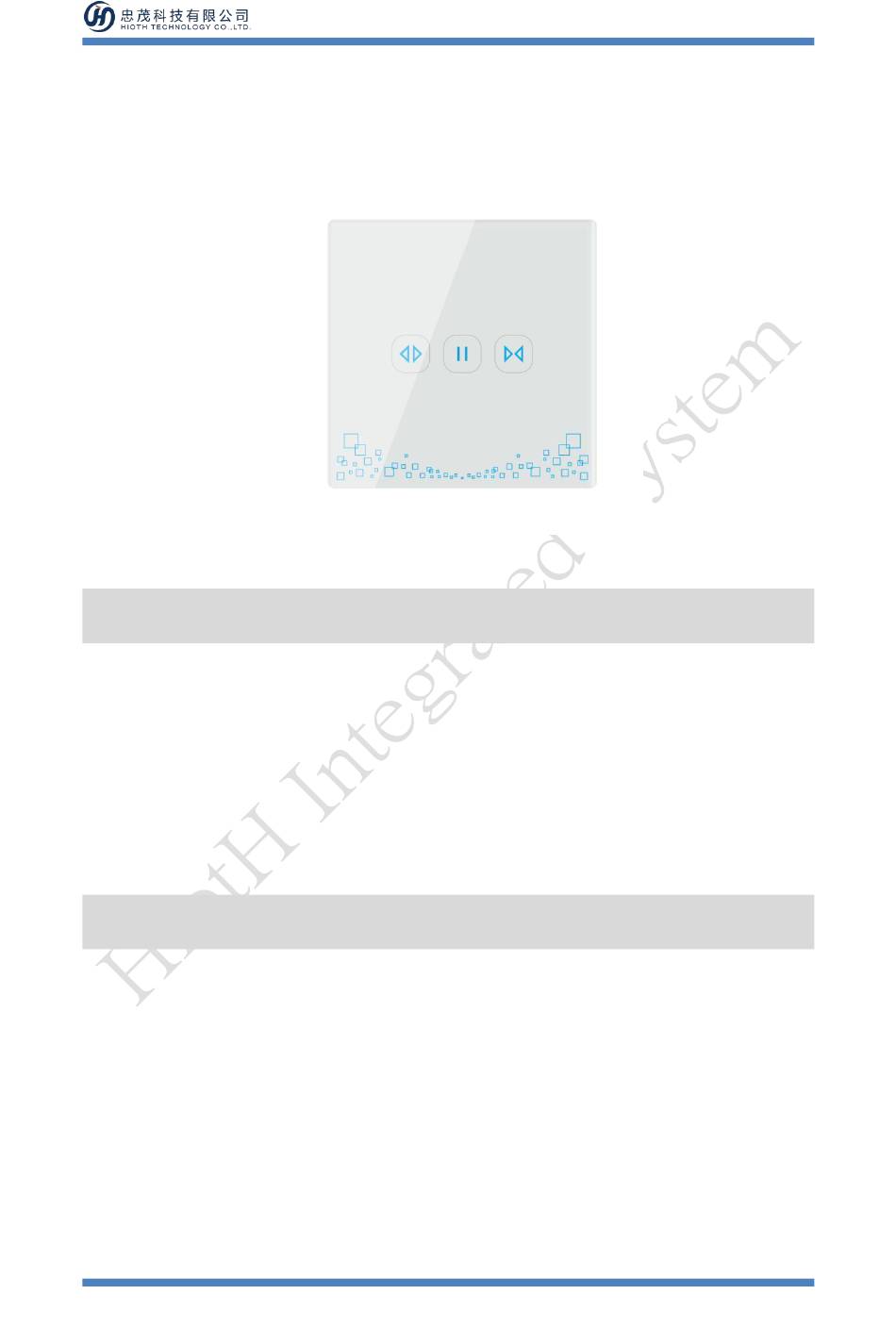

The Curtain Switch is a wall switch with built-in ZigBee module which has the advantages of
low power consumption, low data rate and low complexity of wireless network technology, also
has a high reliability and stability. It also support local and remote control, touch panel and mobile
control, which can carry out remote monitoring, to make people's lives more convenient.
Support local and remote control;
Two-way control, user can custom the track and motor;
Use with temperature, humidity or illuminance detector to keep a comfortable environment.
HIOTH TECHNOLOGY CO., LTD.
Curtain Switch
CT-HAZB1010-SHB
Introduction
Feature
www.HiotH.com
USER MANUAL
Advertisement
Table of Contents
Related Manuals for HIOTH TECHNOLOGY CT-HAZB1010-SHB
Summary of Contents for HIOTH TECHNOLOGY CT-HAZB1010-SHB
- Page 1 HIOTH TECHNOLOGY CO., LTD. USER MANUAL Curtain Switch CT-HAZB1010-SHB Introduction The Curtain Switch is a wall switch with built-in ZigBee module which has the advantages of low power consumption, low data rate and low complexity of wireless network technology, also has a high reliability and stability.
- Page 2 HIOTH TECHNOLOGY CO., LTD. USER MANUAL Specification Wireless protocol：ZigBee（IEEE 802.15.4） Power supply：220V AC 50/60 Hz Maximum load：800W/resistive load Panel material：High quality tempered glass Load type：Electric curtains / shutter doors / garage doors / tubular motors ...
- Page 3 HIOTH TECHNOLOGY CO., LTD. USER MANUAL Fig.2 NOTES FOR THE DIAGRAM: L - Terminal for 220V live lead N - Terminal for 220V neutral lead 4 lines motor - M1L1 for the brown line, M1L2 for the black, neutral line for the blue (public).
- Page 4 HIOTH TECHNOLOGY CO., LTD. USER MANUAL Using Instruction As shown in fig. 4, there is a RESET button and a Network Status Indicated LED on the penal. Network Status RESET Indicated LED Fig.4 NETWORK ENTRY Connect the power supply. Long press the Reset button for 5 second.
- Page 5 HIOTH TECHNOLOGY CO., LTD. USER MANUAL Safety Notice A qualified electrician with the understanding of wiring diagrams and knowledge of electrical safety should complete installation following the instructions. Before installation, please confirm the real voltage complying with the device’s specification. Cut off any power supply to secure the safety of people and device.
