SERVICE MANUAL
Ver. 1.0 2006. 12
• SA-iP001P is active subwoofer in CPF-iP001.
SPECIFICATIONS
Continuous RMS power output (reference):
Speaker units:
Dimensions (w/h/d):
Mass:
Operating temperature:
Power requirements:
Design and specifications are subject to change
without notice.
Sony Corporation
9-887-493-01
Home Audio Division
2006L02-1
© 2006.12
Published by Sony Techno Create Corporation
15 W (100 Hz, 10% THD)
7
70 mm (2
/
in) dia.
8
Approx. 218 × 74 × 131 mm
× 3 × 5
(8
5
/
1
/
in), incl.
8
4
projecting parts
Approx. 1.3 kg (2 lb 14 oz)
10°C to 35°C (50°F to 95°F)
AC 120 V , 18W, 50/60Hz
(US, CND)
AC 220 V - 240 V,
18 W, 50/60 Hz
(AEP, UK)
(DC OUT: 12 V, 1.0 A)
SA-iP001P
Canadian Model
TABLE OF CONTENTS
1.
................................................................... 2
2.
................................................................. 3
2-1. Block Diagram ................................................................ 4
2-2. Printed Wiring Board - POWER Board (Side A) - ....... 5
2-3. Printed Wiring Board - POWER Board (Side B) - ....... 6
2-4. Schematic Diagram - POWER Board (1/2) - ................ 7
2-5. Schematic Diagram - POWER Board (2/2) - ................ 8
3.
................................................. 9
4.
CRADLE AUDIO SUBWOOFER
US Model
AEP Model
UK Model
.................................. 10
Advertisement
Table of Contents
Related Manuals for Sony SA-iP001P
Summary of Contents for Sony SA-iP001P
-
Page 1: Table Of Contents
SA-iP001P SERVICE MANUAL US Model Canadian Model Ver. 1.0 2006. 12 AEP Model UK Model • SA-iP001P is active subwoofer in CPF-iP001. SPECIFICATIONS TABLE OF CONTENTS Continuous RMS power output (reference): GENERAL ..............2 15 W (100 Hz, 10% THD) DIAGRAMS .............. -
Page 2: General
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT Earth Ground CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY Fig. A. Using an AC voltmeter to check AC leakage. DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY. -
Page 3: Diagrams
SA-iP001P SECTION 2 DIAGRAMS • Note for Printed Wiring Boards and Schematic Diagrams IC802 CXD9788AR Note on Printed Wiring Boards. Note on Schematic Diagrams. • All capacitors are in µF unless otherwise noted. (p: pF) • X : parts extracted from the component side. -
Page 4: 2-1. Block Diagram
SA-iP001P 2-1. BLOCK DIAGRAM IC803 POWER DRIVER SDOUT 31 DATA OUT1 2 PWMBP OUTB SUB WOOFER OLRCK 29 LRCK OUT2 17 PWMAP OU TA OSCLK 30 BCK 4 RESET RMCK 36 XFSI_IN IC802 S-MASTER PROCESSOR Q802, 803 Q801 X801 PROTECT OVER LOAD 49.152MHZ... -
Page 5: Printed Wiring Board - Power Board (Side A)
SA-iP001P 2-2. PRINTED WIRING BOARD – POWER BOARD (SIDE A) – :Uses unleaded solder. SUB WOOFER POWER BOARD (SIDE A) • Semiconductor Location Ref. No. Location D701 D903 D904 IC701 IC704 IC801 IC802 IC803 IC804 IC805 IC806 Q701 1-869-196- (12) -
Page 6: Printed Wiring Board - Power Board (Side B)
SA-iP001P 2-3. PRINTED WIRING BOARD – POWER BOARD (SIDE B) – :Uses unleaded solder. S901 AC IN POWER BOARD (SIDE B) • Semiconductor Location Ref. No. Location D801 D802 D805 D901 D902 D905 T901 D906 POWER TRANSFORMER D907 D908 D909... -
Page 7: Schematic Diagram - Power Board (1/2)
SA-iP001P 2-4. SCHEMATIC DIAGRAM – POWER BOARD (1/2) – • See page 3 for Waveforms. SA-iP001P... -
Page 8: Schematic Diagram - Power Board (2/2)
SA-iP001P • See page 3 for Waveforms. • See page 3 for IC Block Diagrams. 2-5. SCHEMATIC DIAGRAM – POWER BOARD (2/2) – IC B/D IC B/D IC B/D IC B/D SA-iP001P... -
Page 9: Exploded Views
SA-iP001P SECTION 3 EXPLODED VIEWS NOTE: The components identified by • -XX and -X mean standardized parts, so they • Accessories are given in the last of the mark 0 or dotted line with mark electrical parts list. may have some difference from the original 0 are critical for safety. -
Page 10: Electrical Parts List
SA-iP001P SECTION 4 POWER ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the • SEMICONDUCTORS In each case, u: µ, for example: The components identified by parts list may be different from the parts uA... : µA... uPA... : µPA... - Page 11 SA-iP001P POWER Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark CN902 1-564-320-00 PIN, CONNECTOR (3.96mm PITCH) 2P R705 1-216-845-11 METAL CHIP 100K 1/10W < DIODE > R706 1-216-841-11 METAL CHIP 1/10W R707 1-216-833-11 METAL CHIP 1/10W...
- Page 12 SA-iP001P POWER Ref. No. Part No. Description Remark R856 1-216-845-11 METAL CHIP 100K 1/10W R857 1-216-845-11 METAL CHIP 100K 1/10W R858 1-216-845-11 METAL CHIP 100K 1/10W R859 1-216-833-11 METAL CHIP 1/10W R860 1-216-845-11 METAL CHIP 100K 1/10W R861 1-216-833-11 METAL CHIP...
- Page 13 SA-iP001P MEMO...
- Page 14 SA-iP001P REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision...
Need help?
Do you have a question about the SA-iP001P and is the answer not in the manual?
Questions and answers

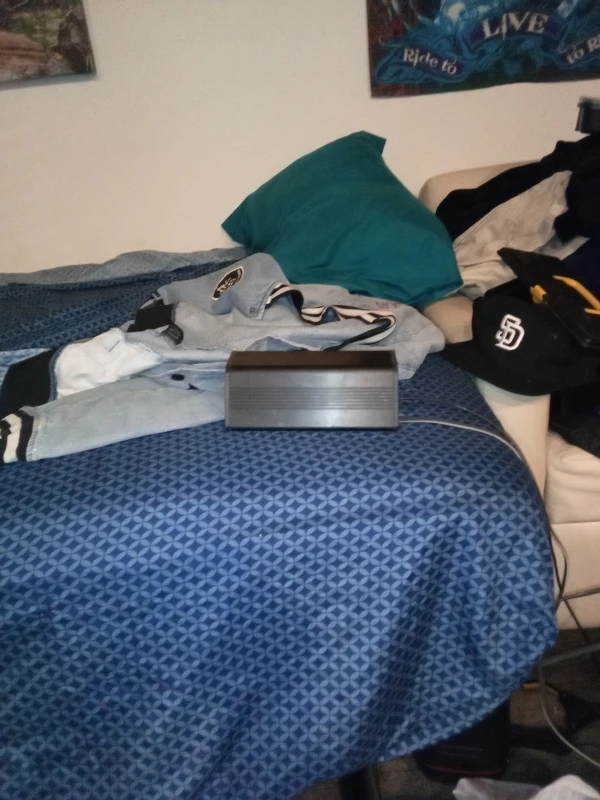

How can operate this subwoofer
