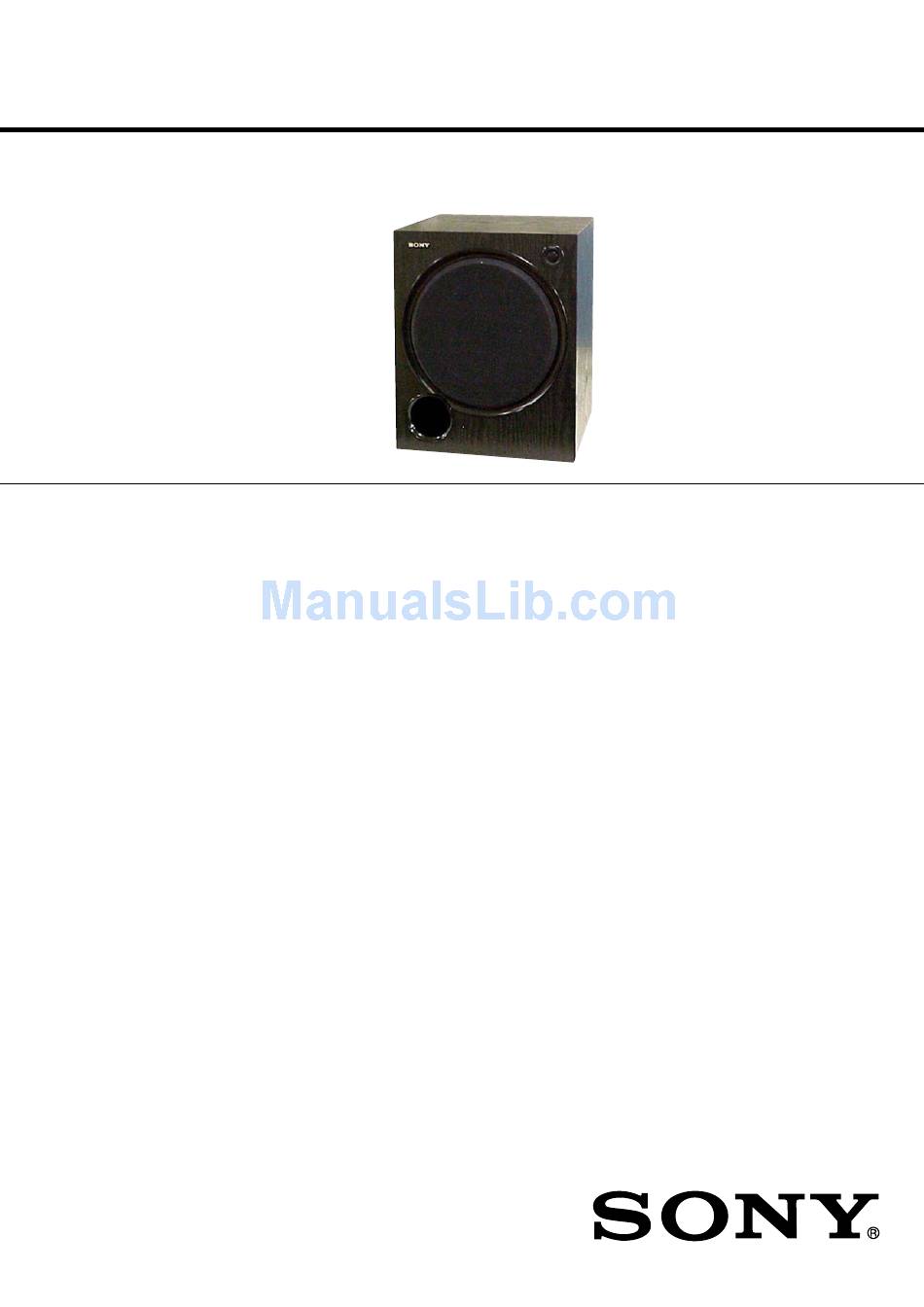

SERVICE MANUAL
Ver. 1.0 2005.05
• SA-WMSP69 is the subwoofer section
in HT-6900DP/9900M.
Sony Corporation
9-879-650-01
Audio Group
2005E04-1
Published by Sony Engineering Corporation
© 2005.05

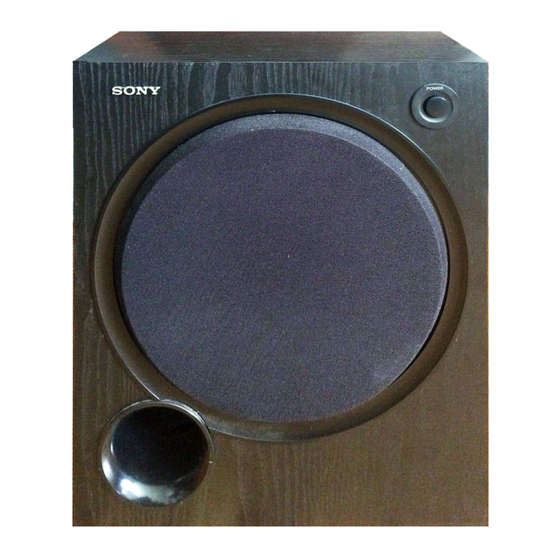

SA-WMSP69
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
With 6 ohm loads, from 28 – 200 Hz; rated 120
watts, minimum RMS power, with no more than
0.8% total harmonic distortion from 250
milliwatts to rated output.
Speaker system
Active subwoofer,
magnetically shielded
Speaker unit
250 mm cone type
Enclosure type
Acoustically loaded bass
reflex
RMS output
160 W (6 ohms, 100 Hz,
THD 10%)
Input
LINE IN (input pin jacks)
Power requirements
120 V AC, 60 Hz
Power consumption
120 W
Dimensions (w/h/d) (Approx.)
337 × 410 × 366 mm
(13
× 16
1/4
including front panel
Mass (Approx.)
13.0 kg (28 lb 11 oz)
Design and specifications are subject to change without
notice.
× 14
inches)
1/8
1/2
US Model
SUB WOOFER
