Summary of Contents for Promovec BUTCHER

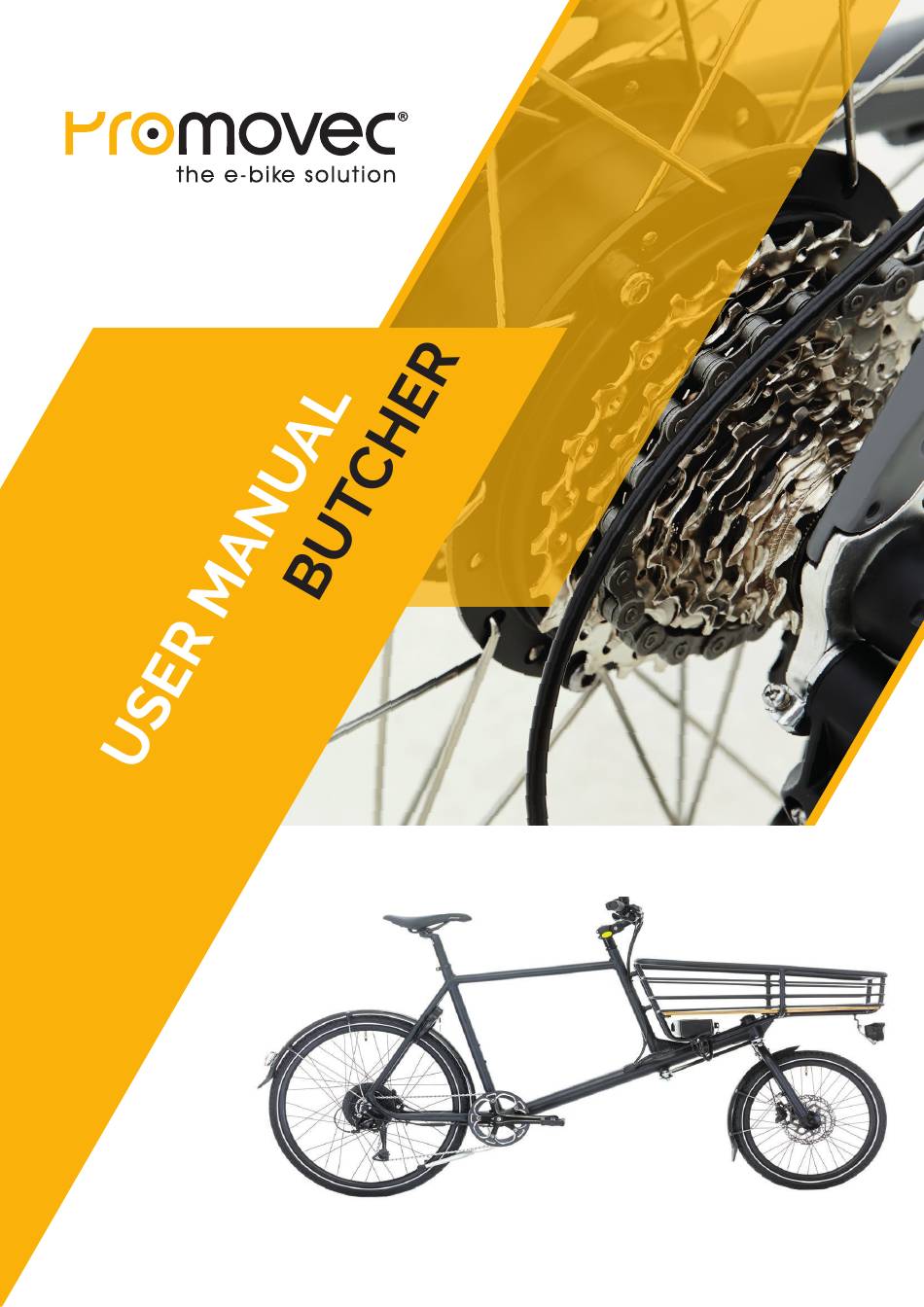

- Page 1 Feb. 2020...
-
Page 3: Table Of Contents
Tabel of contents Introduction ................... Product description ................. How to get started ................Display - Connect+ ................Assist functions .................. Extended features by mobil App .......... Connecting new devices ............Troubleshooting ................. Tire size settings ................Youtube learning videos .............. Battery - mounting/dismounting ......... -
Page 4: Introduction
Your e-bike is produced according to the guidelines in European standard: EPAC EN 15194:2017. BUTCHER is the perfect choice if you want an electric bike that can be used for varied purposes, as the bike is suitable for driving in both flat and hilly terrain. -
Page 5: How To Get Started
How to get started When the battery is installed, the system can be powered on by using the on/off button on the display. When using the pedals, the engine will start to assist you, depending on the chosen assist level. The engine operates as follows: Electronic controller applies the assist when the sensor detects a movement on the pedals. -
Page 6: Display - Connect
Display - Connect+ The display is operable by 3 buttons from the left side of the handlebar. * 5 levels of blue light indicate battery state of charge. * 5 levels of green light after buttons are pressed indicate assist level. * Error codes are integrated to the display and displayed by flashing LED's. -
Page 7: Assist Functions
Assist functions The display have 2 differrent assist functions: • Assist levels (1-5), choosable by using up/down buttons. • Walk assist is selected by holding down the ”down” button. Light is toggled on and off by holding down the ”up” button. If walk-assist function is supported by the bike, it allows you to drive up to 6 km/h without the use of the pedals and regardless of the assist level setting. -
Page 8: Connecting New Devices
Connecting new devices Attention! The app “Promovec Connect+” must be downloaded before it is possible to access the above functions. Links: IOS: https:/ /apps.apple.com/dk/app/promovec-connect/id1458723615?l=da Android: https:/ /play.google.com/store/apps/details?id=com.ektos.e.bike.client Turn on the Bluetooth, open for the app and the follow the onscreen instructions. -
Page 9: Troubleshooting
Troubleshooting If the first LED in the battery indicator starts to flash, this indicates that the system has detected an error. The numbers of flashes determine the error code. Numbers of Description Solution flashes Error on the motor If the motor is equipped with a plug, check the plug or contact your dealer Error on the controller. -
Page 10: Tire Size Settings
Tire size settings The circumference of the wheel is found by measuring the distance around the wheel from valve to valve or use the chart. Valve Type the measured value in the display. You can find the You can find the Circumference is ETRTO value on Tire size on the... -
Page 11: Youtube Learning Videos
Youtube learning videos How to pair your new display: https:/ /www.youtube.com/watch?v=LZHgKPralBg&t=1s How to use your new display: https:/ /www.youtube.com/watch?v=LZHgKPralBg&list=PLx3qr090MDMwlXaFLYe6Z- kLuhWeO1-BSZ Settings for backlight and change between metric and imperial unit of length: https:/ /www.youtube.com/watch?v=TTIzjYc9Aew&t=1s Setting the wheel size: https:/ /www.youtube.com/watch?v=2EAdE9FVgxc Using assist levels, bike modes and the map: https:/ /www.youtube.com/watch?v=cZkBSOM0j0U... -
Page 12: Battery - Mounting/Dismounting
Battery - Mounting/Dismounting * The battery is mounted under the front carrier from the left side of the bike. * Use the provided key. * Remove the key from the battery while driving. * When the battery is inserted, the electrical system is turned on automatically. -
Page 13: Storage
Storage If the e-bike is set aside for storage (more than one month), it will be enough to recharge one time per month. If your e-bike is stored outdoors or in an unheated room, we recommend removing the battery and storing / charging it at room temperature. -
Page 14: Disposal Of Battery
Disposing of battery Batteries contain substances that can be harmful to human health and the environment if not handled properly. Batteries are marked with the crossed-out garbage. It symbolizes that wasted batteries must not be disposed of with normal household waste but must be collected separately. It is important that you submit your used batteries to the collection systems established. -
Page 15: Battery Registration
Register your battery via Promovecs website and obtain 2-year capacity waranty. In addition to the prevailing sale of goods 2-year warranty provided, Promovec A/S offer a 2-year capacity warranty on all batteries for electric bikes equipped with Promovecs electrical system and intended for private use. -
Page 16: Maintenance
Maintenance The bike and the electrical system does not require any special maintenance. It is recommended to clean the bike and lubricate moving parts at regular intervals. Be aware, that wearing parts such as tire, chain, brake pads are replaced as needed. Models equipped with v-brake has a wear indicator engraved as a line or dot indicating the wearing time. -
Page 17: Road Traffic Law
Road traffic law The electric bicycle is part of the road traffic laws, such as regular bicycles. According to the “Order on traffic law” under section § 49. You can read more about this. You are therefore considered a cyclist in traffic with the same driving conditions. It is recommended to wear helmets and having the right lights equipped for your bicycle. -
Page 18: Technical Data
Technical data Frame Alloy Fork Unicrown Frame size Low 43 cm - High 56 cm Kalloy - oversize Handlebar Handlebar stem Zoom, adjustable Motor Rear w/cassette - 250W/36V Assist 5 levels Battery Carrier 6 - Various sizes from 15,6Ah to 17.4Ah Range Up to 150 km Display... -
Page 19: Battery Specifications
Battery specifications XL batteries 15,6AH 36V 17,4AH 36V Li-Ion Li-Ion 561Wh 626Wh Removeable Removeable Weight: 3,9 kg Weight: 3,9 kg Range: Range: Up to 130 km Up to 150 km XL battery Charger Swift mode, Splash proof Charging time 4-5 hours... - Page 20 9 speed Shimano Connect+ display 2 headlights...
