Installation
Drawing
Pressalit 1000
Height Adjustable
Changing Table
Adult Size
R8593118000 - EAN: 5708590377667
Previous version: R8403
Child Size
R8593114000 - EAN: 5708590377650
Previous version: R8402
MAX-Ability, Inc.
800.577.1555 info@max-ability.com
Subject to change without further notice.
www.max-ability.com
Rev Jan 2022
Pressalit
Telephone:
Pressalitvej 1
Telefax:
DK 8680 Ry
E-mail:
Danmark
Web:
Page 1/18
+45 87 88 87 88
+45 87 88 87 89
pressalit@pressalit.com
www.pressalit.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Max-Ability R8593118000
Summary of Contents for Max-Ability R8593118000

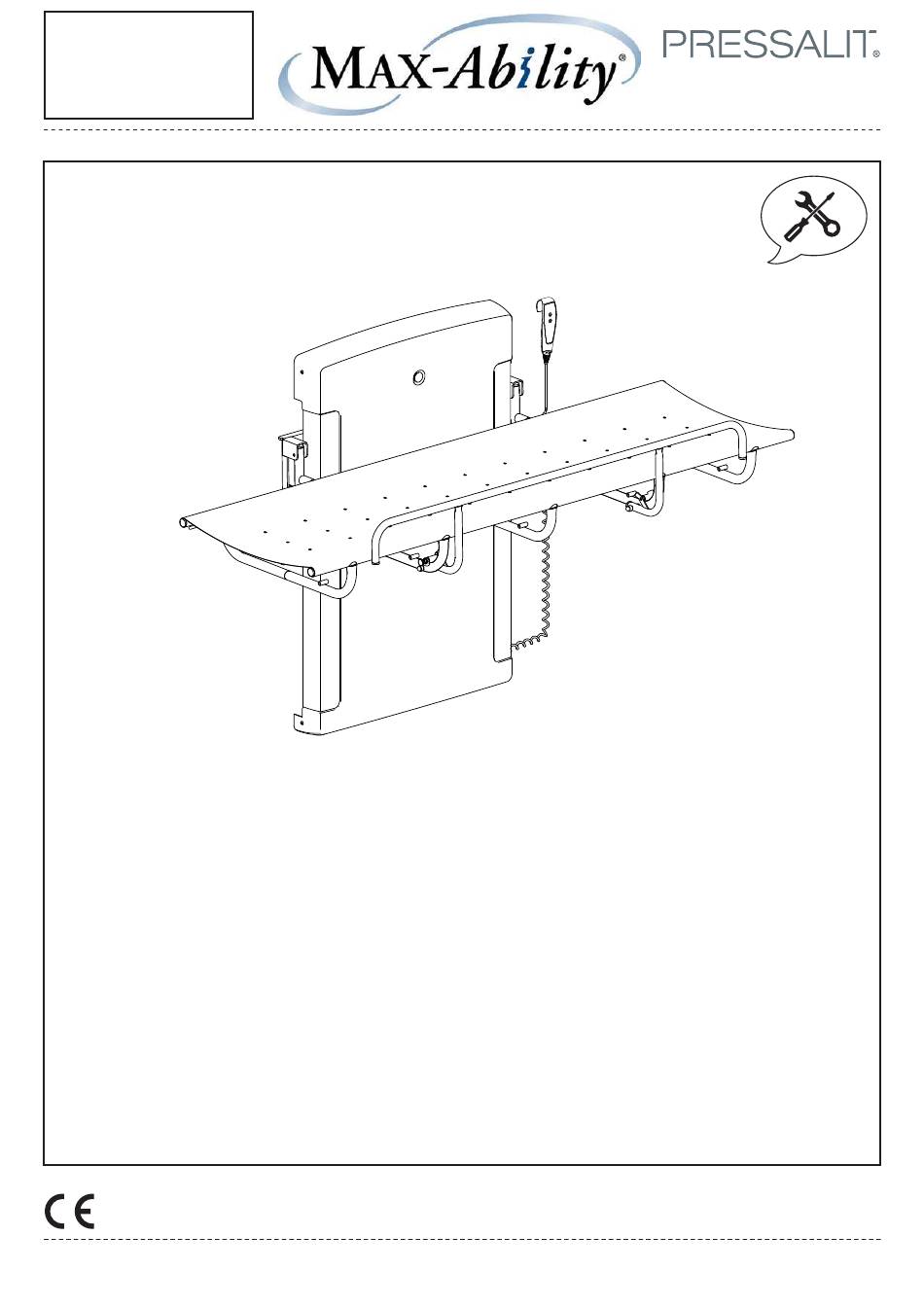

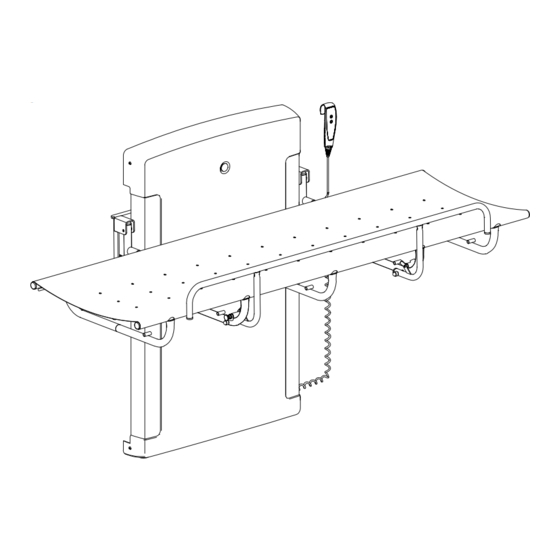

- Page 1 Drawing www.max-ability.com Rev Jan 2022 Page 1/18 Pressalit 1000 Height Adjustable Changing Table Adult Size R8593118000 - EAN: 5708590377667 Previous version: R8403 Child Size R8593114000 - EAN: 5708590377650 Previous version: R8402 Subject to change without further notice. Pressalit Telephone: +45 87 88 87 88 MAX-Ability, Inc.
-
Page 2: Installation Drawing
Contact your Pressalit agent, if assistance is needed when installing the product. Pressalit Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com... - Page 3 Drywall water-resistant, re-enforced with steel plates (2 x 12,5 mm) 2 mm Drywall water-resistant (2 x 12,5 mm) Concrete anchors included at no additional charge. MAX-Ability, Inc. Pressalit Telephone: +45 87 88 87 88 Pressalitvej 1 Telefax: +45 87 88 87 89 800.577.1555 info@max-ability.com...
- Page 4 Installation Drawing www.max-ability.com Page 4/18 Rev Jan 2022 Operation and maintenance manual (OMM) for this product is enclosed in the box. Please hand over to the user. It can also be downloaded at www.pressalit.com. An operation signage (quick guide) for use by people with reading or cognitive disabilities, is enclosed in the box.
- Page 5 ③ ② 540 (21.25) 340 (13.38) 1030 1050 (40.5) (41.38) 510 (20.07) (3.38) Pressalit Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 800.577.1555 info@max-ability.com DK 8680 Ry E-mail: pressalit@pressalit.com Danmark Web: www.pressalit.com...
- Page 6 Rev Jan 2022 Page 6/18 IPX6 100 (4) 110 (4.33) (5.7) (5.7) Pressalit Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com Danmark Web: www.pressalit.com...
- Page 7 2000 (79) 350 (13.78) 350 (13.78) 110 (4.33) 50 (2) (5.7) (5.7) Pressalit Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com Danmark Web: www.pressalit.com...
- Page 8 Installation Drawing www.max-ability.com Rev Jan 2022 Page 8/18 V8575 MAX-Ability, Inc. Pressalit Telephone: +45 87 88 87 88 Pressalitvej 1 Telefax: +45 87 88 87 89 800.577.1555 info@max-ability.com DK 8680 Ry E-mail: pressalit@pressalit.com Danmark Web: www.pressalit.com...
- Page 9 Installation Drawing www.max-ability.com Rev Jan 2022 Page 9/18 V8575 ② ③ ④ ① MAX-Ability, Inc. Pressalit Telephone: +45 87 88 87 88 Pressalitvej 1 Telefax: +45 87 88 87 89 800.577.1555 info@max-ability.com DK 8680 Ry E-mail: pressalit@pressalit.com Danmark Web: www.pressalit.com...
- Page 10 Min 495 (23.82) (19.49) Child Size (R8593114) Product weight: 98 lbs Weight capacity: 330 lbs Adult Size: (R8593118) Product weight: 101 lbs MAX-Ability, Inc. Pressalit Telephone: +45 87 88 87 88 Pressalitvej 1 Telefax: +45 87 88 87 89 800.577.1555 info@max-ability.com...
- Page 11 2 3 . 2 9 . 5 4 6 . 4 7 0 . 8 2 8 . 2 9 . Adult Size R8593118000 - EAN: 5708590377667 Previous version: R8403 MAX-Ability, Inc. Pressalit Telephone: +45 87 88 87 88 Pressalitvej 1...
- Page 12 The below recommendations are based on experience and internal test results. The below recommendations are to be considered as guidelines only. Subject to alteration without further notice. Pressalit Care Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com...
- Page 13 FTP K 6 M5 x 50 88 Ibs Please refer to installation drawings and specification pages (go to max-ability.com) for further information about which types of bolts/anchors are recommended on specific wall types. MAX-Ability provides concrete anchors at no additional charge.
- Page 14 M8 X 35 143 Ibs fischer FTP K 6 M5 x 50 88 Ibs Pressalit Care Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com Danmark Web: www.pressalitcare.com...
- Page 15 (2 X 0.5”) water-resistant fischer KD8 toggle 187 Ibs Wingit 187 Ibs Snaptight 187 Ibs Pressalit Care Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com Danmark Web:...
- Page 16 Drywall (other side) Hollow between walls Washer Anchor to fit wall type Wood (1.5-2”) Pressalit Care Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com Danmark Web: www.pressalitcare.com...
- Page 17 Drywall (other side) Washer Hollow between walls Screw to fit wall type Plywood (1 X 0.5”) Pressalit Care Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com...
- Page 18 Screw to fit wall type Hollow between walls NO GO Steel plate (1 X 0.1”) Pressalit Care Telephone: +45 87 88 87 88 MAX-Ability, Inc. Pressalitvej 1 Telefax: +45 87 88 87 89 DK 8680 Ry E-mail: pressalit@pressalit.com 800.577.1555 info@max-ability.com...
