Continental Fireplaces CEFVC38H Installation

VERTICAL ELECTRIC APPLIANCE - CEFVC38H
NEFVC32H Illustrated

Specifications

Model BTU
CEFVC38H 5000
* See "Recessed Installation" section for framing dimensions.

Dimensions

13/16"
(19.60mm)
36 1/2"
(927.40mm)
NEFVC38H Illustrated

Minimum Mantel Clearances

WARNING
!
• When using paint or lacquer to finish the mantel, the paint or lacquer must be heat resistant to prevent discolouration.
Product information provided is not complete and is subject to change without notice. Please consult the installation manual for
the most up to date installation information.

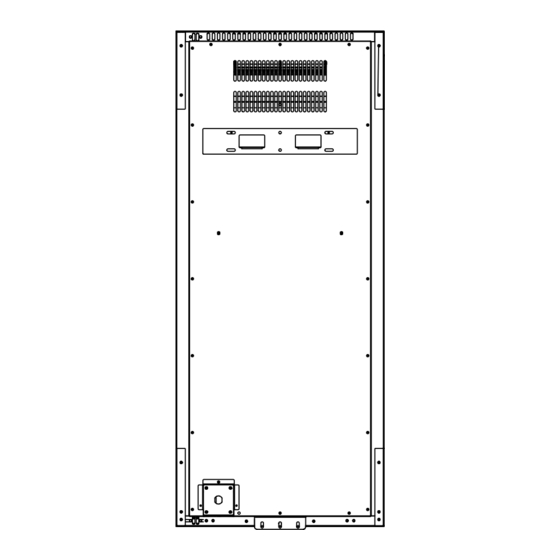

BACK VIEW
Width
Watts
Actual Framing
1500 16
1"
14"
(24.95mm)
(365.50mm)
BACK VIEW
Mantel
2" 0"
(5cm)
Wall
Floor
Side View (Wall Mount)
24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8 • 214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8
Fireplaces, Heating and Cooling: 705-721-1212 • Grills: 705 726-4278 • napoleonproducts.com
5/8"
(15mm)
RIGHT SIDE
VIEW
Height
Actual Framing
* 38 *
5 5/8"
(143.50mm)
3"
3"
(76mm)
(76mm)
36 1/2"
(927.40mm)
(15mm)
5/8"
(15mm)
RIGHT SIDE
VIEW
Mantel
2"
0"
(5cm)
Floor
Side View (recessed into a wall)
5/8"
(15mm)
15 1/4" (385mm)
16" (406.40mm)
FIREPLACES
FRONT VIEW
Depth
Actual Framing
5 5/8 *
6"
(153.20mm)
5/16"
(8.20mm)
26"
(660.20mm)
38"
(965.2mm)
5/8"
151/4" (385mm)
16" (406.40mm)
FRONT VIEW
0"
0"
0"
Viewing Area
26 x 15 1/4
W415-1910 / 09.21.18
