INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE.
CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: CSA C22.2 No-46 / UL 1278
SAFETY INFORMATION
WARNING
!
If the information in these instructions are
not followed exactly, a fi re or explosion
may result causing property damage,
personal injury or loss of life.
- Do not store or use gasoline or other fl ammable
vapors and liquids in the vicinity of this or any
other appliance.
Phone (705)721-1212 • Fax (705)722-6031 • www.continentalfi replaces.com • ask@continentalfi re.on.ca
$10.00
OPERATING INSTRUCTIONS

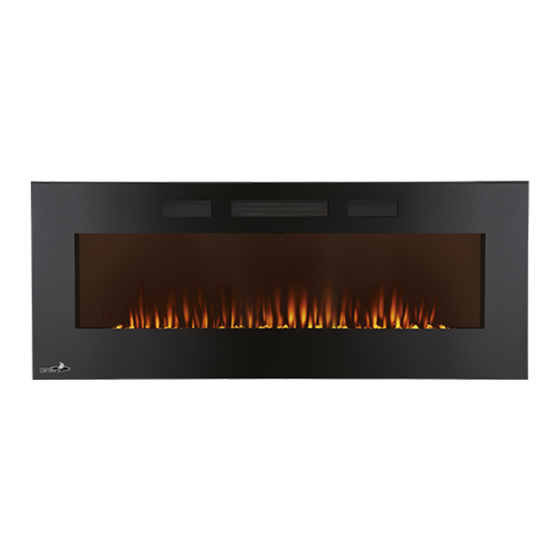

CEFL50B
ELECTRIC FIREPLACE
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
INSTALLATION AND
1.42A
W415-1290 / 07.13.15
EN
FR
PG
21
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Continental Fireplaces CEFL50B
Summary of Contents for Continental Fireplaces CEFL50B
- Page 1 NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE. INSTALLATION AND OPERATING INSTRUCTIONS CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: CSA C22.2 No-46 / UL 1278 CEFL50B ELECTRIC FIREPLACE SAFETY INFORMATION WARNING If the information in these instructions are not followed exactly, a fi...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION DIMENSIONS LISTING APPROVALS GENERAL INSTRUCTIONS UNPACKING AND TESTING APPLIANCE LOCATING APPLIANCE GROUNDING APPLIANCE INSTALLATION MINIMUM CLEARANCE TO COMBUSTIBLES MINIMUM MANTEL CLEARANCES INSTALLING THE APPLIANCE FINISHING GLASS DOOR REMOVAL CRYSTAL / PEBBLE MEDIA INSTALLATION OPERATING INSTRUCTIONS MAIN POWER SWITCH AND CONTROL PANEL OPERATING BY REMOTE CONTROL MAINTENANCE CLEANING... -
Page 3: Introduction
1.0 INTRODUCTION WARNING • THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED. • Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to operating instructions could cause fi re or injury. •... -
Page 4: Dimensions
This appliance has been tested in accordance with the CSA Standards for fi xed and location-dedicated electric room appliances in the United States and Canada. If you need assistance during installation, please contact your local dealer. Model Number CEFL50B NOTE: This appliance must be electrically wired and grounded Description Wall-Mount... -
Page 5: General Instructions
GENERAL INSTRUCTIONS WARNING READ THESE INSTRUCTIONS COMPLETELY BEFORE BEGINNING INSTALLATION. FAILURE TO FOLLOW THEM COULD CAUSE AN APPLIANCE MALFUNCTION RESULTING IN SERIOUS INJURY AND/OR PROPERTY DAMAGE. ALL ELECTRIC APPLIANCES HAVE HOT AND ARCING OR SPARKING PARTS INSIDE. DO NOT USE IT IN AREAS WHERE GASOLINE, PAINT OR FLAMMABLE LIQUIDS ARE PRESENT. -
Page 6: Locating Appliance
2.0 LOCATING APPLIANCE WARNING DUE TO HIGH TEMPERATURES, THIS ELECTRIC APPLIANCE SHOULD BE LOCATED OUT OF TRAFFIC. KEEP COMBUSTIBLE MATERIALS SUCH AS FURNITURE, PILLOWS, BEDDING, PAPERS, CLOTHES AND CURTAINS AT LEAST 36" FROM THE FRONT OF THE APPLIANCE. NEVER LOCATE THIS ELECTRIC APPLIANCE WHERE IT MAY FALL INTO A BATHTUB OR OTHER WATER CONTAINER. -
Page 7: Installation
DO NOT RUN THE POWER CORD HORIZONTALLY, DIRECTLY BELOW THE APPLIANCE. 68.5A Your CEFL50B is a wall-mounted appliance. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffi c areas. NOTE: Follow all National and local electrical codes. -
Page 8: Installing The Appliance
INSTALLING THE APPLIANCE Due to the many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance on the wall. Fig. 2 Select a location that is not prone to moisture and is located at least 3' (1m) away from combustible materials such as curtain drapes, furniture, bedding, paper, etc. -
Page 9: Finishing
4.0 FINISHING WARNING POWER SUPPLY SERVICE MUST BE COMPLETED PRIOR TO FINISHING TO AVOID RECONSTRUCTION. HEAT VENTS AND AIR OPENINGS CANNOT BE COVERED IN ANY CIRCUMSTANCES. GLASS DOOR REMOVAL WARNING GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED. THE DOOR LATCHES ARE PART OF A SAFETY RELIEF SYSTEM AND MUST BE PROPERLY ENGAGED. -
Page 10: Operating Instructions
5.0 OPERATING INSTRUCTIONS Once the appliance has been plugged into a grounded electrical outlet, it is ready to operate. NOTE: Ensure the house circuit breakers for the power supply are turned on. In the event of a power failure, when the main power switch of the appliance is in the "I" ON position and the hand held remote control is in the OFF position, the fl... -
Page 11: Operating By Remote Control
OPERATING BY REMOTE CONTROL NOTE: Make certain new batteries are installed correctly. Plug in your electric appliance. Make certain the appliance’s Main Power Switch is at the ON position! The remote control will NOT work if the Main Power Switch is at the OFF position. When operating the remote control, it must be directed towards the front center of the appliance. -
Page 12: Wiring Diagram
7.0 WIRING DIAGRAM WARNING TURN OFF THE APPLIANCE COMPLETELY AND LET COOL BEFORE SERVICING. ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE. Heater(690W) Heater(690W) W415-1290 / 07.13.15... -
Page 13: Replacement Parts
8.0 REPLACEMENT PARTS Contact your dealer or the factory for questions concerning prices and policies on replacement parts. Normally all parts can be ordered through your Authorized dealer / distributor. WARNING FOR WARRANTY REPLACEMENT PARTS, A PHOTOCOPY OF THE ORIGINAL INVOICE WILL BE REQUIRED TO HONOUR THE CLAIM. FAILURE TO POSITION THE PARTS IN ACCORDANCE WITH THIS When ordering replacement parts always give the following information:... -
Page 14: Overview
W415-1290 / 07.13.15... -
Page 15: Troubleshooting
10.0 TROUBLESHOOTING WARNING TURN OFF THE APPLIANCE COMPLETELY AND LET COOL BEFORE SERVICING. ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE. SYMPTOM PROBLEM TEST SOLUTION Dim or no fl ame Drum LED’s are burnt out Inspect the LED’s inside the fl ame generation cylinder drum (W010-2918) and replace them if necessary Ember bed is not Ember LED’s are burnt out... -
Page 16: Warranty
11.0 WARRANTY CONTINENTAL® electric appliances are manufactured under the strict Standard of the world recognized ISO 9001 : 2008 Quality Assurance Certifi cate. CONTINENTAL® products are designed with superior components and materials, assembled by trained craftsmen who take great pride in their work. Once assembled the complete appliance is thoroughly inspected by a qualifi ed technician before packing to ensure that you, the customer, receive the quality product that you expect from CONTINENTAL®. -
Page 17: Service History
12.0 SERVICE HISTORY 43.1 W415-1290 / 07.13.15... -
Page 18: Notes
13.0 NOTES 44.1 W415-1290 / 07.13.15... - Page 19 44.1 W415-1290 / 07.13.15...
