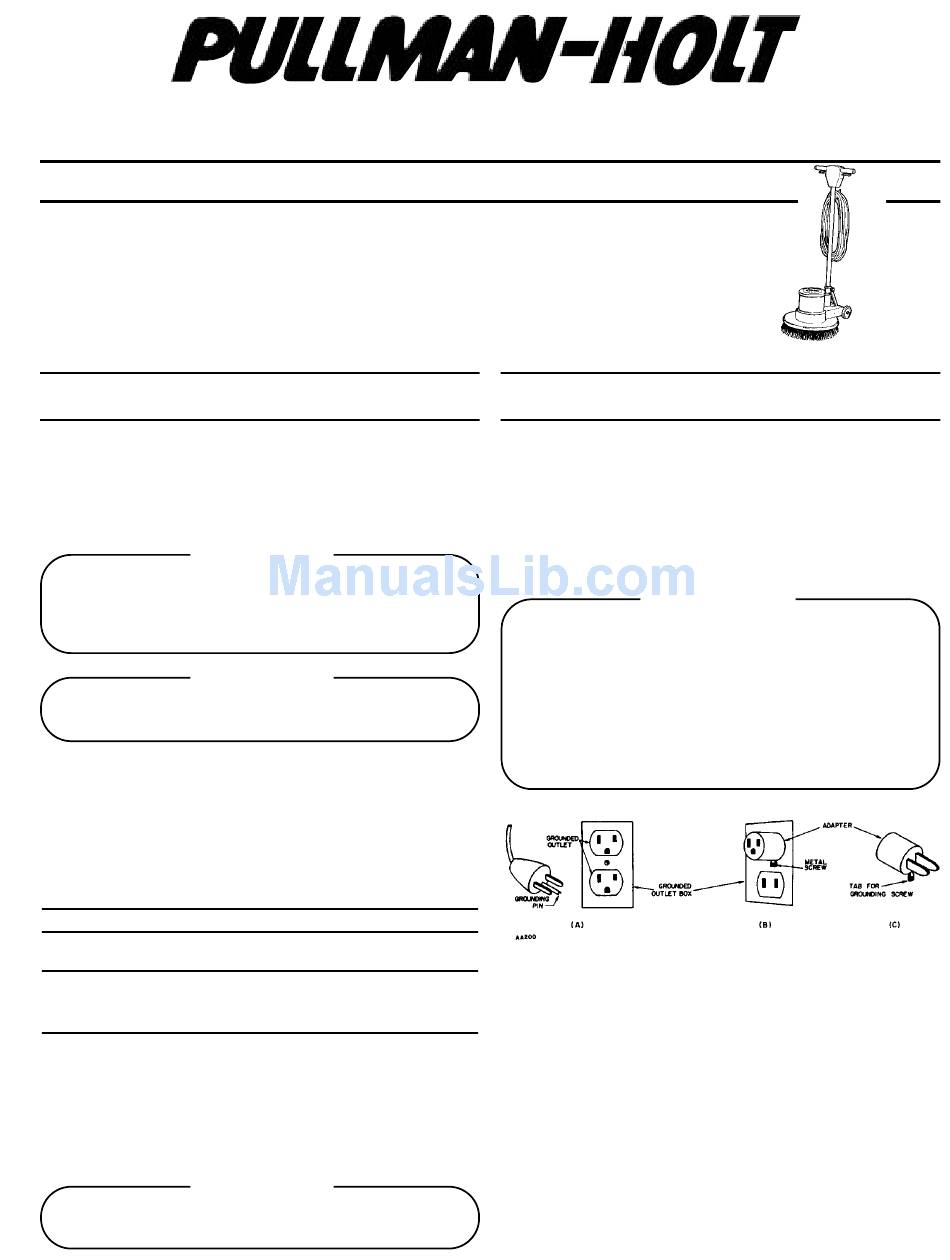

Pullman Holt DS-20 Operation & Care Instructions

DS-20
Dual Speed Floor Machine
This dual speed floor machine is a high quality, precision made product. All parts used in the manufactur-
ing of this floor machine have passed rigid quality control standards prior to assembly and an "each unit"
final inspection prior to packaging is your assurance of proper assembly. This floor machine was protec-
tively packed to prevent possible damage in transit. Should damage occur, please notify the transporting
carrier immediately for loss and/or claim.

IMPORTANT SAFEGUARDS

MOTOR:
This machine is powered by a 1-1/2 HP permanent magnet DC motor
(rectified) and will operate on a 115 VAC 60HZ only. Be sure your
power supply agrees with the voltage marked on name plates.
WARNING
Risk of explosion. Floor sanding can result in an explosive
mixture of fine dust and air. Use floor-sanding machine
only in a well ventilated area free from any flame or match.
WARNING
RISK OF FIRE: Do not use with a flammable or combustible
liquid to clean a floor.
EXTENSION CORDS:
Machines that have 3 wire cords requiring grounding must only be
used with extension cords that have 3-prong grounding type plugs
and 3-pole receptacles.
To determine the minimum wire size required, refer to the chart
below:
Minimum Wire Size (AWG) of Extension Cord
Nameplate Total Extension Cord Length (Feet)
Rating-Amps 25 50
0-10.0 18 18
10.1-13.0 16 16
13.1-15.0 12 12
Before using an extension cord, inspect it for loose or exposed wires,
damaged insulation and defective fitting.
NOTE: Warranty claims will be honored ONLY if handled by an autho-
rized Pullman-Holt Service Center unless other prior arrangements
have been made with the Pullman-Holt Service Department.
WARNING
OF POTENTIAL INJURY: Moving parts – to reduce the
risk of injury, unplug before servicing.
Operation & Care Instructions
Save For Future Reference
75 100 125 150 175 200
16 16 14 14 12
14 14 14 12 12
12 12 12 12 12

GROUNDING INSTRUCTIONS

This appliance must be grounded. If it should malfunction or break-
down, grounding provides a path of least resistance for electric cur-
rent to reduce the risk of electric shock. This appliance is equipped
with a cord having equipment grounding conductor and grounding
plug. The plug must be inserted into an appropriate outlet that is
properly installed and grounded in accordance with all local codes
and ordinances.
Improper connection of the equipment grounding conductor
can result in a risk of electric shock. Check with a qualified
electrician or service person if you are in doubt as to whether
the outlet is properly grounded.
Do not modify the plug provided with the appliance – if it will
not fit the outlet, have a proper outlet installed by a qualified
electrician.
This appliance is for use on a nominal 120- Volt circuit, and has a
grounded plug that looks like the plug illustrated in sketch A above.
12
A temporary adapter that looks like the adapter illustrated in sketch-
12
es B and C may be used to connect this plug to a 2-pole receptacle
–
as shown in sketch B if a properly grounded receptacle is not avail-
able. The temporary adapter should be used only until a properly
grounded outlet (sketch A) can be installed by a qualified electrician.
The green colored ear, lug, or the like extending from the adapter
must be connected to a permanent ground such as a properly
grounded outlet box cover. Whenever the adapter is used, it must be
held in place by a metal screw.
NOTE: In Canada, the use of a temporary adapter is not permitted by
the Canadian Electrical Code.
WARNING
