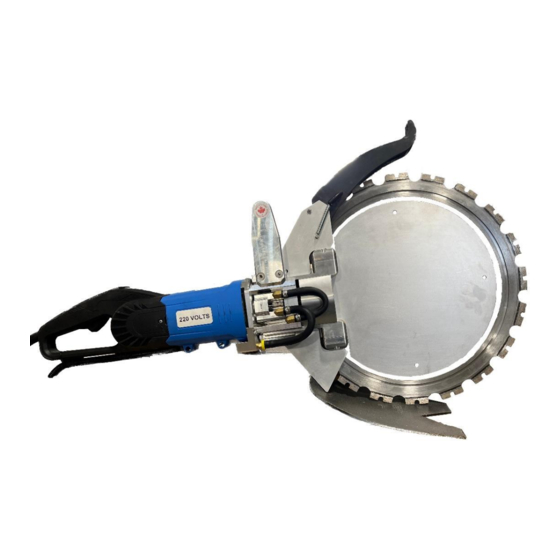

- Page 1 Safety and Operator Manuel For EMDS110V and EMDS220V Original Instructions August 2022...
- Page 2 We hope your experience with the Mini Dragon Saw will be satisfying and a trouble-free experience. From the people who designed and make it, ACG Saws & Tools of Canada Inc. 2590 Sheffield Road, Ottawa Ontario K1B 3V7 Canada +1 (613) 749-1525 +1 (877) 749-1525 EMDS110V | EMDS220V 2 | P a g e...
-
Page 3: Safety And Operation
• Do not use the cable to carry or hang up the saw or pull the plug out of the outlet. Keep the cable away from heat, oil, sharp and moving objects EMDS110V | EMDS220V 3 | P a g e... - Page 4 • Unplug your Dragon Saw after its use to prevent it from starting up unintentionally • Care for your electrical tool. Make sure parts function flawlessly and replace damaged parts. Poorly maintained tools are the cause of many accidents EMDS110V | EMDS220V 4 | P a g e...
- Page 5 • Exposure to vibration can cause nerve and circulatory damage. • If you experience symptoms seek medical help. Noise Hazards • Always wear hearing protection during operation. • Exposure to high noise levels can cause permanent damage. EMDS110V | EMDS220V 5 | P a g e...
- Page 6 We ensure to double check and measure tolerance of every part we manufacture. Then once we assemble, we thoroughly inspect and test the hydraulic system, gearing system and the complete functionality of the tool. EMDS110V | EMDS220V 6 | P a g e...
-
Page 7: Maintenance And Troubleshooting
Major services are to be performed by the manufacturer ACG Saws & Tools or authorised workshops * Change Gear Oil every time you replace you Diamond Ring Blade EMDS110V | EMDS220V 7 | P a g e... -
Page 8: Faults And Troubleshooting
Open the water faucet is closed Insufficient water pressure Check and increase water supply Blade is loose Re-set front cover Loosen mud guard and blade guard. Then push front cover in tight. Tighten guards EMDS110V | EMDS220V 8 | P a g e... -
Page 9: Technical Data
205 mm (8 inches) Cooling Water cooling (No dry cutting) Water supply Parameter Value Working pressure min. 3 bar max. 6 bar Flow rate min. 5 l/min Temperature max. 25 C EMDS110V | EMDS220V 9 | P a g e... - Page 10 ACG Saws & Tools of Canada Inc. Installing and/or replacing you Ring Blade EMDS110V | EMDS220V 10 | P a g e...
- Page 11 ACG Saws & Tools of Canada Inc. EMDS110V | EMDS220V 11 | P a g e...
- Page 12 ACG Saws & Tools of Canada Inc. EMDS110V | EMDS220V 12 | P a g e...
-
Page 13: Warranty
Proof of purchase is mandatory. An authorization return number must be issued by the manufacturer before any tool may be shipped to us for repair or warranty. The manufacturer will repair the tool to its original designation at his discretion. EMDS110V | EMDS220V 13 | P a g e... - Page 14 EMDS408 SHEILD LEFT EMDS409 SHIELD RIGHT EMDS410 SHIELD FRONT EMDS412 DRIVE ROLLER SMOOTH EMDS413 DRIVE ROLLER LIP EMDS414 SEAL 414-1 EMDS414-1 SEAL 2G EMDS415 BEARING 415-1 EMDS415-1 BEARING 2G EMDS416 C-CLIP EMDS110V | EMDS220V 14 | P a g e...
- Page 15 HOSE EMDS462 1/4" FEMALE FITTING EMDS463 1/4" VALVE EMDS468 O-RING EMDS472 COUPLER 472-1 EMDS472-1 BEARING CAGE INSERT 472-2 EMDS472-2 O-RING EMDS473 STORAGE BOX EMDS474 SET SCREW EMDS475 SCREW EMDS476 STRAIGHT PIN EMDS110V | EMDS220V 15 | P a g e...
- Page 16 EMDS523 SCREW EMDS524 STATOR-110V 524-1 EMDS524-1 STATOR-220V EMDS525 SCREW EMDS526 BEARING EMDS527 FAN BAFFLE EMDS528 ARMATURE-110V 528-1 EMDS528-1 ARMATURE-220V EMDS529 BEARING EMDS530 COMPLETE MOTOR EMDS531 COMPLETE MOTOR EMDS532 PRCD INTERUPTER PROTECTOR EMDS110V | EMDS220V 16 | P a g e...
- Page 17 ACG Saws & Tools of Canada Inc. EMDS110V | EMDS220V 17 | P a g e...
