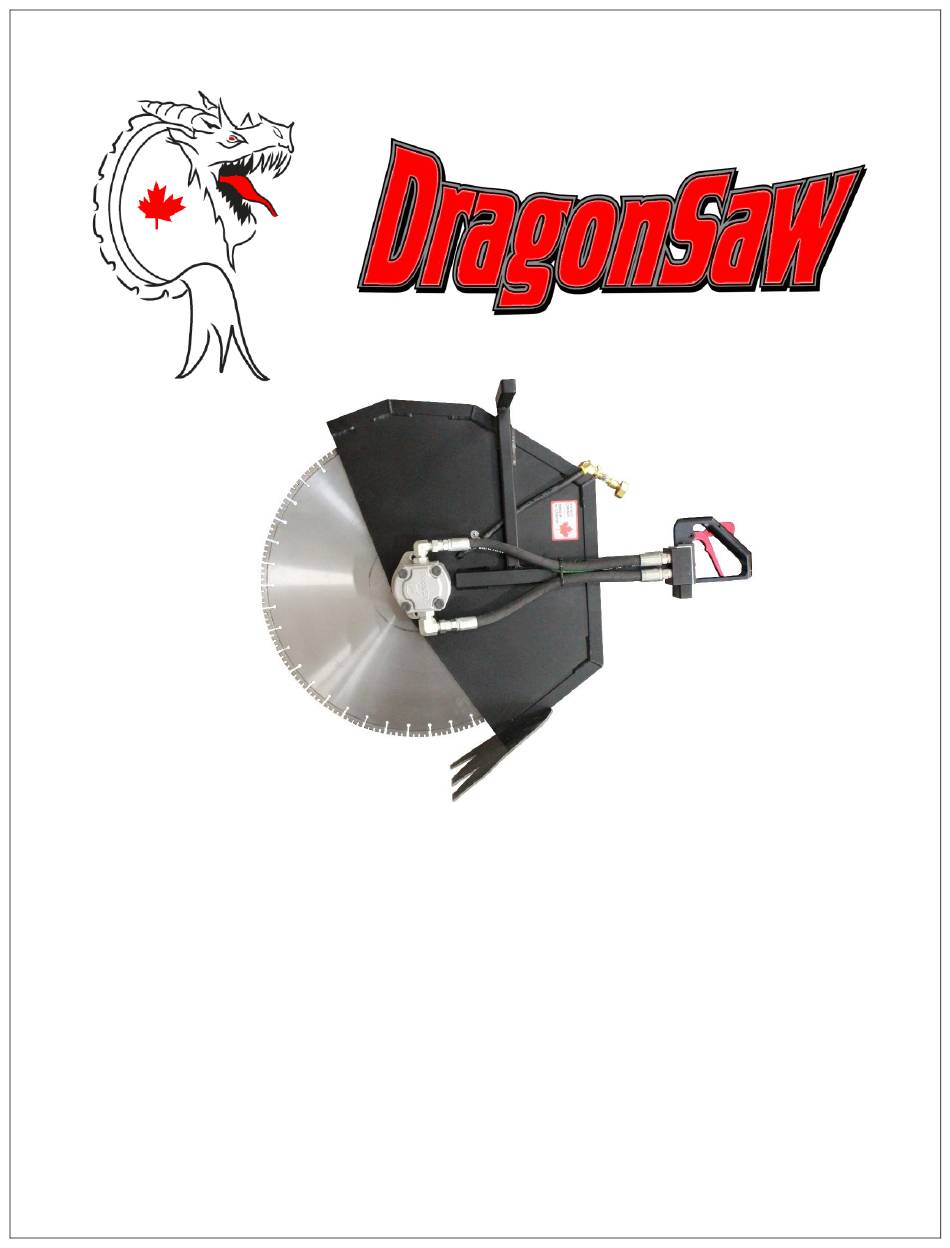

- Page 1 ACG SAWS & TOOLS OF CANADA INC. www.Dragonsaw.ca SAFETY & OPERATOR MANUEL FOR DRS-2022H10 or H12 AND OTHER DRAGON SAW MODELS FEBRUARY 2022...
- Page 2 Safety Procedure & Operation Manuel Warning In order to safely work with the hydraulic ring saw you have to follow all the safety recommendation from the manufacturer and all the competent safety organizations governing your territory and area. It is mandatory and imperative that you read and comprehend the following instruction to prevent any injury or even death to the operator or any one else in your surrounding work area and property Only trained personnel or experience operator shall use the cutting tool or saw.
-
Page 3: Operation
Operation The saw is design to safely cut only concrete, masonry and stone. Visually inspect the saw for any defect parts before using. NEVER operate a defective saw or blade. If damages or defects are notice have the saw repaired by a trained and experienced personnel before using. - Page 4 Warning Keep loose or torn clothing or body parts away from any moving parts. Serious injury or death may result. Plan you cutting operation before starting to prevent any injury or death by a n unsecured or falling part of the cut material or the binding of the blade cause by an unsecure part being cut.
-
Page 5: Technical Information
Technical Information Hydraulic Hand Saw (DRS24H10) Weight without blade 30.5 lbs - 13.84 kg Width without the blade 9 in. - 229 mm Height without the blade 28.5 in. - 724 mm Length without the blade 28 in. - 712 mm Power Requirement Hydraulic Maximum Flow... - Page 6 On/Off handle sticking Broken plunger O-ring, bent plunger rod Hydraulic oil leak Hole in supply or return line. Damaged coupler fitting or loose fitting...
-
Page 7: Warranty
The manufacturer will repair the tool to its original designation at his desecration. 2590 Sheffield Road, Ottawa, Ontario K1B 3V7 1 (613) 749-1525 1 (877) 749-1525 www.dragonsaw.ca... - Page 8 2022-02-25 ACG Saws & Tools of Canada Inc HS24H10 - 24" Hand Saw Item Part # Description Price Bolt $0.46 HDS034 Rubber Flop Guard $25.10 HDS036 Washer $1.17 HDS038 Flat Screw $0.81 HDS055 Flat Screw $0.65 HDS056 Cap Screw $0.85 HDS057 69-2 1/2"...
- Page 9 Hex Screw For Flange $1.00 HDS204 Small Motor Fitting $50.00 HDS205 Large Motor Fitting $60.00 HDS206 $1.50 HDS207 Bolt $1.50 HDS208 Hose Adaptor $13.12 HDS209 1/4" Pet Cock Valve $19.65 HDS210 1/4" T $12.99 HDS211 1/4" Elbow $10.60 HDS212 1/4" Hose x 12" $10.50 HDS213 Clamp...
