Quantum
Owner's Manual
Product specifications are subject to change
without notice. Due to ongoing development, the
actual product may vary from images shown.
This product contains chemicals known to the State
of California to cause cancer, birth defects and
other reproductive harm.
This product is not a toy! (14+) Recommended for
ages 14 and up. Adult supervision required for ages
under 18 years old. Contains small parts, keep out
of reach of children 3 years of age and younger.
Distributed in the US by:
Firelands Customer Service/Product Support
1133 Libra Drive, Lincoln, NE 68512
www.firelandsgroup.com
1-800-205-6773
customerservice@firelandsgroup.com
FPV
AZSQ3250
AZSQ3250M1
Distributed in Australia by:
Model Engines (Aust.) Pty. Ltd.,
P.O. BOX 828
NOBLE PARK 3174
Australia
www.modelengines.com.au
Ph (03) 8793 5555
MADE IN CHINA
Quantum FPV
Quantum FPV Mode 1
Ensure you have the latest version of
the manual by visiting our website.
Distributed in the UK by:
J Perkins Distribution Ltd,
Lenham, Kent, UK ME17 2DL.
www.jperkins.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ares Quantum FPV AZSQ3250
Summary of Contents for Ares Quantum FPV AZSQ3250
- Page 1 Quantum Owner’s Manual Product specifications are subject to change AZSQ3250 Quantum FPV without notice. Due to ongoing development, the AZSQ3250M1 Quantum FPV Mode 1 actual product may vary from images shown. This product contains chemicals known to the State of California to cause cancer, birth defects and other reproductive harm.
- Page 2 Quantum Specification Length: ......312mm Width: ......323mm Height: ......92mm Weight: ......167g (RTF) Flight Battery: ....2S 7.4V 25C 350mAh LiPo Transmitter: ....2.4GHz with built-in FPV monitor Transmitter Battery: ..1S 3.7V 5C 450mAh LiPo Charger: ......1 x 1S USB and 1 x 2S USB...
-
Page 3: Table Of Contents
Contents Introduction ................4 FCC Information ................. 4 Safety Precautions ..............5 Lawful Operation ................ 5 LiPo Battery Warnings ..............6 Contents ..................7 Quadcopter Details ..............8 Transmitter Details (Mode 2)............. 9 Transmitter Details (Mode 1)........... 10 Charging the Supplied LiPo Batteries ........11 Preparation for Flight ...............11 Flying Your Quantum FPV ............12 Trimming ................... -
Page 4: Introduction
Quantum Introduction The Ares Quantum FPV is the perfect mini-size quad for impressive FPV (First Person View) flying. Now you can fly and see what the pilot sees from the cockpit as 720p HD video is streamed from the Quantum FPV’s camera to the transmitter’s integral monitor. -
Page 5: Safety Precautions
Safety Precautions Failure to use this product in the intended manner as described in the following instructions can result in damage and / or personal injury. A Radio Controlled (RC) airplane is not a toy! If misused it can cause serious bodily harm and damage to property. -
Page 6: Lipo Battery Warnings
Quantum LiPo Battery Warnings IMPORTANT NOTE: Lithium Polymer batteries are significantly more volatile than the alkaline, NiCd or NiMH batteries also used in RC applications. All instructions and warnings must be followed exactly to prevent property damage and / or personal injury as the mishandling of LiPo batteries can result in fire. -
Page 7: Contents
Contents • 1 x Quantum FPV quadcopter with 720p HD camera • 1 x 350mAh 2-cell 7.4V LiPo for quadcopter • 1 x 2.4GHz transmitter with integral FPV monitor • 1 x 450mAh 1-cell 3.7V LiPo for transmitter • 1 x 4GB micro memory card •... -
Page 8: Quadcopter Details
Quantum Quadcopter Details Front Camera Propeller A Propeller B clockwise rotation anti-clockwise rotation Propeller A Propeller B clockwise rotation anti -clockwise rotation Rear Front Power ON / OFF Memory card slot Battery Door Rear... -
Page 9: Transmitter Details (Mode 2)
Transmitter Details (Mode 2) Camera Shutter Button Luminance (–) Video Recording Key Screen ON/OFF Luminance (+) Forward/ Backward Elevator trim Elevator/ Throttle/ Aileron stick Rudder stick Left/Right Left/Right Rudder trim Aileron trim Main Power ON/OFF switch IOM Button Return button DOWN Agility Mode (press) Flip Button (press) -
Page 10: Transmitter Details (Mode 1)
Quantum Transmitter Details (Mode 1) Camera Shutter Button Luminance (–) Video Recording Key Screen ON/OFF Luminance (+) Forward/ Backward Elevator trim Throttle/ Elevator/ Aileron stick Rudder stick Left/Right Left/Right Rudder trim Aileron trim Main Power ON/OFF switch IOM Button Return button DOWN Agility Mode (press) Flip Button (press) -
Page 11: Charging The Supplied Lipo Batteries
Charging The Supplied LiPo Batteries Locate the two USB style chargers and connect one to the larger ‘Quad LiPo’ and one to the smaller ‘Tx LiPo’. Two different USB chargers are supplied, one with a white two-pin connector (for the Tx LiPo) and one with a white three-pin connector (for the Quad LiPo). -
Page 12: Flying Your Quantum Fpv
Quantum 3. Switch the Quantum ON using the on/off power switch on the underside of the quadcopter. Note that the LED lights will flash. Place the Quantum on a level surface to enable the on-board gyro to be properly calibrated. ON / OFF Switch 4. - Page 13 1. Ascend and descend. Gently push the throttle stick forward to ascend and backward to descend. (Mode 2 Transmitter Shown) 2. Yaw. With the Quantum in a stable hover, gently move the rudder stick to the left to yaw (rotate) the quad in an anticlockwise direction.
-
Page 14: Trimming
Quantum Note: with a charged battery the Quantum will fly for approximately 5.5 minutes. At the end of your flight low battery power will be indicated when the Quantum’s LED lights begin to flash. When this happens you should land within 30 seconds and recharge the LiPo. -
Page 15: Agility Mode
Note: The trim buttons offer 30 steps, each step indicated by a short beep and trim center indicated by a prolonged beep. Agility Mode Agility mode allows you to tailor the performance of your Quantum to suit your experience. Three settings are available: Low - for beginners. -
Page 16: Intelligent Orientation Mode
Quantum Intelligent Orientation Mode Your Quantum FPV is equipped with IOM functionality that locks the aileron and elevator commands to a specific compass bearing no matter which direction the front of the quadcopter is facing. IOM is perfect for creative video making as it allows you to disengage the yaw (camera pan) function from the other primary controls to make combined flying and filming much easier. -
Page 17: One Button Return
One Button Return If, in flight, you get confused about the orientation of your Quantum it can be made to fly itself back in the direction of the initial gyro calibration / take-off point simply by pressing the Return button. Note that the quadcopter will only return in the general direction of the calibration / take-off point and is not programmed to return to the actual take-off point. -
Page 18: Gyro Calibration
Quantum Gyro Calibration If at any point you wish to recalibrate your Quantum’s gyros to re-establish stable flight and correct any control malfunction – following a crash, for example – you can do this in the following way: 1. Open the rear battery cover of the quadcopter and insert the larger Quad LiPo into the fuselage. -
Page 19: Troubleshooting Guide
Troubleshooting Guide Problem Diagnosis Cure The quadcopter lights continue 1. The quad has failed to pair 1. See the section headed to flash when the transmitter is with the transmitter. ‘Preparation For Flight’ and turned on and the quad will not follow steps 2 - 5. -
Page 20: Replacement Parts
Quantum Replacement Parts AZSQ3219 .....Micro card 4GB AZSQ3220 .....USB card reader AZSQ3221 .....2.4GHz Transmitter with integral FPV Monitor AZSQ3222 .....3.7V Tx Battery AZSQ3225 .....USB Tx Battery Charger AZSQ3251 .....Receiver AZSQ3253 .....5.8GHz VTX AZSQ3254 .....White LED AZSQ3255 .....Red LED AZSQ3256 .....Propeller Shaft AZSQ3257 .....Bearing AZSQ3258 .....7.4V 350mAh 25C LiPo AZSQ3259 .....7.4V USB Charger... -
Page 21: Warranty Information
European directives. This product’s design fulfils the protective aims of the European Community relating to the safe operation of this equipment. For a copy of the Declaration of Conformity, please visit: www.ares-rc.com/support Disposal Electrical equipment marked with the crossed out wheelie bin symbol must not be disposed of in household waste, but must be taken to a specialist disposal or recycling system. - Page 22 Quantum Warranty, support and service (USA) 30-Day Limited Warranty Term Period: We warranty that the Product(s) purchased (the ‘Product’) will be free from defects in materials and workmanship when the product is new (before being used) for the limited warranty term period, 30 days, from the date of purchase by the Purchaser.
- Page 23 product has been altered or modified, has had a foreign part added, has been misused or not used for the purpose for which it was designed, has been used near or in salt water, has been water damaged, or if the damage has been caused by the customer’s use of the product.
- Page 24 Ares-RC.com REV- 001...
Need help?
Do you have a question about the Quantum FPV AZSQ3250 and is the answer not in the manual?
Questions and answers

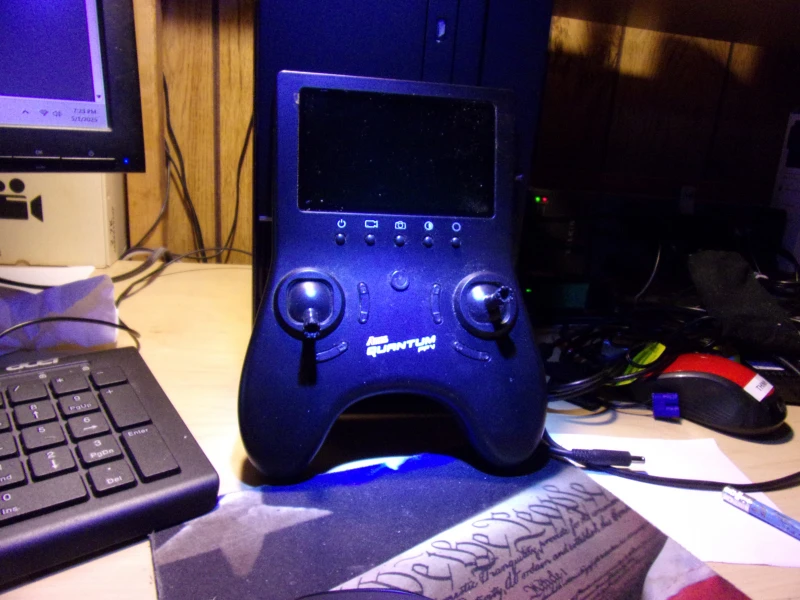

I have an Ares Quantum PPF transmitter, the drone disappeared never to be seen again. Can I bind this transmitter on another drone?
