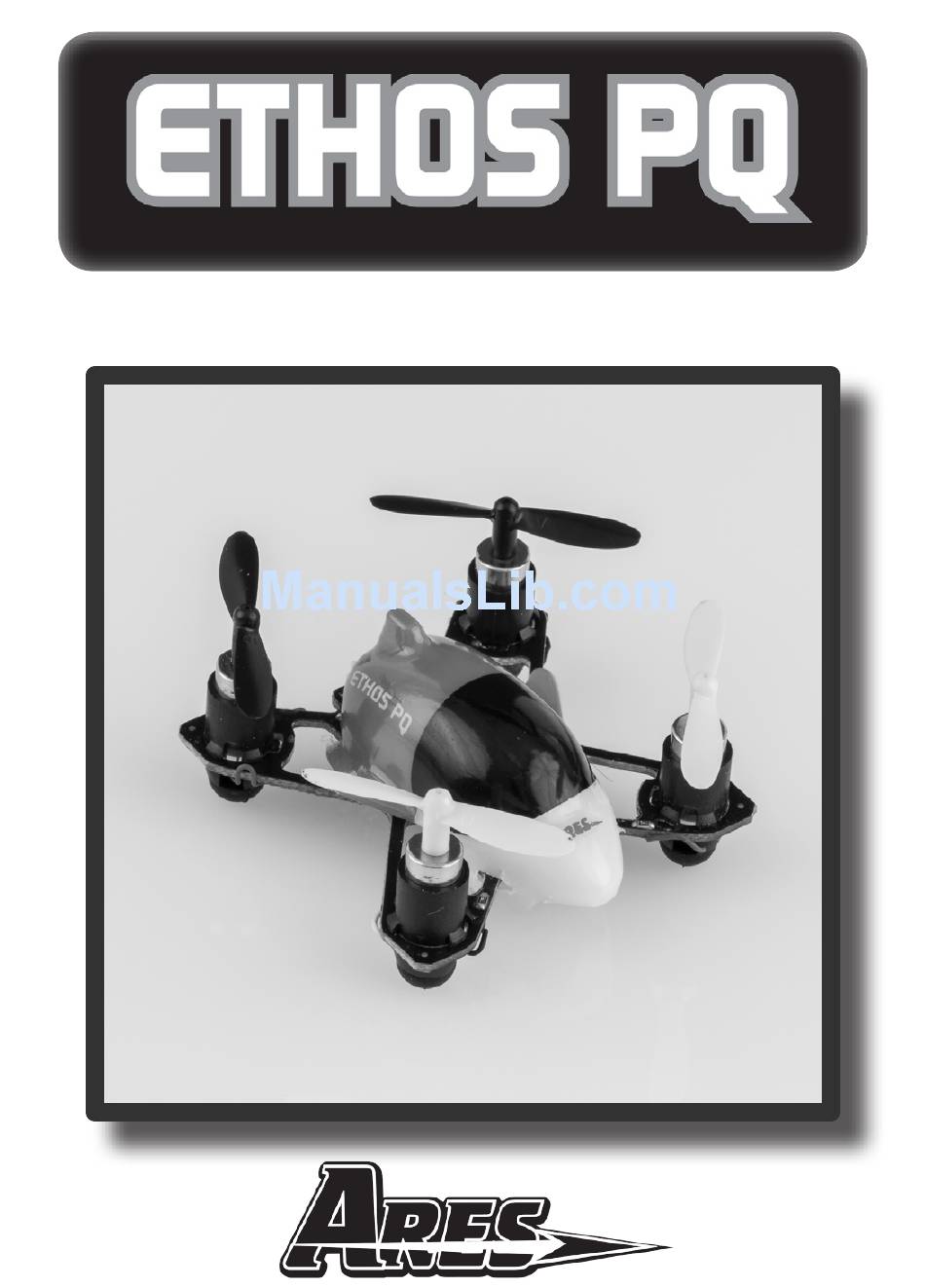

  • Page 1 Instruction Manual...

  • Page 2: Specifications

    Specifications Length: 1.75 in. (45mm) Height: 1 in. (26.5mm) Rotor Diameter: 1.2 in. (31mm) Weight with Battery: .42 oz. (12g) Motors: Coreless Battery: 100mAh 1S 3.7V LiPo Charger: USB LiPo Charger Transmitter: 4-channel 2.4GHz Contents...
  • Page 3 • Keep clear of spinning blades. • Turn transmitter and Ethos PQ off when not in use. • Keep all parts away from water. • Not intended for children under 8 years old.

  • Page 4: Transmitter Batteries

    Transmitter Batteries Remove rear cover and install 2-AA batteries Charging Flight Battery Plug charging cord into charge port on rear of quad and into a USB port. Charge time = 30min. Charging Port Power Switch Slide Switch to Left to Turn ON...

  • Page 5: Transmitter Details

    Turn on transmitter first then quad Set quad on level surface and leave until blinking LED’s become steady Transmitter Details Rate Switch Flip Switch 1 Beep = Low Rate Press and hold button, then move ai- 2 Beeps= Mid Rate leron stick in the direction you want 3 Beeps= High Rate the quad to flip.
  • Page 6 Flight Controls Throttle Stick DOWN DOWN...
  • Page 7 Rudder Stick Yaw Left Yaw Right...
  • Page 8 Aileron Stick Move Left Move Right Move Left Move Right...
  • Page 9 Elevator Stick Forward Backward Forward Backward...

  • Page 10: Replacement Parts

    Prop Replacement Correct Prop Location and Rotation Replacement Parts AZSH1500 Ethos PQ RTF Quad AZSH1503 100mAh 1-Cell/1S 3.7V LiPo Batt. (2) AZSH1504 USB Charging Cord AZSH1509 Motor Mount w/Landing Pad (4) AZSH1513 Clockwise Motor (2) AZSH1514 Counter-Clockwise Motor (2) AZSH1518...

  • Page 11: Exploded View

    Exploded View AZSH1521 AZSH1503 AZSH1518 AZSH1513 AZSH1514 AZSH1509...
  • Page 12 30-Day Limited Warranty Term Period: We warranty that the Product(s) purchased (the “Product”) will be free from de- fects in materials and work manship when the product is new (before being used) for the limited warranty term period, 30 days, from the date of purchase by the Purchaser.
