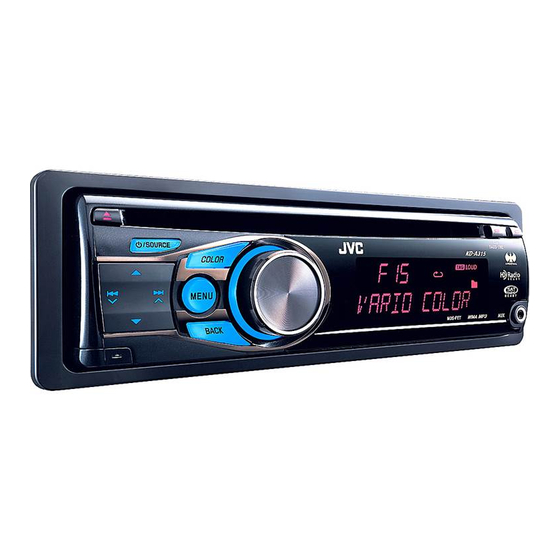

KD-A315 / KD-R310
CD RECEIVER / RECEPTOR CON CD /
RÉCEPTEUR CD
For canceling the display demonstration, see page 4. / Para cancelar la demostración en pantalla,
consulte la página 4. / Pour annuler la démonstration des affichages, référez-vous à la page 4.
For installation and connections, refer to the separate manual.
Para la instalación y las conexiones, refiérase al manual separado.
Pour l'installation et les raccordements, se référer au manuel séparé.
MANUEL D'INSTRUCTIONS
INSTRUCTIONS
MANUAL DE INSTRUCCIONES
ENGLISH
ESPAÑOL
FRANÇAIS
For customer Use:
Enter below the Model
No. and Serial No. which
are located on the top or
bottom of the cabinet.
Retain this information
for future reference.
Model No.
Serial No.
GET0626-001A
[J]
Advertisement
Table of Contents
Related Manuals for JVC KD-A315
Summary of Contents for JVC KD-A315
- Page 1 ENGLISH ESPAÑOL FRANÇAIS KD-A315 / KD-R310 CD RECEIVER / RECEPTOR CON CD / RÉCEPTEUR CD For canceling the display demonstration, see page 4. / Para cancelar la demostración en pantalla, consulte la página 4. / Pour annuler la démonstration des affichages, référez-vous à la page 4.
- Page 2 – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not approved by JVC could void the user’s authority to operate the equipment. IMPORTANT FOR LASER PRODUCTS 1. CLASS 1 LASER PRODUCT 2.
-
Page 3: Table Of Contents
Thank you for purchasing a JVC product. How to read this manual Please read all instructions carefully before The following icons/symbols are used to operation, to ensure your complete indicate: understanding and to obtain the best possible Press and hold the button(s) performance from the unit. -
Page 4: Canceling The Display Demonstration
Canceling the display demonstration Turn on the power. Select <DEMO OFF>. [Hold] (Initial setting) Finish the procedure. Setting the clock Turn on the power. [Hold] (Initial setting) Select <CLOCK>. Select <CLOCK SET>. Adjust the hour. Adjust the minute. Finish the procedure. ENGLISH... -
Page 5: Preparing The Remote Controller
• Wrap the battery with tape and insulate when decreases, replace the battery. throwing away or saving it. Replacing the lithium coin battery KD-A315 is equipped with the steering wheel CR2025 remote control function. Before operating, connect an exclusive remote... -
Page 6: Basic Operations
Basic operations Ejects the disc Control dial Loading slot Display window Remote sensor Auxiliary input jack • DO NOT expose to bright sunlight. Detaches the panel When you press or hold the following button(s)... Remote Main unit General operation controller Turns on. -
Page 7: Listening To The Radio
Listening to the radio ] “FM” or “AM” Ÿ “ST” lights up when receiving an FM stereo broadcast with sufficient signal strength. Manual search Automatic presetting (FM)— “M” flashes, then press SSM (Strong-station Sequential Memory) the button repeatedly. You can preset up to 18 stations for FM. [Hold] While listening to a station... -
Page 8: Listening To A Disc
Manual presetting (FM/AM) Selecting a preset station You can preset up to 18 stations for FM and 6 stations for AM. Ex.: Storing FM station of 92.50 MHz into preset number “04.” ] “92.50MHz” Using the remote controller 5 U / D ∞ : Changes the preset [Hold] stations 2 R / F 3 : Searches for stations... - Page 9 Selecting a track/folder Selecting the playback modes You can use only one of the following playback modes at a time. [Hold] For MP3/WMA discs, select the desired folder, then the desired track by repeating step 2. ] “REPEAT” j “RANDOM” •...
-
Page 10: Using Bluetooth ® Devices
Using Bluetooth ® devices For Bluetooth operations, it is required to Registering using “OPEN” connect the Bluetooth adapter, KS-BTA200 (not Preparation: Operate the device to turn on its supplied) to the expansion port on the rear of Bluetooth function. this unit. •... -
Page 11: Using A Bluetooth Mobile Phone
Registering a device Connecting/disconnecting/ (“SEARCH”/“SPECIAL”) deleting a registered device ] “BT-PHONE” or “BT-AUDIO” ] “BT-PHONE” or “BT-AUDIO” ] “NEW DEVICE” ] Select a device you want to connect/disconnect/delete. ] “SEARCH” : To search for available devices ] “CONNECT” or “DISCONNECT” : To The unit searches and displays the list connect/disconnect the selected device of the available devices. - Page 12 When a text message comes in..phone number. If the mobile phone is compatible with text For NUMBER message (notified through JVC Bluetooth adapter) and “MSG INFO” (message info) is set to “AUTOMATIC” ( 14), the unit rings to inform you of the message arrival.
-
Page 13: Using A Bluetooth Audio Player
Appears only when a Bluetooth phone is connected and it is compatible with text Using the remote controller message (notified through JVC Bluetooth 2 R / F 3 : Reverse skips/forward adapter). Bluetooth Audio: Shows only “Version.” skips... - Page 14 The unit does not inform you of Bluetooth Information: the arrival of a message. If you wish to receive more information about Bluetooth, visit the following JVC web MIC SETTING (microphone setting) site: <http://www.jvc.co.jp/english/car/> Only for the device being connected for (English website only) “BT-PHONE.”...
-
Page 15: Listening To The Hd Radio ™ Broadcast
Listening to the HD Radio ™ Broadcast Before operating, connect HD Radio tuner box, Select your desired channel. KT-HD300 (not supplied) to the expansion port ..on the rear of the unit. (back to the beginning) • For details, refer also to the instructions supplied with the HD Radio tuner box. -
Page 16: Listening To The Satellite Radio
• PnP, SC-VDOC1 and KS-SRA100 For listening to an XM Satellite radio: ] Select a category. • JVC Smart Digital Adapter (XMDJVC100) • CNP2000UC and CNPJVC1 SIRIUS: If you select “ALL,” you can tune in to all the channels of all •... - Page 17 Activate your SIRIUS subscription after Storing channels in memory connection You can preset up to 18 channels for both SIRIUS and XM. Ex.: Storing channel into preset number “04.” ] “SIRIUS” Tune in to a channel you want to store. SIRIUS Satellite radio starts updating all (Steps ~ –...
-
Page 18: Listening To The Other External Components
Changing the display information Using the remote controller Category name = Channel name 5 U / D ∞ : Changes the = Artist name = Composer categories name * = Song/program name/ 2 R / F 3 : Changes the channels title = Clock = (back to the 2 R / F 3 : Changes the channels... -
Page 19: Selecting A Preset Sound Mode
Selecting a preset sound mode You can select a preset sound mode suitable Storing your own sound mode for the music genre. You can store your own adjustments in memory. FLAT = NATURAL = DYNAMIC = VOCAL [Hold] BOOST = BASS BOOST = USER = (back to the beginning) While listening, you can adjust the tone level of ] <PRO EQ>... -
Page 20: Menu Operations
Menu operations Repeat step 2 if necessary. [Hold] • To return to the previous menu, press BACK. • To exit from the menu, press DISP or MENU. Category Menu item Selectable setting, [ Initial: Underlined DEMO • DEMO ON : Display demonstration will be activated Display automatically if no operation is done for about demonstration... - Page 21 Category Menu item Selectable setting, [ Initial: Underlined DIMMER • DIMMER ON : Dims the display and button illumination. • DIMMER OFF : Cancels. SCROLL * • SCROLL ONCE : Scrolls the displayed information once. • SCROLL AUTO : Repeats scrolling (at 5-second intervals). •...
- Page 22 Category Menu item Selectable setting, [ Initial: Underlined IF BAND • AUTO : Increases the tuner selectivity to reduce Intermediate interference noises between adjacent stations. frequency band (Stereo effect may be lost.) • WIDE : Subject to interference noises from adjacent stations, but sound quality will not be degraded and the stereo effect will remain.
- Page 23 Category Menu item Selectable setting, [ Initial: Underlined VOL ADJUST VOL ADJ –05 — : Preset the volume adjustment level of Volume adjust VOL ADJ +05 each source (except FM), compared to the [VOL ADJ 00] FM volume level. The volume level will automatically increase or decrease when you change the source.
- Page 24 Category Menu item Selectable setting, [ Initial: Underlined AM * • AM ON : Enable “AM” in source selection. AM station • AM OFF : Disable “AM” in source selection. EXT IN * • EXT ON : Enable “EXT IN” in source selection. External input •...
-
Page 25: Title Assignment
Menu hierarchy Operation • BUTTON ZONE Follow example below. DAY COLOR • DISP ZONE Press BACK after step 5, then select DISP ZONE in step 2. COLOR SETUP • BUTTON ZONE Press BACK after step 5, then select NIGHT COLOR in NIGHT COLOR step 2. -
Page 26: More About This Unit
More about this unit Basic operations Disc operations Turning off the power Caution for DualDisc playback • If you turn off the power while listening to • The Non-DVD side of a “DualDisc” does not a track, playback will start from where it had comply with the “Compact Disc Digital Audio”... - Page 27 • Some CD-Rs or CD-RWs may not play back on • The maximum number of characters for this unit because of their disc characteristics, file/folder names vary depending on the or for the following reasons: disc format used (includes 4 extension –...
- Page 28 • The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Victor Company of Japan, Limited (JVC) is under license. Other trademarks and trade names are those of their respective owners.
-
Page 29: Maintenance
Maintenance How to clean the connectors To keep discs clean Frequent detachment will deteriorate the A dirty disc may not play correctly. If a disc does become connectors. dirty, wipe it with a soft cloth To minimize this possibility, periodically wipe in a straight line from center to the connectors with a cotton swab or cloth moistened with alcohol, being careful not to... -
Page 30: Troubleshooting
( If “PROTECT” does not disappear, consult your JVC car audio dealer or a company supplying kits. The unit does not work at all. - Page 31 Symptom Remedy/Cause Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in a format compliant with ISO 9660 Level 1, Level 2, Romeo, orJoliet. • Add the extension code <.mp3> or <.wma> to the file names. Noise is generated.
- Page 32 Symptom Remedy/Cause The unit does not make pairing • Enter the same PIN code for both the unit and target with the Bluetooth device. device. • Select the device name from “SPECIAL,” then try to connect again. ( • Try to pair/connect from the Bluetooth device. Echo or noise occurs.
- Page 33 Symptom Remedy/Cause “CALL 1-888-539-SIRIUS TO SUBSCRIBE” Starts subscribing to SIRIUS Satellite radio. scrolls on the display while listening to the SIRIUS Satellite radio. No sound can be heard. “UPDATING” The unit is updating the channel information appears on the display. and it takes a few minutes to complete.
-
Page 34: Specifications
Q (Fixed) Frequency Response: 40 Hz to 20 000 Hz Line-Out Level/Impedance: KD-A315: 5.0 V/20 kΩ load (full scale) KD-R310: 2.5 V/20 kΩ load (full scale) Subwoofer-Out Level/Impedance: KD-A315: 5.0 V/20 kΩ load (full scale) KD-R310: 2.5 V/20 kΩ load (full scale) Output Impedance: 1 kΩ... - Page 35 Type: Compact disc player Signal Detection System: Non-contact optical pickup (semiconductor laser) Number of Channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz Dynamic Range: 93 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max.
