Williams Sound SoundPlus MOD 232 Installation Manual And User's Manual page 10

SoundPlus Infrared Listening System
®

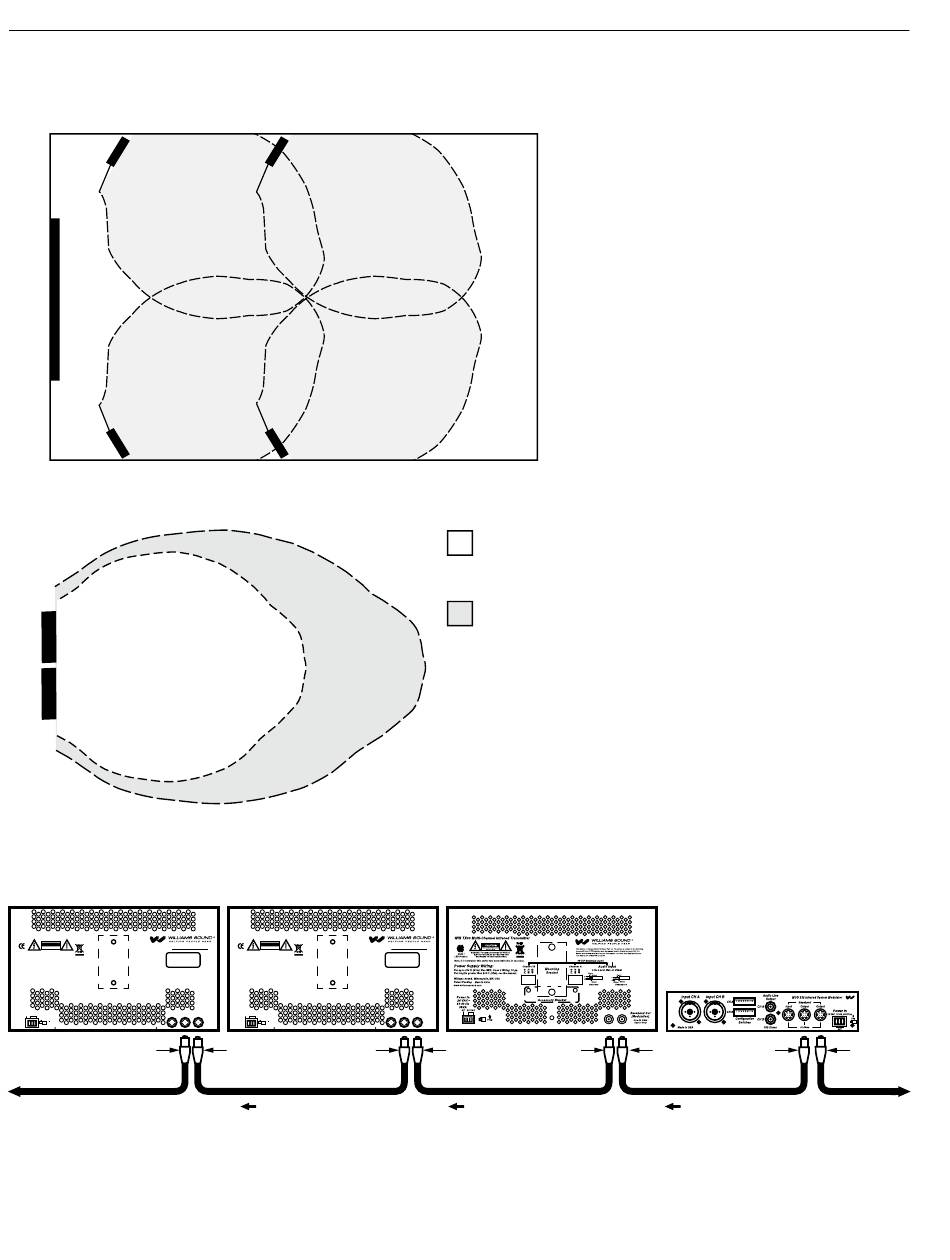

Multiple Emitters Installed to Maximize Coverage
Figure 12A
WIR TX9
WIR TX9
Figure 12B
WIR TX9
WIR TX9
Figure 13: Connecting Multiple TX9 Emitters
WIR TX9 EMITTER #3 (REAR)
Multi-Channel Infrared Transmitter
RoHS
CAUTION
w w w . w i l l i a m s s o u n d . c o m
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Class 1 WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE THIS
LED Product
EQUIPMENT TO RAIN OR MOISTURE.
Mounting
Note: It is normal for this unit to feel warm while it is in operation.
Bracket
Power Supply Wiring:
Use NEC, Class 2 Wiring, 18 ga. minimum,
200 ft. (70m) maximum length (18 ga.)
Baseband Signal Wiring:
Baseband Signal Wiring:
Use 50 Ohm Coaxial Cable (RG58)
Use RG58 Coax,1000 ft. (350m) max. length
Williams Sound, Minneapolis, Minnesota, USA Made in U.S.A.
Patent Pending
Out Out
NC 24 VAC
Power In: ~
24VAC
Plug
50-60Hz
35VA
Power On Baseband On
BASEBAND
OUTPUT
TO ADDITIONAL EMITTERS
An unlimited number of WIR TX9 emitters can be daisy-chained together to maximize the coverage area.
Remember that each emitter needs its own power supply and cannot share a power supply with a
modulator or another emitter.
10
WIR TX9
WIR TX9
WIR TX9 EMITTER #2 (REAR)
Multi-Channel Infrared Transmitter
RoHS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Class 1 WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE THIS
LED Product
EQUIPMENT TO RAIN OR MOISTURE.
Mounting
Note: It is normal for this unit to feel warm while it is in operation.
Bracket
Power Supply Wiring:
Use NEC, Class 2 Wiring, 18 ga. minimum,
200 ft. (70m) maximum length (18 ga.)
Baseband Signal Wiring:
Use RG58 Coax,1000 ft. (350m) max. length
Williams Sound, Minneapolis, Minnesota, USA Made in U.S.A.
Patent Pending
Baseband
(Modulation)
In
NC 24 VAC
Power In: ~
50 Ohms
24VAC
Plug
50-60Hz
35VA
Power On Baseband On
BASEBAND BASEBAND
INPUT OUTPUT
TO THIRD TX9 EMITTER
A262
COVERAGE AREA
WITH SINGLE EMITTER
COVERAGE AREA
WITH SECOND EMITTER
ADDED TO SAME
EMISSION POINT
(50% INCREASE)
WIR TX9 EMITTER #1 (REAR)
w w w . w i l l i a m s s o u n d . c o m
Baseband Signal Wiring:
Use 50 Ohm Coaxial Cable (RG58)
Baseband
(Modulation)
Out Out In
50 Ohms
BASEBAND BASEBAND
INPUT OUTPUT
TO SECOND TX9 EMITTER
Figure 12A and 12B: Overlapping Illumination
Patterns to Cover Larger Listening Areas
A263
MOD 232 MODULATOR (REAR)
BASEBAND BASEBAND
INPUT OUTPUT
TO TX9 EMITTER
BASEBAND
OUTPUT
TO ADDITIONAL
EMITTERS
A256
MAN 132H
