Williams Sound Language Interpretation System WIR SYS 4 Specification Sheet

SoundPlus ® Language Interpretation System •
D
D
ADA COURTROOM ASSISTIVE LISTENING SYSTEM
Description:
The Language Interpretation System, model WIR SYS 4, is the ideal package for courtrooms that may be required
to translate up to four languages simultaneously. Participants wear the RX22-4 body-pack style receiver to listen to
the language of their choice. They can sit anywhere in a 11,000 ft
comfort level. For the hard of hearing participant, the RX22-4 receiver can be used with a neckloop (included) to
amplify the participant's telecoil equipped hearing aid. SoundPlus infrared technology ensures privacy and securi-
ty: the message of the proceeding will not travel outside the walls of the courtroom.
Each WIR SYS 4 package includes: two (2) TX9 emitters, two (2) MOD 232 modulators, four (4) RX22-4 receivers,
four (4) HED 021 headphones, one (1) NKL 001 neckloop, and one (1) RPK 005 rack panel kit. The WIR SYS 4 meets
and exceeds government ADA regulations for public hearing assistance, and is backed by a five-year warranty.*
MOD 232 Modulator:
Size, Weight:
Color:
Rack Mount:
Power Supply:
Modulation:
Carrier Frequency:
Signal-to-Noise Ratio:
Frequency Response:
Total Harmonic Distortion:
Audio Processing:
Auto Carrier Shut-Off:

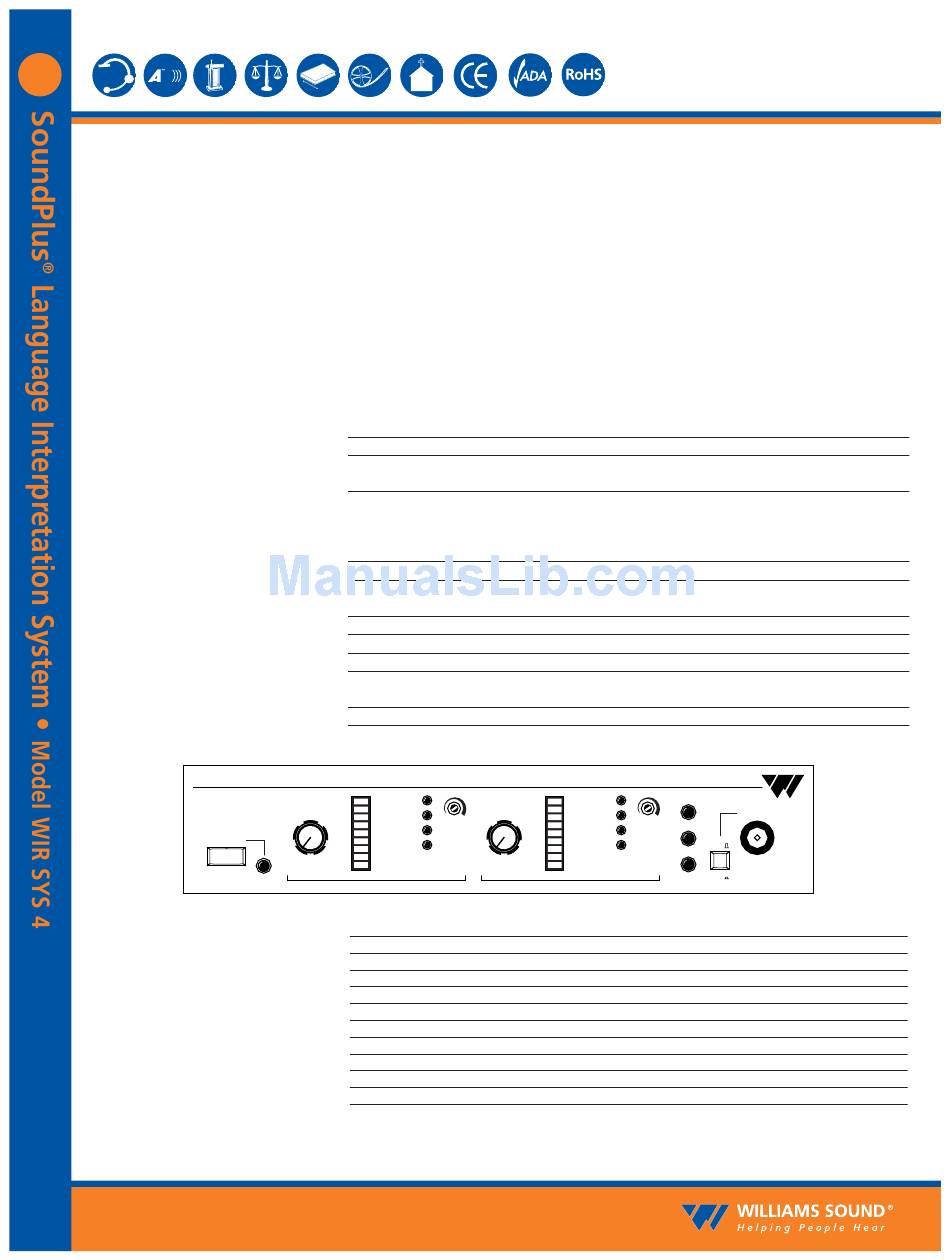

Fig. 1: MOD 232 Front Panel
Two Channel Infrared System Modulator
Microprocessor Controlled
Frequency Synthesized
Power
Power Switch:
Power Indicator:
Audio Level Controls:
Audio Indicators:
Carrier LEDs:
Compress Control:
Input Mix LED:
Stereo LED:
Phones Switch:
Phones Output:
Infrared Test LED:
NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE!
*90 days on accessories
©2006, Williams Sound Corp. MCAT 030D
8.5" W x 8.2" D x 1.7" H (21.5 cm x 20.8 cm x 4.4 cm), 3.1 lbs (1.5 kg)
Black epoxy paint with white legends
1/2 rack space wide, 1 rack space high, one or two modulators may be mounted in a single
IEC rack space with RPK 005 (single) or RPK 006 (double) Rack Mount Kits
Wall Transformer, 24VAC, 50-60 Hz, 15VA
North America:
Europe:
UK:
FM Wideband, +50kHz deviation, 50uS pre-emphasis
Channel A: Selectable, 2.3/2.8/3.3/3.8 MHz,
Channel B: Selectable, 2.3/2.8/3.3/3.8 MHz
More than 60dB
30 to 16,000 Hz, +1 dB, -3 dB, electrical response
Less than 2%, electrical response
Compression (slope) adjustable from 1:1 to 4:1
Switchable compression gain: Moderate: 16 dB. Max: 33 dB
15-minute timer shuts off carrier when no audio is present (can be disabled)
+9 3.8
+6
5
+3
4 6 3.3
Compress
0
7
3
- 3
2.8
8 -6
2
-9
2.3
9
1
-12
Frequency
0 10
-15
(MHz)
-18
Level
Channel A
Two-position push button, ON/OFF
Green LED
CHA and CHB Input Level, rotary knobs
CHA and CHB Audio Level, 10-segment LED's
4 green LED carrier "on" indicators per channel (indicates frequency, malfunctions)
1:1 to 4:1
Indicates inputs A and B audio are mixed and transmitted by CHA, CHB off
Indicates stereo mode
Selects CH1 or CH2 for phones when not in stereo mode
1/4" TRS headphone jack. Accepts stereo, mono, and any impedance phones.
IR LED for receiver testing, monitoring, and audio signal testing.
2 area and can adjust the volume to meet their
TFP 016, UL/CSA
TFP 027-01, 2-pin Schuko plug, CE
TFP 027-02, 3-pin UK plug, CE
+9 3.8
+6
5
+3
4 6 3.3
Compress
0
7
3
- 3
2.8
8 -6
2
-9
2.3
9
1
-12
Frequency
0 10
-15
(MHz)
-18
Level
Channel B
1
Model WIR SYS 4
Williams Sound
Inputs Mixed
Phones
Stereo
CH A
IR
CH B
