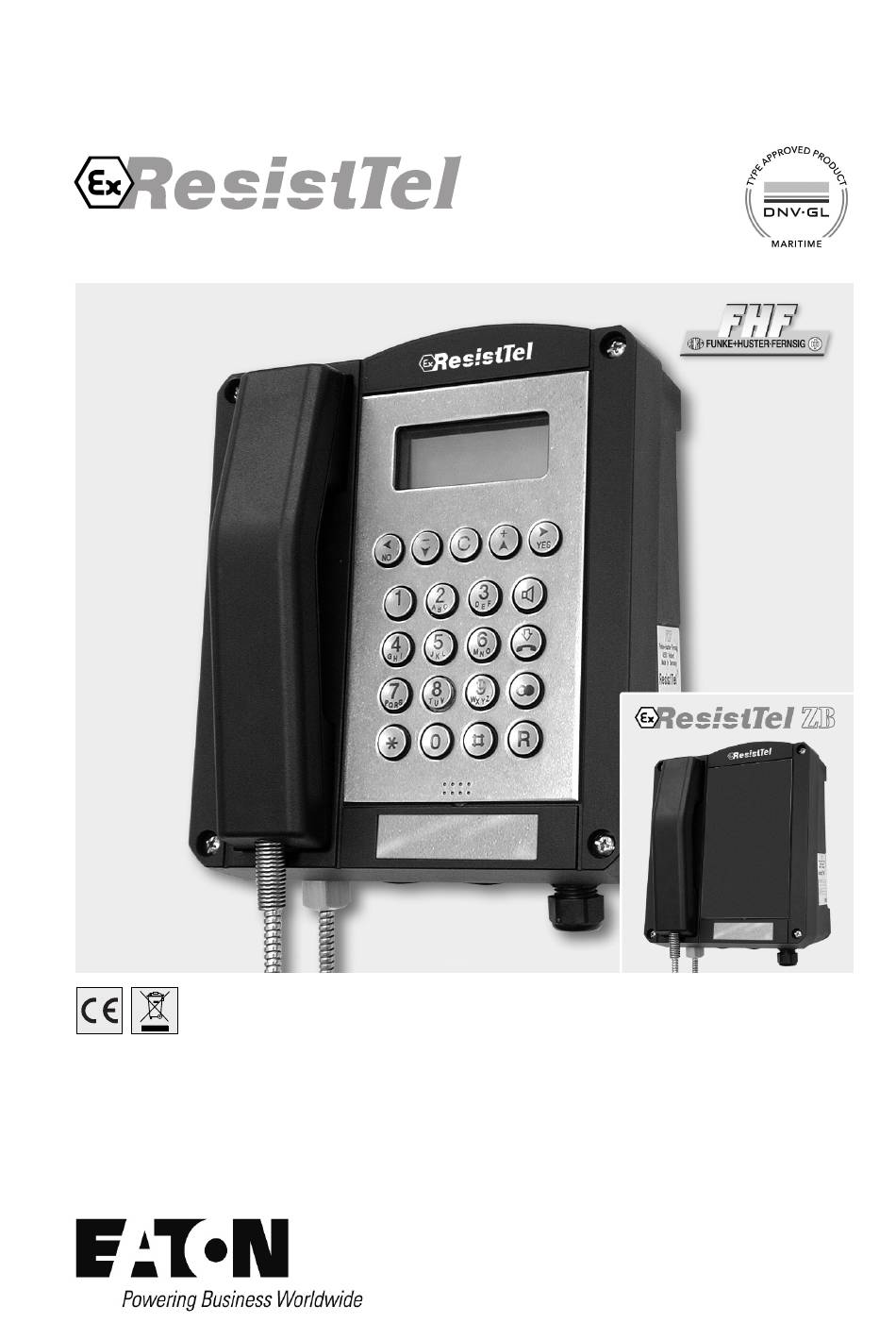

- Page 1 FHF BA 9701-22 01/19 Robust, weather-resistant telephone Operating instructions...
- Page 2 Foreword Our explosion-proof, weather-resistant telephone is a captivating product on account of its precision, convenience, long service life and reliability. It is freely programmable and the optimum choice for adverse ambient conditions. Be it seawater, high atmospheric humidity, dust or the toughest mechanical strains, the weather-resistant telephone accomplishes its aim in any conditions.
-
Page 3: Table Of Contents
Table of contents General operating instructions ............4 Overview of the device ................ 5 Display and keyboard ................. 8 Contents after unpacking ..............9 ZB version notes ................. 9 Explosion protection – device description ........10 Characteristic data ................13 Identification .................. -
Page 4: General Operating Instructions
Phone: +49 208 82 68 256 Fax: +49 208 82 68 377 e-mail: fhf-support@eaton.com If a fault occurs which cannot be rectified by telephone, please send the whole telephone along with a copy of the sales receipt to the following address:... -
Page 5: Overview Of The Device

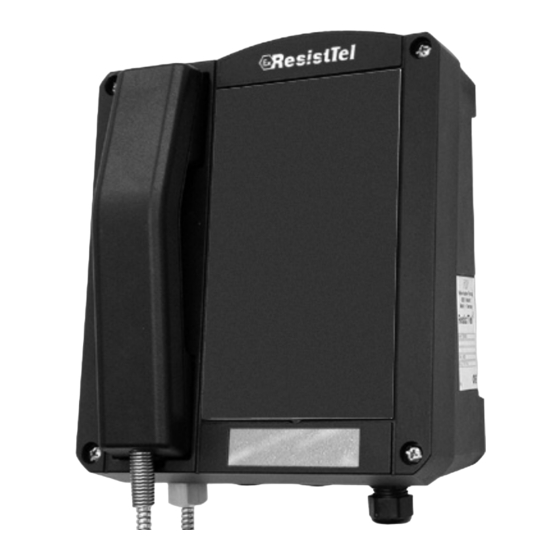

Support ExResistTel Gewerbeallee 15-19 D-45478 Mülheim an der Ruhr Germany If, on examination of the telephone, it is discovered that a fault is not the case, you will be charged a service fee. Overview of the device Note: In case of the ZB version, the keypad and display are replaced by a solid metal plate. - Page 6 Overview of the device Outside view of telephone lower part Inside view of telephone upper part...
- Page 7 Overview of the device Inside view of telephone lower part Protection Class II – Components Factory supplied with: plastic cable entry. Note: The ZB model does not have a display. Screws Loudspeaker Lower part cable of telephone Reed Display interface switch cable connector Keypad ribbon cable...
-
Page 8: Display And Keyboard
Display and keyboard (except for ZB version) -
Page 9: Contents After Unpacking
Contents after unpacking The delivery includes: ExResistTel telephone Operating instructions ExResistTel Operating instructions cable entry (optional) EU declaration of conformity (ATEX) 2 self-adhesive lettering plates ZB version notes The ExResistTel / ZB connects – depending on the features of the PABX –... -
Page 10: Explosion Protection - Device Description
Explosion protection – device description Regarding the explosion protection the ExResistTel telephone and the ExResistTel telephone in ZB version are identical. The explosion protection enables the user to make and receive calls within hazardous areas of zone 1 and zone 21, in presence of an explosive gas or dust atmosphere. - Page 11 Intrinsically safe terminals: Protruding from the compound (see connecting diagram on page 16), a 12-pole intrinsically safe terminal row is intended for connecting the receiver, which is permanently connected with the telephone housing, terminals 1 to 4, as well as the intrinsically safe accessories, terminals 5 to 10.
- Page 12 be used to screw the bracket securely onto to the housing floor (see overview of the device on page 6). Thus, if the constructor wants to use the metal bracket, the first thing he has to do, is to fix it to the housing floor.
-
Page 13: Characteristic Data
Characteristic data 1. Non-intrinsically safe electrical circuits Telephone network (Terminals A / B No.: 13 – 14) Maximum input voltage U (ringing voltage) AC 90 Admissible frequency range 16...54 Maximum input voltage U (supply voltage) DC 66 Maximum rated input current Maximum input short circuit current I (At the input of this device there is a melting fuse with a breaking capacity of 35 A) -
Page 14: Identification
Headphones accessory (identification) (Terminal pair HSS No.: 9 – 10) Maximum output voltage Maximum output current Maximum output power Maximum external capacitance Maximum external inductivity All intrinsically safe output electrical circuits have a linear output characteristic curve. 3. Ambient temperature range -25°C <... -
Page 15: Assembly And Installation
Assembly and installation The device must be installed on a plane surface only, in vertical operating position. Loosen the cover screws (2) (see overview of the device on page 5 to 7). and detach the upper part of the telephone (1). If the optional accessory headset or a second earpiece is being employed, attach the bracket (10) using two screws (11) to the rear panel of the lower part of the telephone. -
Page 16: Connection Diagram
Connection diagram Sling holder The holding strength for the handset is continuously adjustable. Loosen the screws (12) and move the stopping catches (13). Pushing the stopping catches together increases the holding strength whereas pulling them apart reduces it. Tighten the screws again. -
Page 17: Drilling Diagram
Drilling diagram For making a drilling template please use the following dimensions (in mm). The diameter of the drilled hole is dependent on the screw employed (screw diameter max. 8 mm) and the type of supporting base material (steel, wood, concrete, plasterboard etc.) and must be chosen accordingly. -
Page 18: Start-Up
Start-up The ExResistTel telephone is ready for operation as soon as it has been connected to the telephone network. Maintenance The ExResistTel telephone contains no parts that have to be maintained. Handset mode (except ZB version) When you pick up the handset, you are in handset mode. Using the keys , you can adjust the handset volume for talking. -
Page 19: Working With The Headset
Working with the headset (except ZB version) If the headset has been connected correctly, it takes the place of hands- free talking. For this reason, hands-free talking with the headset is not possible. If you switch on the ResistTel with the key , you are operating in headset mode. -
Page 20: Menu
Menu (except ZB version) Starting the menu Press the key You are now situated in the main menu. The top line of the display indicates the menu in which you are located. The lower line indicates which menu item is selected. Selecting menu items Press the key The upper line of the display remains unchanged. -
Page 21: Main Menu
Main Menu (except ZB version) With the aid of the key , you can make selections under the following items: Telephone Book For selecting a telephone number from the • telephone book memory. Change Phonebook For creating new telephone book entries •... -
Page 22: Submenu: Telephone Book
Submenu – Telephone Book (except ZB version) You have the option of dialling up to 50 telephone numbers from the telephone book. To store and/or change numbers, see the menu item "Change telephone book". You can select from the telephone book entries using the key Examples: FIRE BRIGADE dials the telephone number shown on the display... -
Page 23: Submenu: Change Telephone Book
Submenu – Change Telephone Book (except ZB version) You can store up to 50 telephone numbers and their associated names. Enter the numbers and names in their order of importance because they later appear on the display in the order in which they were entered (e.g. fire brigade before canteen). -
Page 24: Submenu: Lock / Pin
Technical support in Germany, located in Mülheim an der Ruhr: Telephone 0208 82 68 256 0208 82 68 377 e-mail fhf-support@eaton.com From outside of Germany, please prefix the country code: Telephone +49 208 82 68 256 +49 208 82 68 377... -
Page 25: Submenu: Settings
Submenu – Settings (except ZB version) With the aid of the key , you can make selections under the following items: Ringer - For setting the ringer volume • - For setting the ringer melody Speaker Volume - For setting the loudspeaker volume •... -
Page 26: Submenu: Languages
Submenu - Languages (except ZB version) You can make selections under the following items with the aid of the For setting the menu language to German German • For setting the menu language to English English • For setting the menu language to Spanish Spanish •... -
Page 27: Menu Overview
Menu overview (except ZB version) Main Menu Telephone Book Name #1 Telephone book entry #1 is dialled Name #50 Telephone book entry #50 is dialled Change Telephone Book New Entry Add a new entry to the telephone book Change Entry A telephone book entry is changed Delete Entry A telephone book entry is deleted... -
Page 28: Technical Data
Technical data Warning! In order to maintain the explosion protection it is of paramount importance to observe the information given in the chapter “Explosion protection – characteristic data” on pages 13 and 14. Note: Except for ZB version for items marked with an asterisk *). Connection data Supply voltage 24 V... - Page 29 Keyboard *) - Metal keyboard with protection against ice. - 21 keys with ABC inscription for name entries. Position of Mounted upright on the wall. The device must be operation mounted on a plane surface only. Protection Class I M20 x 1.5 sealing plug or threaded 1/2” NPT adapter for cable entry assembly.
- Page 30 - Approx. 90dB(A) at a distance of 1 m at 50 V Ringer volume 50 Hz (In the default settings. The maximum volume is also dependent on the selected melody and on the power-supply conditions). - 6-step volume and mute mode can be set via the menu.
-
Page 31: Use In Marine And Offshore Segments
Use in marine and offshore segments The ExResistTel telephone is certified for use in marine and offshore segments by DNV-GL in accordance with IEC 60945 and DNVGL-CG- 0339 and is registered under the certificate no. TA00000RT. The devices are classified as follows: Temperature Humidity Vibration... -
Page 32: Service
Service You have purchased a state-of-the-art product manufactured by FHF and subject to stringent quality controls. If you have questions regarding the telephone or if a malfunction has occurred – even after the guarantee period – please contact FHF (see page 4). Please have the type and article number ready (these numbers can be found on the type plate) when you contact us. -
Page 33: Ce Symbol
7. The stipulated position of utilisation must be adhered to. The telephone must be installed on a plane surface only, in vertical operating position. 8. Magnetic fields with energy technical frequencies can cause a slight impairment of the listening quality. If this is the case, please ensure that the telephone is installed at a suitable location. -
Page 34: Index Of Catchwords
Index of catchwords Assembly ........ 15 Languages ......26 Lock / PIN ......24 Characteristic data ....13 Loudspeaker volume ..... 18 CE symbol ......33 Change telephone book ..23 Maintenance and servicing ... 32 Complete lock ....... 24 Main menu ...... - Page 35 Funke + Huster Fernsig GmbH · Gewerbeallee 15-19 · D-45478 Mülheim an der Ruhr · Germany Phone +49 - 208 - 82 68 - 0 · Fax +49 - 208 - 82 68 - 286 · Mail info@fhf.de · www.fhf.de Orders : fhf- orders@eaton.com · Requests: fhf- sales@eaton.com · Support: fhf- support@eaton.com Eaton’s Crouse-Hinds usiness Eaton is a registered trademark.
