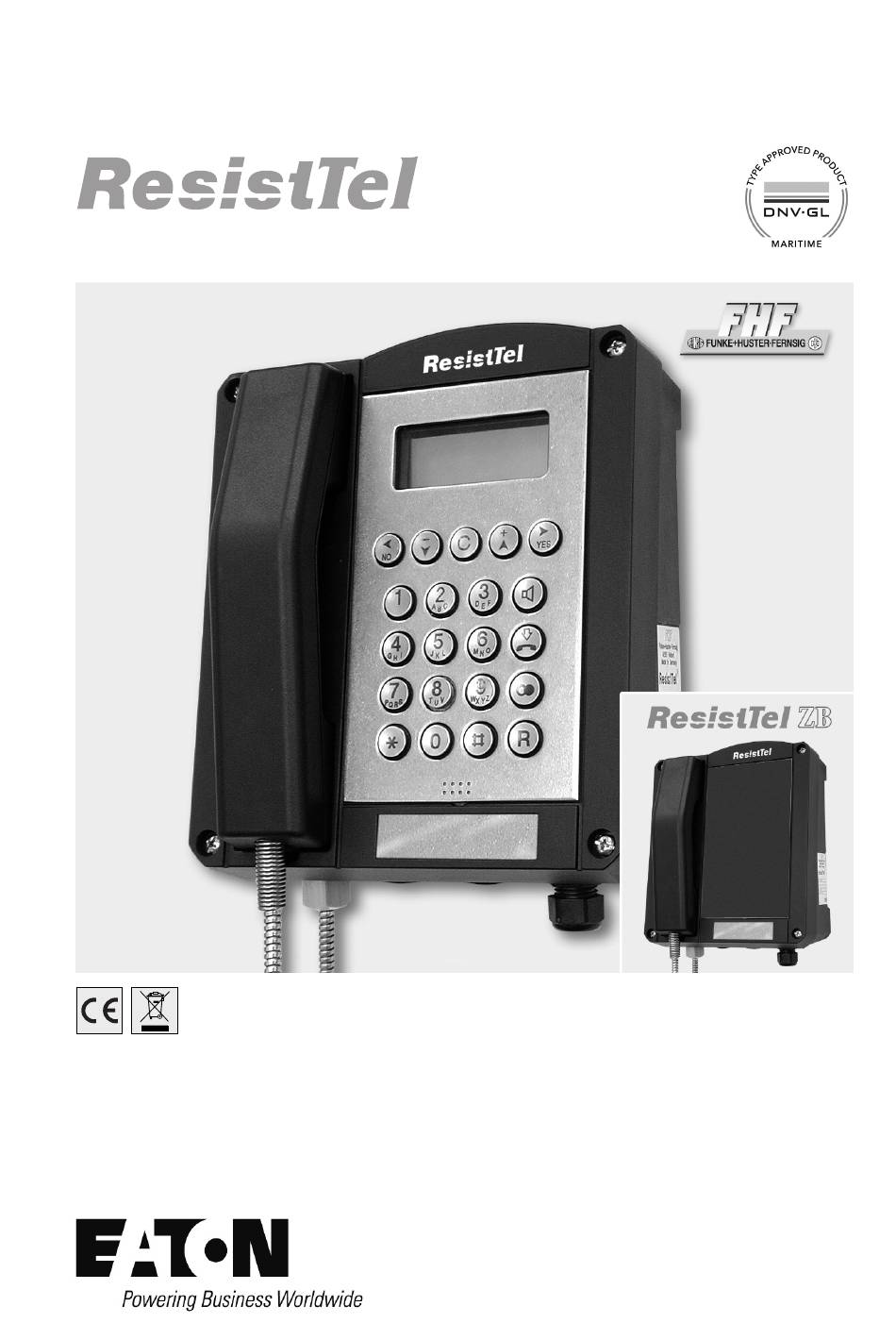

- Page 1 FHF BA 9700 01/17 Robust, weather-resistant telephone Operating instructions...

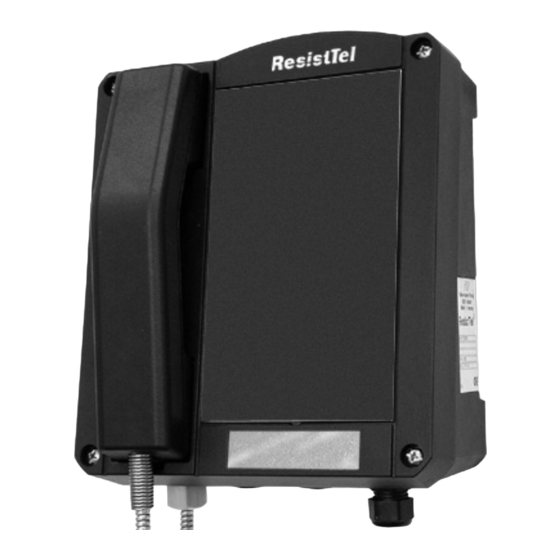

- Page 2 As a telephone suitable for connecting to the public telephone network and to private automatic branch exchanges, the ResistTel always ensures reliable connections. ResistTel ZB is designed for telephone exchange operation and corresponds to the ResistTel, except for keypad and display.
-
Page 3: Table Of Contents
Table of contents General operating instructions ............4 Overview of the device ................ 5 Display and keyboard ................. 8 Contents after unpacking ..............9 ZB version notes ................. 9 Assembly and installation ..............10 Connection diagram ................11 Sling holder ..................11 Drilling diagram ................. -
Page 4: General Operating Instructions
4. The ZB version is not equipped with keypad and display, therefore not all the features are available with this version. 5. The ResistTel has a handset module with a dry reed contact as a hook switch. In order to terminate an existing call connection, the handset must be hung up. -
Page 5: Overview Of The Device
If a fault occurs which cannot be rectified by telephone, please send the whole telephone along with a copy of the sales receipt to the following address: Support ResistTel Gewerbeallee 15-19 D-45478 Mülheim an der Ruhr Germany If, on examination of the telephone, it is discovered that a fault is not the case, you will be charged a service fee. - Page 6 Overview of the device Outside view of telephone lower part Inside view of telephone upper part...
- Page 7 Overview of the device Inside view of telephone lower part Cable entry Note: The ZB version is not equipped with a display...
-
Page 8: Display And Keyboard
Display and keyboard (expect for ZB version) -
Page 9: Contents After Unpacking
2 self-adhesive lettering plates ZB version notes The ResistTel / ZB connects – depending on the features of the PABX – with the PABX while lifting the handset. The ResistTel / ZB can be called also, because the ringing circuit is built in. -
Page 10: Assembly And Installation
Assembly and installation The device must be installed on a plane surface only, in vertical operating position. Loosen the cover screws (2) (see overview of the device on page 5 to 7). and detach the upper part of the telephone (1). If the optional accessory headset or a second earpiece is being employed, attach the bracket (10) using two screws (11) to the rear panel of the lower part of the telephone. -
Page 11: Connection Diagram
Connection diagram Sling holder The holding strength for the handset is continuously adjustable. Loosen the screws (12) and move the stopping catches (13). Pushing the stopping catches together increases the holding strength whereas pulling them apart reduces it. Tighten the screws again. -
Page 12: Drilling Diagram
Drilling diagram For making a drilling template please use the following dimensions (in mm). The diameter of the drilled hole is dependent on the screw employed (screw diameter max. 8 mm) and the type of supporting base material (steel, wood, concrete, plasterboard etc.) and must be chosen accordingly. -
Page 13: Handset Mode
If you keep the key depressed and replace the handset, you switch to hands-free-talking mode. Hands-free mode (except ZB version) If you switch on the ResistTel using the key you are in hands-free- talking mode. Using the keys you can adjust the loudspeaker volume for talking. -
Page 14: Working With The Headset
If the headset has been connected correctly, it takes the place of hands- free talking. For this reason, hands-free talking with the headset is not possible. If you switch on the ResistTel with the key , you are operating in headset mode. If you lift the handset while in headset mode, the handset assumes a higher priority. -
Page 15: Menu
Menu (except ZB version) Starting the menu Press the key You are now situated in the main menu. The top line of the display indicates the menu in which you are located. The lower line indicates which menu item is selected. Selecting menu items Press the key The upper line of the display remains unchanged. -
Page 16: Main Menu
Main Menu (except ZB version) With the aid of the key , you can make selections under the following items: Telephone Book For selecting a telephone number from the • telephone book memory. Change Phonebook For creating new telephone book entries •... -
Page 17: Submenu: Telephone Book
Submenu – Telephone Book (except ZB version) You have the option of dialling up to 50 telephone numbers from the telephone book. To store and/or change numbers, see the menu item "Change telephone book". You can select from the telephone book entries using the key Examples: FIRE BRIGADE dials the telephone number shown on the display... -
Page 18: Submenu: Change Telephone Book
Submenu – Change Telephone Book (except ZB version) You can store up to 50 telephone numbers and their associated names. Enter the numbers and names in their order of importance because they later appear on the display in the order in which they were entered (e.g. fire brigade before canteen). -
Page 19: Submenu: Lock / Pin
Technical support in Germany, located in Mülheim an der Ruhr: Telephone 0208 82 68 256 0208 82 68 377 e-mail fhf-support@eaton.com From outside of Germany, please prefix the country code: Telephone +49 208 82 68 256 +49 208 82 68 377... -
Page 20: Submenu: Settings
Submenu – Settings (except ZB version) With the aid of the key , you can make selections under the following items: Ringer - For setting the ringer volume • - For setting the ringer melody Speaker Volume - For setting the loudspeaker volume •... -
Page 21: Submenu: Languages
Submenu – Languages (except ZB version) You can make selections under the following items with the aid of the For setting the menu language to German German • For setting the menu language to English English • For setting the menu language to Spanish Spanish •... -
Page 22: Menu Overview
Menu overview (except ZB version) Main Menu Telephone Book Name #1 Telephone book entry #1 is dialled Name #50 Telephone book entry #50 is dialled Change Telephone Book New Entry Add a new entry to the telephone book Change Entry A telephone book entry is changed Delete Entry A telephone book entry is deleted... -
Page 23: Technical Data
Technical data Note: Except for ZB version for items marked with an asterisk *). Connection data Supply voltage 24 V to 66 V Supply current 15 mA to 100 mA Ringer voltage 24 V to 90 V (calling frequency 21...54 Hz) 30 V to 90 V (calling frequency 16.6...54 Hz) - Page 24 Position of Mounted upright on the wall. The device must be operation mounted on a plane surface only. Handset Sling protection Integrated, adjustable sling protection. Handset cord Steel-reinforced steel-clad cord. Earphone Dynamic capsule with stray-field coil for the inductive connection of hearing-aids. Microphone Electret microphone capsule...
- Page 25 - approx. 95 dB(A) at a distance of 1 m at 50 V Ringer volume 50 Hz (In the default settings. The maximum volume is also dependent on the selected melody and on the power-supply conditions). - 6-step volume and mute mode can be set via the menu.
-
Page 26: Use In Marine And Offshore Segments
Use in marine and offshore segments The ResistTel telephone is certified for use in marine and offshore segments by DNV-GL in accordance with IEC 60945 and DNVGL-CG- 0339 and is registered under the certificate no. TA00000RT. The devices are classified as follows:... -
Page 27: Service
Service You have purchased a state-of-the-art product manufactured by FHF and subject to stringent quality controls. If you have questions regarding the telephone or if a malfunction has occurred – even after the guarantee period – please contact FHF (see page 4). Please have the type and article number ready (these numbers can be found on the type plate) when you contact us. -
Page 28: Ce Symbol
6. Before repair is performed or before replacement of the telephone, it must be disconnected from the voltage supply. If it is unavoidable that the power be switched on during servicing or repair, then this must only be performed by suitably trained specialist personnel. 7. -
Page 29: Index Of Catchwords
Index of catchwords Assembly ........ 10 Maintenance and servicing ... 27 Main menu ......16 CE symbol ......28 Menus ........15 Change telephone book ..18 Menu overview ....... 22 Complete lock ....... 19 Connection diagram ....11 Open Listening ...... 13 Overview of device .... - Page 30 Funke + Huster Fernsig GmbH · Gewerbeallee 15-19 · D-45478 Mülheim an der Ruhr · Germany Phone +49 - 208 - 82 68 - 0 · Fax +49 - 208 - 82 68 - 286 · Mail info@fhf.de · www.fhf.de Orders : fhf- orders@eaton.com · Requests: fhf- sales@eaton.com · Support: fhf- support@eaton.com Eaton’s Crouse-Hinds usiness Eaton is a registered trademark.
