PMXM01
Twinning card for Matrix
Installation manual
Introduction
The Twinning function is used to synchronize twin gates:
therefore there will be a Master gate and a Slave gate.
However it is possible to command each gate individually (to allow
pedestrian opening for example).
The synchronization expects the gates to work at the same speed and
same slow down, no matters if gates have different legth.
Speed will adjust automatically during cruise.
However it is also possible to programm the two Matrix systems
independently, every one with its own working times.
In order to synchronize the two systems and activate the TWINNING
function, it is necessary to plug the TWINNING cad on each system.
In this way both motors will be able to exchange mutual communication.
Both cards shall be wired together using a shielded bipolar cable, while each
Matrix shall be set up, through parameter H.6. one as MASTER and the
other as SLAVE.
Master and slave
The Master system is the main one: any safety device, start wired contact,
and remote control shall be connected here. It starts any duty cycle.
The Slave system is free of any safety device, start wired contact and
remote control, but it can stop the Master gate when encountering an
obstacle. In this case both motors will reverse.
The Slave system starts just when the Master system starts and stops
when the Master system stops. If the Master gate has completed the duty
cycle and the Slave not yet, the Slave will be allowed to complete it anyhow.
Under these conditions, the following two scenarios may be set up (the
Master gate commands)
1 Full opening: Master and Slave start opening together and stop when
opening is completed; if automatic closing is set, both Master and Slave will
start closing together.
2 Pedestrian/partial opening: the Master will activate the pedestrian
partial opening while the Slave will remain still.
If automatic closing has been set, the Master will close.
The Slave can open and close independently (step-by-step mode),
remaining the Master still. The automatic closing even if set up, will remain
OFF. In any moment the MASTER may command over the SLAVE.
The Master works even when the Slave is OFF or temporarily
disconnected. It is important to choose which motor will be MASTER and
which will be SLAVE since they behave in a different way.

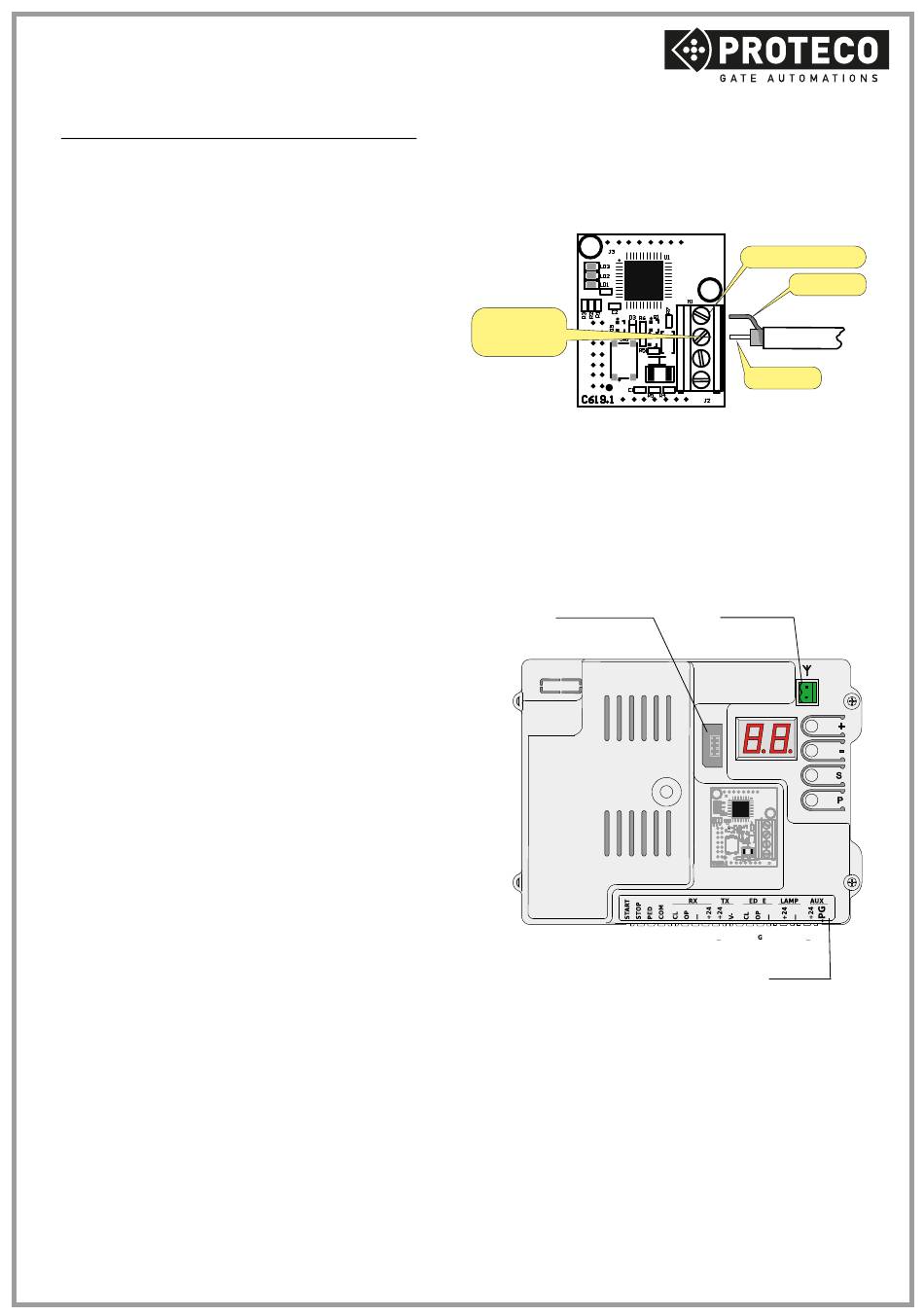

Wiring diagram
DATA
Above a TWINNING card top view showing wirings (a shielded or RG58
cable is required). A small section cable will be sufficient, since it is used
just for signal tranfer.
The TWINNING card has to be plugged in the proper seat included in the
control unit: the according wire can come out from terminals block,
INTERFACE CARD or antenna slot, or it is possible to drill a hole on the
plastic housing.
Here below some possible suggestions about where the card wire may
come out:
INTERFACE CARD
After outlining the wiring plan, proceed to remove the plastic cover: pull
out the antenna connector, loose the 2 screws and open the housing.
If you decided to drill a hole to let the wires pass through, do it at this
stage.
Wire the signal and core of the shielded cable to the TWINNING card
terminals, and then plug the card in the slot.
Matrix is available in different models, but the card location is the same
and has just one plug orientation that prevents incorrect insertion.
PROTECO S.r.l.
Via Neive,77 - 12050 CASTAGNITO (CN) ITALY
Tel. +39 0173 210111 - Fax +39 0173 210199
info@proteco.net - www.proteco.net
GND
SHIELD
CORE
ANTENNA
TERMINAL BLOCK
