- Page 1 Alternative Drive Controls Twister Switch Owner’s Manual - Maintenance Guide mo-Vis Series Mechanical Normal Open Switch...
-
Page 2: Table Of Contents
Table of Contents Customer Satisfaction .................... i Important Information..................ii-iii Warranty..............................ii Supplier Reference ..........................ii Warning Labels...........................iii Limited Liability ..........................iii Design & Function ....................1 Intended Use ............................1 Features..............................1 Specifications ............................1 Parts and Accessories .................... 2 Available Twister Switches.......................2 Preparations ............................2 Installation Plan...........................2 Installation Instructions ..................3-7 Twister on Bent Tube ........................3 Twister Basic ............................3... -
Page 3: Customer Satisfaction
They also contain important safety and maintenance information, as well as describe possible problems that can arise during use. For further assistance, or more advanced applications, please contact your supplier or Stealth Products at (512) 715-9995 or toll free at (800) 965-9229. -
Page 4: Important Information
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. -
Page 5: Warning Labels
Stealth Products does not hold responsibility for final integration of final assembly of product to end user. Stealth Products is not liable for user death or injury. -
Page 6: Design & Function

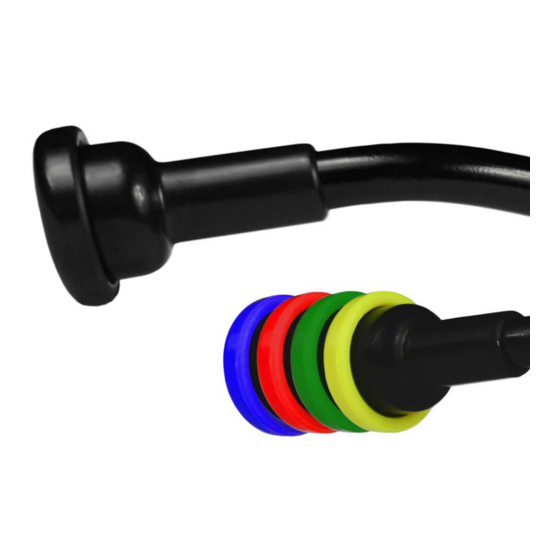

Design and Function Intended Use The Twister is an Input Control System for a device to be operated by a push button with a 3.5 mm jack connection ( e.g. power wheelchair or AAC device). It only requires a light activation force of 30 gr. and offers different mounting options for the different models. -
Page 7: Parts And Accessories
Installation Instructions Available Twister Switches Product Description Part Number Yellow (IDM-24) Twister Basic Cable Black (IDM-25) Red (IDM-26) (Available in 5 colors) Blue (IDM-27) Green (IDM-28) Red (IDM-34) Twister on Bent Tube, Black (IDM-35) Yellow (IDM-36) Long Cable (1500 mm) Blue (IDM-37) Green (IDM-38) Black (IDM-41) -
Page 8: Twister On Bent Tube
Installation Instructions Twister Basic • The Twister Basic is mounted on a plate of metal/plastic with two screws. A regular Phillips Screwdriver is required to mount screws. • Two types of screws are supplied: – M2.2 x 6.5 mm (0.087 in x 0.266 in) self-tapping screws for sheet thickness 0.5 mm to 2 mm (0.02 in to 0.079 in) –... -
Page 9: Satellite Twister
Installation Instructions Satellite Twister • The Satellite Twister comes with a special All-Round insert. This fits only into the housing of the All-Round/All-Round Lite Joystick. • Diameter of Satellite Twister rod - 6 mm (0.236 in) • Length of Satellite Twister rod - 100 mm (3.94 in) You can mount one or two Satellite Twisters to the All-Round/All-Round Lite Joystick. -
Page 10: Twister Dome Switch
Installation Instructions Twister Dome Switch Included in each Twister Dome Switch Package: • A pair of 3M Dual Lock interlocking self-adhesive fasteners 25 mm x 2 mm (0.866 in X 0.078 in) • One self-adhesive rubber pad 28 mm x 2 mm (1.102 in x 0.078 in) •... - Page 11 Installation Instructions NOTICE The dome switch casing cannot be replaced. To use the interlocking self-adhesive fasteners: 1. Remove the adhesive backing on one of the self-adhesive fasteners and place on the bottom of the Dome Switch casing. 2. Remove adhesive backing on the second fastener and place adhesive side down on flat surface.
-
Page 12: Operating The Twister
Installation Instructions Operating the Twister The Twister Switch is a single, mechanical, normally-open switch. It will activate when pressed down. To activate your Twister Switch, simply press anywhere on the top of the activation surface. You will feel and hear a clear and audible “click”. Twister Safety •... -
Page 13: Testing
Testing After installation of the Twister Switch, execute the following tests before the wheelchair is delivered or put into service. Check that the Twister Switch: – Is not bent or damaged. – Housing, cabling, and all connectors are not damaged. –... -
Page 14: First-Time Use
First Time Use Dealer Assistance During first time use by the user it is advised that the dealer or service technician assists and explains the different drive configurations to the customer (the user and/or their attendant). If needed, the dealer can make final adjustments. User Testing It is important that the customer is fully aware of the installation, how to use it, and what can be adjusted in order to gain as much mobility as possible. -
Page 15: Maintenance
Maintenance Cleaning To keep the Twister Switch functioning properly: – Disconnect the Twister Switch and wipe it clean with a damp cloth. – Use only non-aggressive disinfectant cleaning agents. Cleaning solutions that contain bleach, ammonia, chlorine, etc. should not be used. (Dish washing cleaners are acceptable.) Do not pull or wrap the cable around the Twister Switch WARNING... - Page 16 © 2022, Stealth Products, LLC Warranty Information Home Page Online User Manual Stealth Products, LLC · info@stealthproducts.com · www.stealthproducts.com (800) 965-9229 | (512) 715-9995 | 104 John Kelly Drive, Burnet, TX 78611 P120D244R6 Twister Switch.afpub May 8, 2023...
