Related Manuals for Stealth Products i-Connect 5
Summary of Contents for Stealth Products i-Connect 5

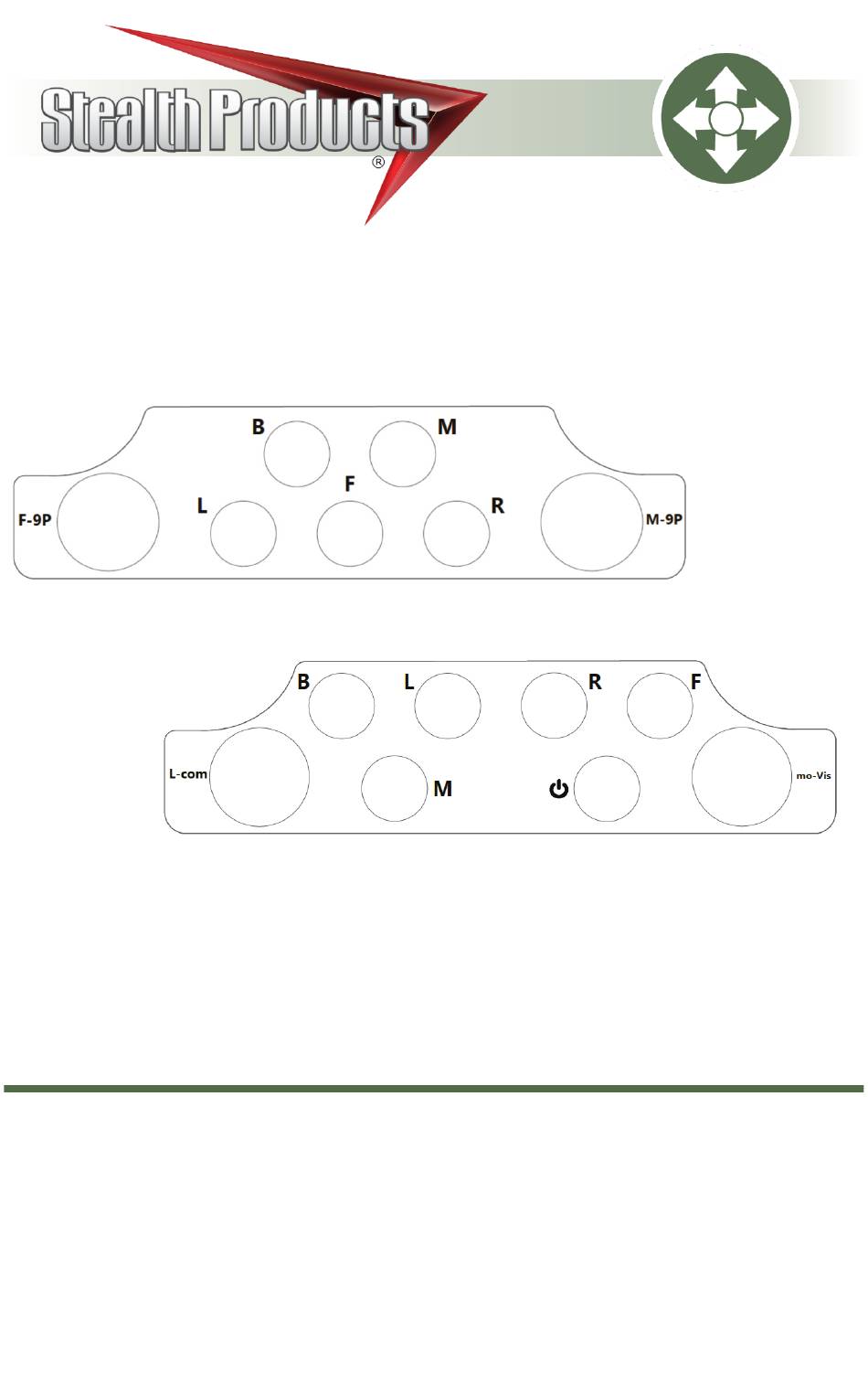

- Page 1 Alternative Drive Controls i-Connect Owner’s Manual - Maintenance Guide i-Connect 5 & 6 Switch Box...
-
Page 2: Table Of Contents
Table of Contents Customer Satisfaction ..............i Important Information............... ii-iii Warranty ..........................ii Supplier Reference......................ii Warning Labels........................iii Limited Liability ......................... iii Design & Function ............... 1-2 Safety Precautions......................1 Intended Use........................2 Features..........................2 Mounting..........................2 Installation Instructions .............. 3-6 Preparations ........................ -
Page 3: Customer Satisfaction
Customer Satisfaction Stealth Products is committed to 100% customer satisfaction. Your complete satisfaction is important to us. Please contact us with feedback or suggestions to help us improve the quality and usability of our products. You may reach us at:... -
Page 4: Important Information
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. -
Page 5: Warning Labels
Stealth Products does not hold responsibility for final integration of final assembly of product to end user. Stealth Products is not liable for user death or injury. Testing Initial setup and driving should be done in an open area free of obstacles until the user is fully capable of driving safely. -
Page 6: Design & Function
Design & Function Safety Precautions • The switch boxes are intended to be fitted on any power wheelchair with DB9 connection. • Incorrect use or installation may lead to risk of injury to the user and damage to the wheelchair or other property. •... -
Page 7: Intended Use
Design & Function Intended Use 5 Switch Box The 5 Switch Box allows the four directional commands and the mode command to be controlled by five switches with 1/8" mono plugs. This box in compatible with most wheelchair electronics and/or other devices that allow for switch control. It is also compatible with all i-Connect products. -
Page 8: Installation Instructions
Installation Instructions Preparations Only a qualified service technician may install the i-Connect switch box. An incorrect programming of the switch box or chair WARNING electronics may cause damage to the devices or injury to the user. Tools Use the proper tools to install and adjust the i-Connect switch box to the chair. Use the proper tools to install and adjust the switch box. -
Page 9: Required Tools
Installation Instructions Required Tools The tools you will need to complete the installation are: Hardware Description Phillips Machine Screws mounting Phillips Screwdriver Box to Bracket 5/32" Hex Wrench Button Head Screws on T-Nuts Tools are not provided. Screw Torque Specification 1/4-20 x 1/2"... -
Page 10: Parts Breakdown
Installation Instructions Parts Breakdown Item Description 5 Switch Switch Box Box Assembly* Butterfly Wing for IDH100-84 i-Connect 5-6 Switch 6-32 x 1/2" 6-32 x 1/2" Phillips Machine Flat Head Phillips Screw Machine Screw 1/4-20 x 1/2" Button 1/4-20 x 1/2 BHS... -
Page 11: Installing Switch Box To Chair
Installation Instructions Installing Switch Box to the Chair Step One: Using a 5/32" T-Handle, loosen the 1/4-20 x 1/2" Button Head Screws (4). Step Two: Angle the T-Nuts (1) so that they are parallel with the desired track location. Step Three: Slide the i-Connect through the track. Step Four: Align the i-Connect on the correct location on the track, tighten the 1/4-20 x 1/2"... -
Page 12: Software Configuration
Installation Instructions Switch Box Programming Layout - 5 Switch Box 9-Pin (Female) 1/8" mono for Reverse 1/8" mono for Mode function 1/8" mono for Left 1/8" mono for Forward 1/8" mono for Right 9-Pin (Male) Layout - 6 Switch Box 9-Pin (Female) 1/8"... -
Page 13: Q-Logic Setup
Installation Instructions Q-Logic Setup Q-Logic Programmer Bookmark Buttons Select options in the main menu. Button actions are displayed on-screen above corresponding buttons. In other menus, hold buttons to Bookmark Settings, and press button to quickly go to bookmark. Plus & Minus Navigation Toggles settings... - Page 14 Installation Instructions Q-Logic 2 Install the Switch Box and secure to the chair. Plug the female 9-pin into the Enhanced Display. If using an SCIM, plug the 9-pin into the SCIM module. If using the 6 Switch Box, plug the power mono plug into the On/Off jack on the hand control.
-
Page 15: R-Net Programming
Installation Instructions R-Net Programming Navigation Mode Up & Down button navigate Switch mode to drive, menus. Right power seating, or OBP button to open a (On-Board Programming) menu item and Left button to return to previous menu. Profile Switch between preset Plus &... -
Page 16: Mk6I
Installation Instructions MK6i Plug the female 9-pin into the digital input on the Sip 'N Puff with digital interface. If using the 6 Switch Box, plug the power mono jack into the Remote On/Off port (Port A) on the MK6i Display or Joystick. 1. -
Page 17: Testing
Testing Testing After the installation of the i-Connect Switch Box, execute the following tests before the wheelchair is delivered or put into service, in this order: • Operational Test • Test Drive Operational Test 1. Activate the Wheelchair 2. Check for any error messages. Do not proceed before resolving this error. Test Drive 1. -
Page 18: First-Time Use
First Time Use Dealer Assistance During first time use by the client, it is advised that the dealer or service technician assists and explains the different drive configurations to the customer (the user and/or the attendant). If needed the dealer can make final adjustments. User Testing It is important that the customer is fully aware of the installation, how to use it, and what can be adjusted in order to gain as much mobility as possible. -
Page 19: Care & Cleaning
Cleaning Cleaning Clean all parts of the i-Connect Switch Box and its connections on a regular basis. • Gently remove dust and dirt with a dry cloth. • If more cleaning is necessary, use only a non-aggressive disinfectant cleaning agent. •... - Page 20 © 2021, Stealth Products, LLC Warranty Information Home Page Online User Manual Stealth Products, LLC · info@stealthproducts.com · www.stealthproducts.com (800) 965-9229 | (512) 715-9995 | 104 John Kelly Drive, Burnet, TX 78611 P06D532R2 i-Connect 5 & 6 Switch Box.afpub Aug 24, 2021...
