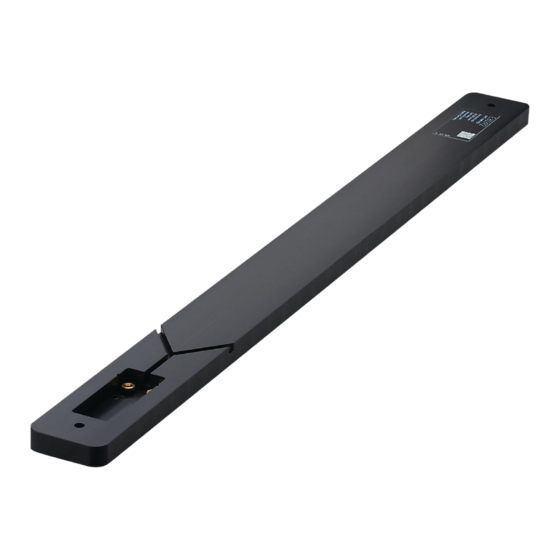

- Page 1 Operating instructions RFID antenna adapter E80392...
-
Page 2: Table Of Contents
E80392 detection range ........ -
Page 3: Preliminary Note
Supplementary note 1.2 Legal and copyright information © All rights reserved by ifm electronic gmbh. No part of these instructions may be reproduced and used without the consent of ifm electronic gmbh. All product names, pictures, companies or other brands used on our pages are the property of the... -
Page 4: Safety Instructions
E80392 RFID antenna adapter 2 Safety instructions General • The unit described is a subcomponent for integration into a system. – The system architect is responsible for the safety of the system. – The system architect undertakes to perform a risk assessment and to create documentation in accordance with legal and normative requirements to be provided to the operator and user of the system. -
Page 5: Intended Use
E80392 3 Intended use The article E80392 is an accessory for rectangular type RFID read/write heads. The accessory is used to change the field of the connected RFID read/write head. This leads to the following effects depending on the installation of the accessories: •... -
Page 6: Installation
Place the RFID read/write head in the cut-out of the E80392 (see next figure). w The sensing face of the RFID read/write head must point in the direction of the E80392. Fig. 1: The RFID read/write head is placed in the cut-out of the E80392. - Page 7 RFID antenna adapter E80392 Fig. 2: Turned E80392 ① Mounting holes u Use the mounting holes ① to fix the E80392 to a suitable surface.
-
Page 8: Technical Data
E80392 RFID antenna adapter 5 Technical data 5.1 E80392 detection range The figure below shows the detection range of an ANT515 with and without E80392. A 50 mm tag (E80384) was used for the measurement. ① ANT515 with E80392 [mm] ② ANT515 without E80392... -
Page 9: Maintenance, Repair And Disposal
6 Maintenance, repair and disposal The unit is maintenance-free. u Contact ifm in case of malfunction. u Do not open the housing as the unit does not contain any components which can be maintained by the user. The unit must only be repaired by the manufacturer. -
Page 10: Approvals/Standards
E80392 RFID antenna adapter 7 Approvals/standards For approvals and standards, the following information is available: • Test standards and regulations: documentation.ifm.com • EU declaration of conformity and approvals: documentation.ifm.com • Notes relevant for approval: Package insert of the device and documentation.ifm.com...
