RTKA211450DE0010BU

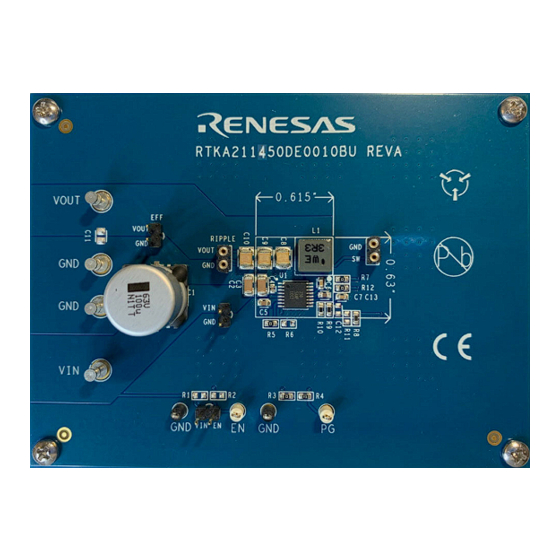

The RTKA211450DE0010BU board evaluates the
RAA211450
(HTSSOP version), a DC/DC
synchronous step-down regulator with programmable
switching frequency.
The RAA211450 supports a wide input voltage range
(from 4.5V to 42V) and adjustable output voltage. It
delivers up to a continuous 3A output current with a
premium load regulation and line regulation
performance.
V
IN
Up to 42V
C
IN1
R16UZ0040EU0101 Rev.1.01
Oct 7, 2022
VIN
C
IN2
R
IN1
EN
R
IN2
RAA211450
PGND
VCC
FS
VCC
SS
PG
AGND

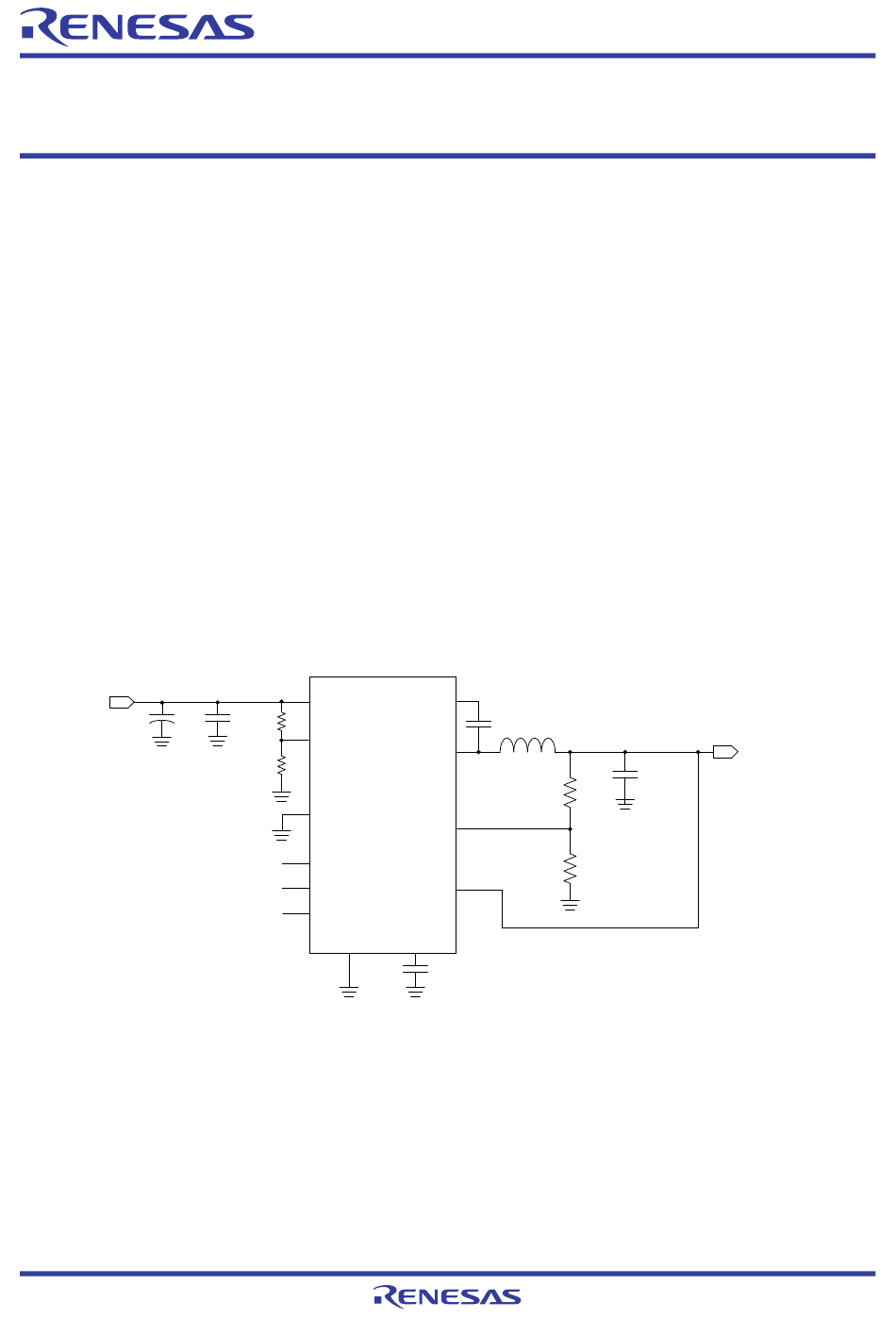

Figure 1. Simplified Circuit
Evaluation Board Manual
Features
▪ Simple and flexible design
▪ 4.5V to 42V V
▪ Convenient power conversion
Specifications
The following are the design specifications for the
RTKA211450DE0010BU:
▪ Input voltage (V
▪ Output voltage (V
▪ Maximum output current: 5A
BST
C
BOOT
SW
L
R
FB1
FB
R
FB2
EBIAS
VCC
C
VCC
range
IN
): 4.5V to 42V
IN
): 3.3V
OUT
V
OUT
3.3V
C
OUT
3×47µF
© 2022 Renesas Electronics
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTKA211450DE0010BU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Renesas RTKA211450DE0010BU

Summary of Contents for Renesas RTKA211450DE0010BU

  • Page 1 Evaluation Board Manual RTKA211450DE0010BU Features The RTKA211450DE0010BU board evaluates the RAA211450 (HTSSOP version), a DC/DC ▪ Simple and flexible design synchronous step-down regulator with programmable ▪ 4.5V to 42V V range switching frequency. ▪ Convenient power conversion The RAA211450 supports a wide input voltage range (from 4.5V to 42V) and adjustable output voltage.

  • Page 2: Table Of Contents

    RTKA211450DE0010BU Evaluation Board Manual Contents Functional Description ..............3 Operational Characteristics .

  • Page 3: Functional Description

    The RAA211450 (HTSSOP version) is an easy-to-use synchronous Buck switching regulator with integrated 90mΩ (high-side) and mΩ (low-side) MOSFETs. The RTKA211450DE0010BU board evaluates the operations of RAA211450 (HTSSOP version). The board allows you to evaluate the performance of the part with a different application circuit, and it provides a reference for a board layout.

  • Page 4: Board Design

    RTKA211450DE0010BU Evaluation Board Manual Board Design Figure 3. RTKA211450DE0010BU Evaluation Board (Top) Layout Guidelines For detailed layout guidelines reference the Layout Guidelines section in the RAA211450 Datasheet. R16UZ0040EU0101 Rev.1.01 Page 4 Oct 7, 2022...

  • Page 5: Schematic Diagram

    RTKA211450DE0010BU Evaluation Board Manual Schematic Diagram UNNAMED_1_SMCAP_I23_A Figure 4. RTKA211450DE0010BU Schematic R16UZ0040EU0101 Rev.1.01 Page 5 Oct 7, 2022...

  • Page 6: Bill Of Materials

    RTKA211450DE0010BU Evaluation Board Manual Bill of Materials Ref Des Description Manufacturer Part Number C8, C9, CAP, SMD,1210, 47µF, 10V, 10%, X7R, ROHS Murata GRM32ER71A476KE15L CAP, SMD, 0603, 1.0µF, 16V, 10%, X7R, ROHS C1608X7R1C105K CAP, SMD, 0603, 0.1µF, 16V, 10%, X7R, ROHS...

  • Page 7: Board Layout

    RTKA211450DE0010BU Evaluation Board Manual Board Layout Figure 5. Top Layer Figure 6. Second Layer R16UZ0040EU0101 Rev.1.01 Page 7 Oct 7, 2022...
  • Page 8 RTKA211450DE0010BU Evaluation Board Manual Figure 7. Third Layer Figure 8. Bottom Layer R16UZ0040EU0101 Rev.1.01 Page 8 Oct 7, 2022...

  • Page 9: Typical Performance Graphs

    RTKA211450DE0010BU Evaluation Board Manual Typical Performance Graphs = 24V, V = 3.3V, T = +25°C, unless otherwise noted. 3.287 5Vin 12Vin 3.285 24Vin 42Vin 3.283 3.281 3.279 5Vin 12Vin 3.277 24Vin 42Vin 3.275 Output Current (A) Output Current (A) Figure 10. Load Regulation Figure 9.

  • Page 10: Ordering Information

    RTKA211450DE0010BU Evaluation Board Manual = 24V, V = 3.3V, T = +25°C, unless otherwise noted. (Cont.) 50mV/Div 2A/Div SW 5V/Div 1V/Div Load 1A/Div 1V/Div 1A/Div SW 20V/Div 200µs/Div 200µs/Div Figure 15. Load Ramp from 50mA to 2.5A Figure 16. OCP by Short V...
  • Page 11 Renesas' products are provided only subject to Renesas' Terms and Conditions of Sale or other applicable terms agreed to in writing. No use of any Renesas resources expands or otherwise alters any applicable warranties or warranty disclaimers for these products.
