LIFE home integration AC 8R DL Instructions For Installation, Use And Maintenance Manual page 4

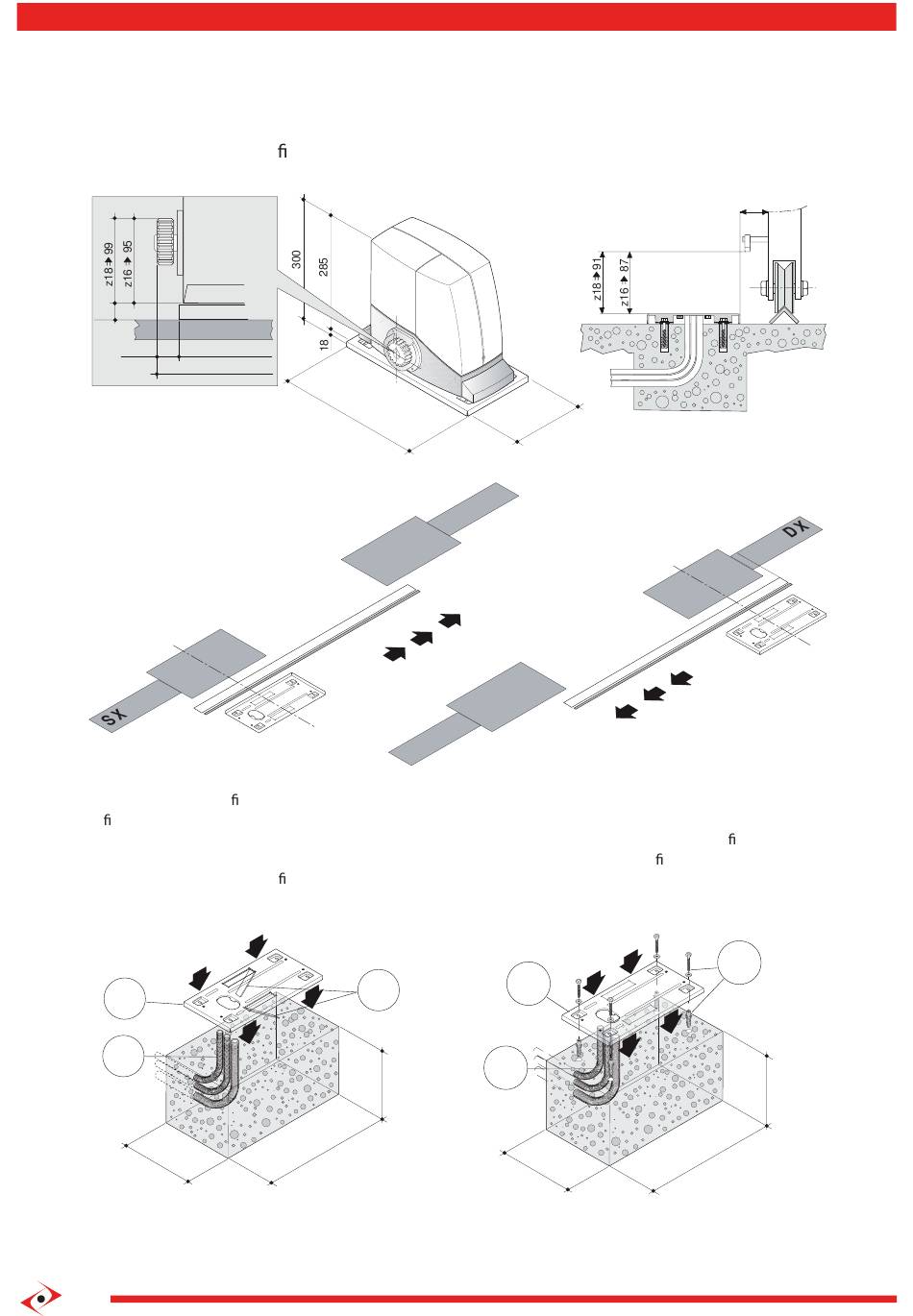

1.2 Installing operator components: positioning and installation of the anchorage plate
The area in which the operator is installed must provide adequate space for performing maintenance
and manual release operations.
a) Adhere to the dimensions in g.2.
18
22
AC003a
Left Hand
b) Observe the orientation in g. (3) for positioning the operator anchorage plate (R – L).
c) Refer to g. (2.2) for the respective heights for 16 or 18-tooth pinions.
d) Lay the electric cable pipes (4), allowing them to protrude and plugging them to prevent them from lling with debris.
Fasten the anchorage plate (1) to the concrete base with 4 expanding screw anchors (2), see g.(4.2); or sink in the fresh
concrete folding the two "L"s (3), see g.(4.1).
Fig.4.1
1
4
AC005
200
ATTENTION: If the operator is subject to heavy work conditions or if the weight of the leaf is over 300 kg,
the anchorage plate (1) must be sunk into the concrete.
4
170
192
335
3
350
Fig. (2)
170
Fig. (3)
Fig. (4)
1
4
250
200
Fig.4.2
2
AC010 AC010
35 350
45
Right Hand
250
