- Page 1 062204-510887-(03) XL/Pro Optical Disc Laminator Connectivity Guide © 2004 All rights reserved.
- Page 2 Notices: The information in this document is subject to change without notice. NO WARRANTY OF ANY KIND IS MADE WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. No liability is assumed for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
-
Page 3: Table Of Contents
Table of Contents Optical Disc Laminator Guide ...1 A. Unpacking and Inspection ...1 B. Installing the Laminator Software Driver...1 C. Connecting the Laminator to Your Duplicator ...3 D. Creating Discs with Your Duplicator MAX in Primo ...7 E. Connecting the Laminator to Your Duplicator XL/Pro ...7 Stand-Alone Mode...8... -
Page 5: Optical Disc Laminator Guide
Warranty Statement, Manual and other documentation. B. INSTALLING THE LAMINATOR SOFTWARE DRIVER When using the Laminator with a Primera Technology Disc Duplicator it will be necessary to install a driver and other software updates. This driver will allow the PC to control the functions of your Laminator. - Page 6 Make certain the Laminator has been plugged into power and turned on. Connect the Laminator to your PCs USB port using the USB cable included with this kit. g. Select "Install Software Automatically" and click Next. 2 Optical Disc Laminator Connectivity Guide...
-
Page 7: Connecting The Laminator To Your Duplicator
You may see a notice like the one shown here stating that the Accent Disc Laminator has not passed Windows Logo Testing. Click the Install Anyway button to continue installing the printer driver for your Laminator. Once the driver has finished installing, click the Finish button. - Page 8 Make certain the DuplicatorMax has been connected to the computer and is on and ready to use. 2) Press the Sequence Button on the front of the DuplicatorMax until the picker mechanism is positioned over a bin containing discs. 4 Optical Disc Laminator Connectivity Guide...
- Page 9 5 seconds to enter calibration mode. The LEDs on the front of the DuplicatorMAX will flash back and forth indicating that the unit is in calibration mode. Optical Disc Laminator Connectivity Guide 5 Press Simultaneously Until LEDs Toggle...
- Page 10 Sequence Button. e) Once the Picking Mechanism and Disc are perfectly aligned press the Pick Button to end calibration 6 Optical Disc Laminator Connectivity Guide Press Pause to Lower Mechanism to Laminator Tray Position...
-
Page 11: Creating Discs With Your Duplicator Max In Primo
Laminator in place of a CD Printer. You can then laminate pre-printed discs without having to connect the Duplicator or Laminator to a PC. Full Production Mode allows you to record, print and laminate discs all in one operation. Optical Disc Laminator Connectivity Guide 7... -
Page 12: Stand-Alone Mode

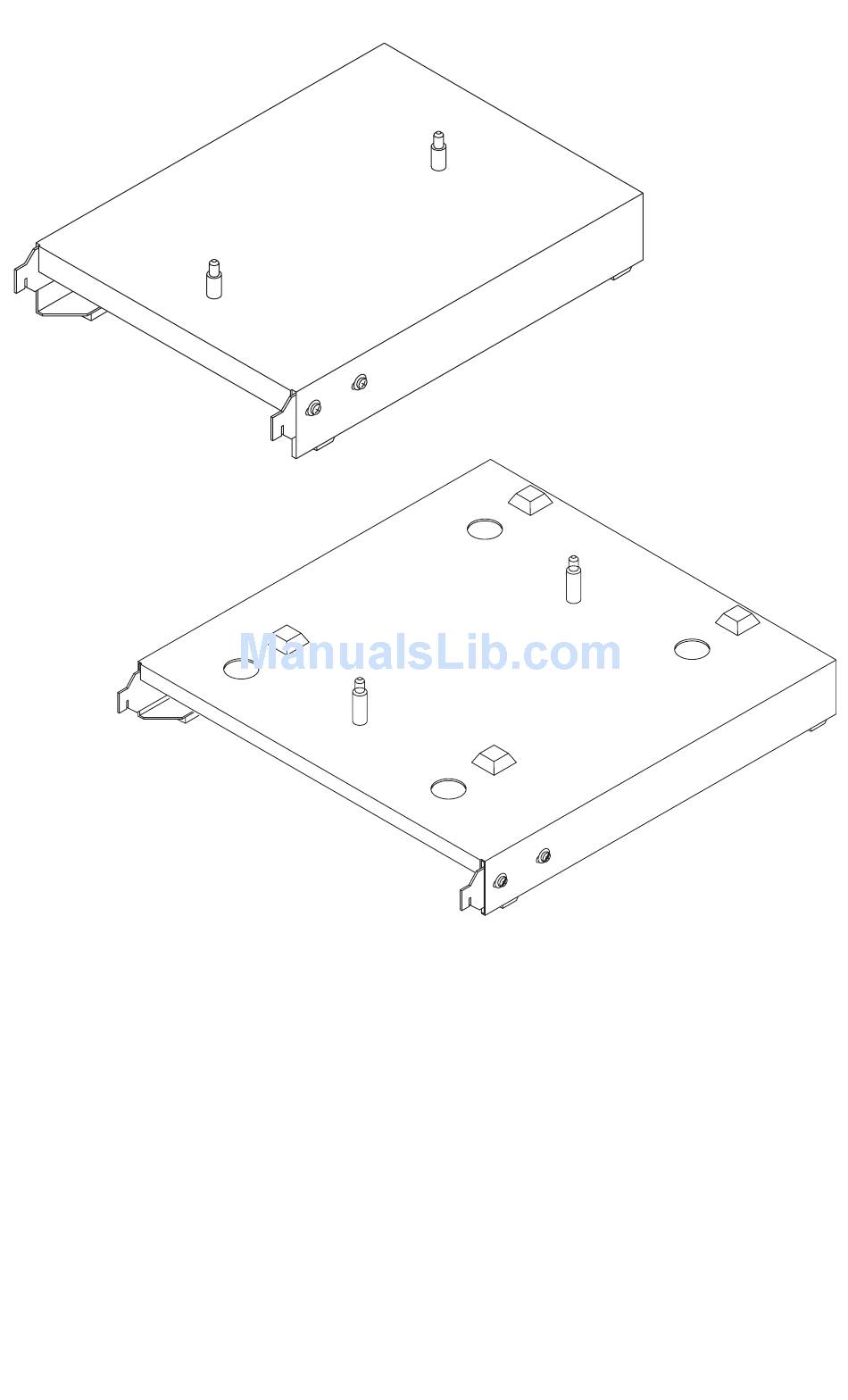

Laminator is configured to properly laminate your discs. 2. If present, remove the Printer Stand and Printer from the back of the Duplicator. 3. Make sure both the Power and Auxiliary Control Cable are connected to the Duplicator as shown: 8 Optical Disc Laminator Connectivity Guide... - Page 13 Laminator Stand. Make certain the Laminator's rubber feet are resting on the stand’s rubber pads and not in the four large holes in the stand. Optical Disc Laminator Connectivity Guide 9...
- Page 14 Duplicator. The disc will now be deposited into the Laminator's Disc Tray. Press the Pick button a few more times to pick and place discs into the laminator tray ensuring the alignment is accurate. 10 Optical Disc Laminator Connectivity Guide...
-
Page 15: Full Production Mode
Laminator User's Manual to ensure the Laminator is set up to properly laminate your discs. 3. Place the Laminator Stand in front and to the left of the Duplicator as shown: Optical Disc Laminator Connectivity Guide 11... - Page 16 This is done as follows: a. Make certain the Laminator has power and is turned on. b. Load a disc into the Input Bin. This is the Bin on the right side of the Duplicator. 12 Optical Disc Laminator Connectivity Guide...
- Page 17 From the Main Application Screen click Robotics then Options. Enable the Use Laminator checkbox if it is not already selected. g. Click the button labeled Move to Laminator (Calibrate). This will move the Picker Mechanism to the Laminator Tray position. Optical Disc Laminator Connectivity Guide 13...
- Page 18 Panel), you are ready to laminate discs. Load the input bin with discs. 8. Set up your print and record job as you normally would per the Duplicator XL/Pro User's Manual. 9. Click the red circle Record button to start your job! 14 Optical Disc Laminator Connectivity Guide...
-
Page 19: Troubleshooting
If the Overlaminate film has torn, it can be reattached to the supply roll. Once the jam has been cleared, close the cover and press the Laminate button; the job will continue. Optical Disc Laminator Connectivity Guide 15... - Page 20 Printed in the United States of America P/N 510887...
