PNI CA500LR Manual

Relay with remote control PNI CA500LR
Technical specifications:
• Sensitivity: -105 dBm
• Communication frequency with the remote control: 433 MHz
• Transmission power: 10 mW
• Power supply: 12V DC
• Channels: 2
• Output current: ≤10 mA
• Operating mode: with self-closing (non-energized relay COM-NO-NC)
• Operating temperature: -26°C ~ +60° C
• Compatible with remote controls with chipset PT2262, SC2260, EV1527
• Remote control power supply: 23A 12V alkaline battery (included)

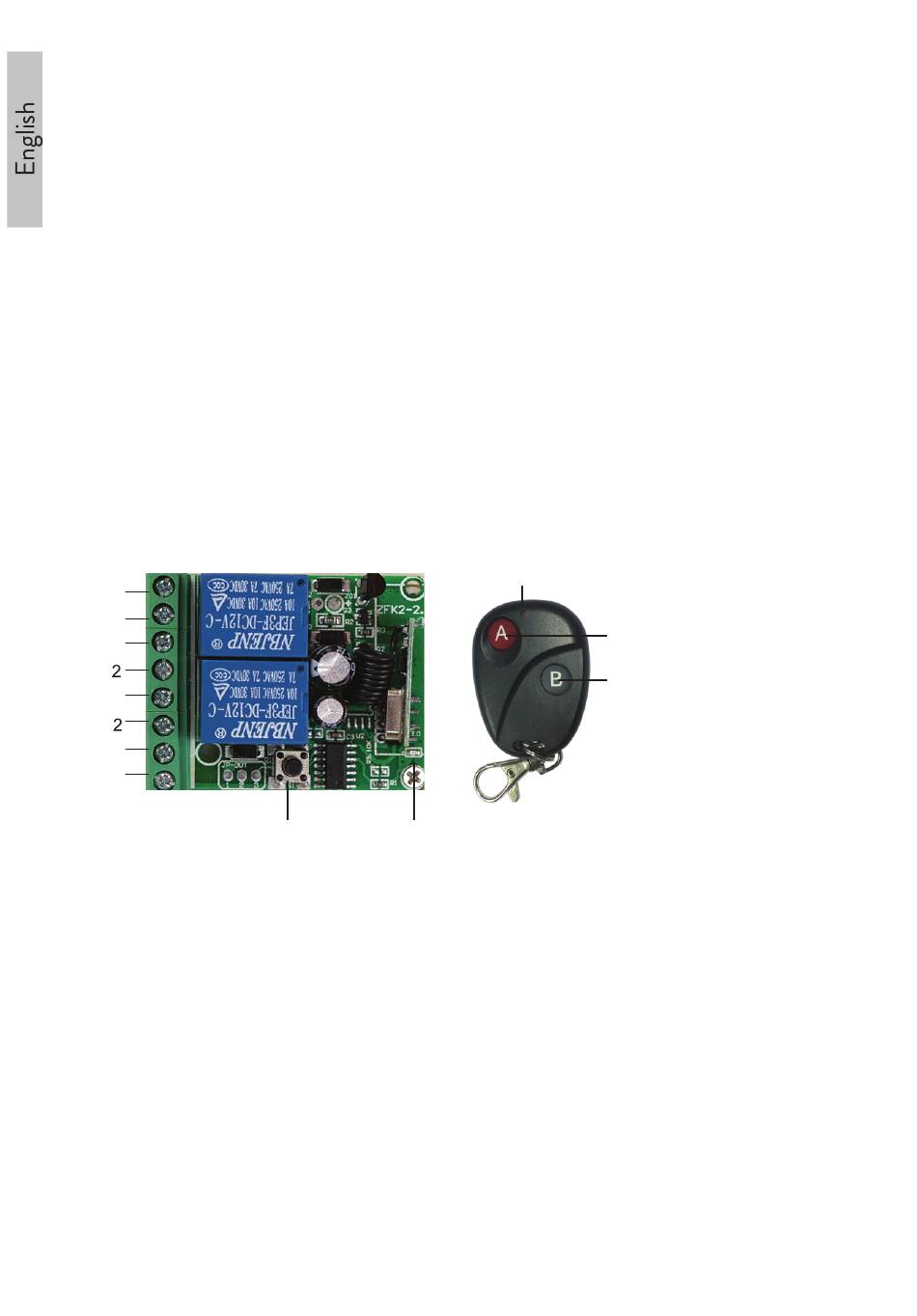

Relay description and operation mode
NO1
COM
NC1
NO
COM
NC
+12V
GND
Self-closing mode: briefly press the A/B button to open the door/lock/gate. When you
lift your finger off the button, the relay returns to its original state (the two doors operate
independently).
Learning a remote control: briefly press the learning button. The LED on the board lights up.
Press the A button on the remote control. The red LED on the board flashes 3 times to
confirm the learning of the A button that controls the first relay. The LED stays on.
Press the B button on the remote control. The red LED on the board flashes 3 times to
confirm the learning of the B button that controls the second relay.
Repeat the procedure to learn additional remotes (a maximum of 18 remotes).
Deleting the remote controls: hold down the learning button until the LED on the board goes
out. Release the button. The LED will flash 3 times to confirm the operation.
User manual
1 2
1
1.
3
2.
3. Indicator LED
4
4. Button A
5 5. Button B
Learning button
Status LED
