PNI CA500LR Manual

Remote Controlled Relay PNI CA500LR
for controlling 1 or 2 garage doors, gates, bariers
Sensitivity: -105dBm
z
Communication frequency: 433MHz
z
Transmission power; 0.1W
z
Power supply: DC 12V ≤10mA
z
Channels: 2
z
NO/NC (Normal Open/Normal Close) command no voltage, 10A max.
z
Working modes:relay NO/NC manual, self-closing, dual
z
Operating temperature: -26 ~ +60℃
z
Compatible with the remote controls: PT2262, SC2260, EV1527
z
:
NO1: GND VSS AC/N
COM1: +12V VDD/AC
NC1: GND ON/OFF
NO1: GND VSS AC/N
COM1: +12V VDD/AC
NC1 GND ON/OFF

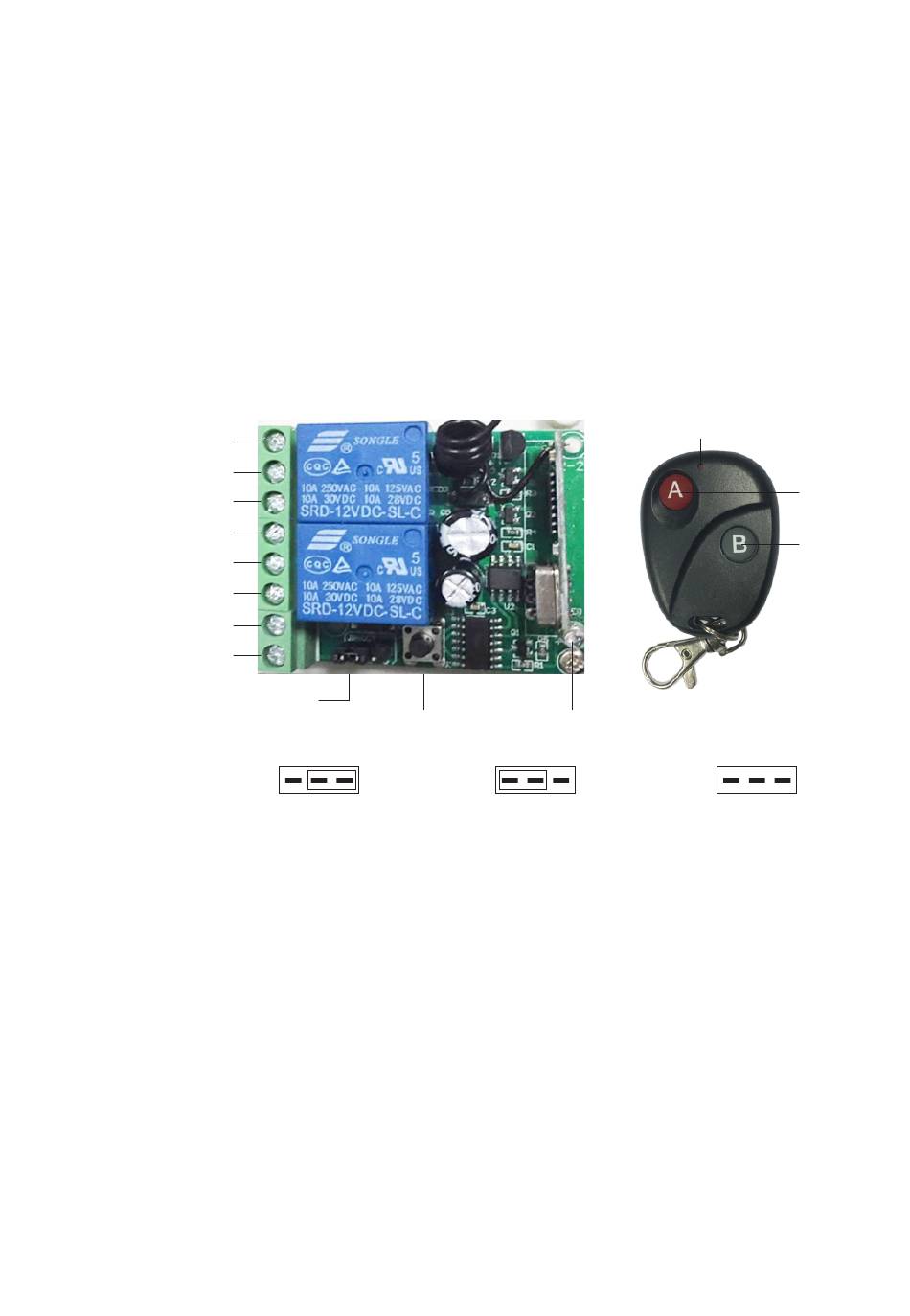

Selection jumper
working mode
:
- press A or B on the remote; the relay closes and remains closed untill you
1.
press the button again (doors work individually) Used to turn ON and OFF a lightbulb for example.
- press and hold A or B to open the door/lock/gate, when you release the button
2.
the relay returns to its initial state ( doors work individually). Used for magnetic locks, gates etc.
- this mode can be used only if you connected 2 different doors (A and B) to the
3.
relays: press button A to open door A, when you press button B door A will close and door B will
open and stay open untill you open door A or power is cut off.
In this mode the relays/doors are dependent on each other.
cut off the power to the relay;
Ÿ
place the jumper in corresponding position for the desired working mode;
Ÿ
connect back the power.
Ÿ
on the remote. The LED will blink red 3 times then stays lit to confirm learning of the button A for
commanding the first relay. LED stays lit. Press button B on the remote. The LED-ul will blink 3
times then it turns off to confirm learning.
Repeat procedure to learn secondary remotes.
Release the button. The LED will blink 3 times to confirm erasing.
:
+12V
GND
1
:
: short press learning button. The LED will lit. Press button A
: press and hold the learning button untill the LED turns off.
Learning button
2
manual mode
LED indicator
Status LED
self-closing
mode
Button A
relay 1
Button B
relay 2
3
dual mode
