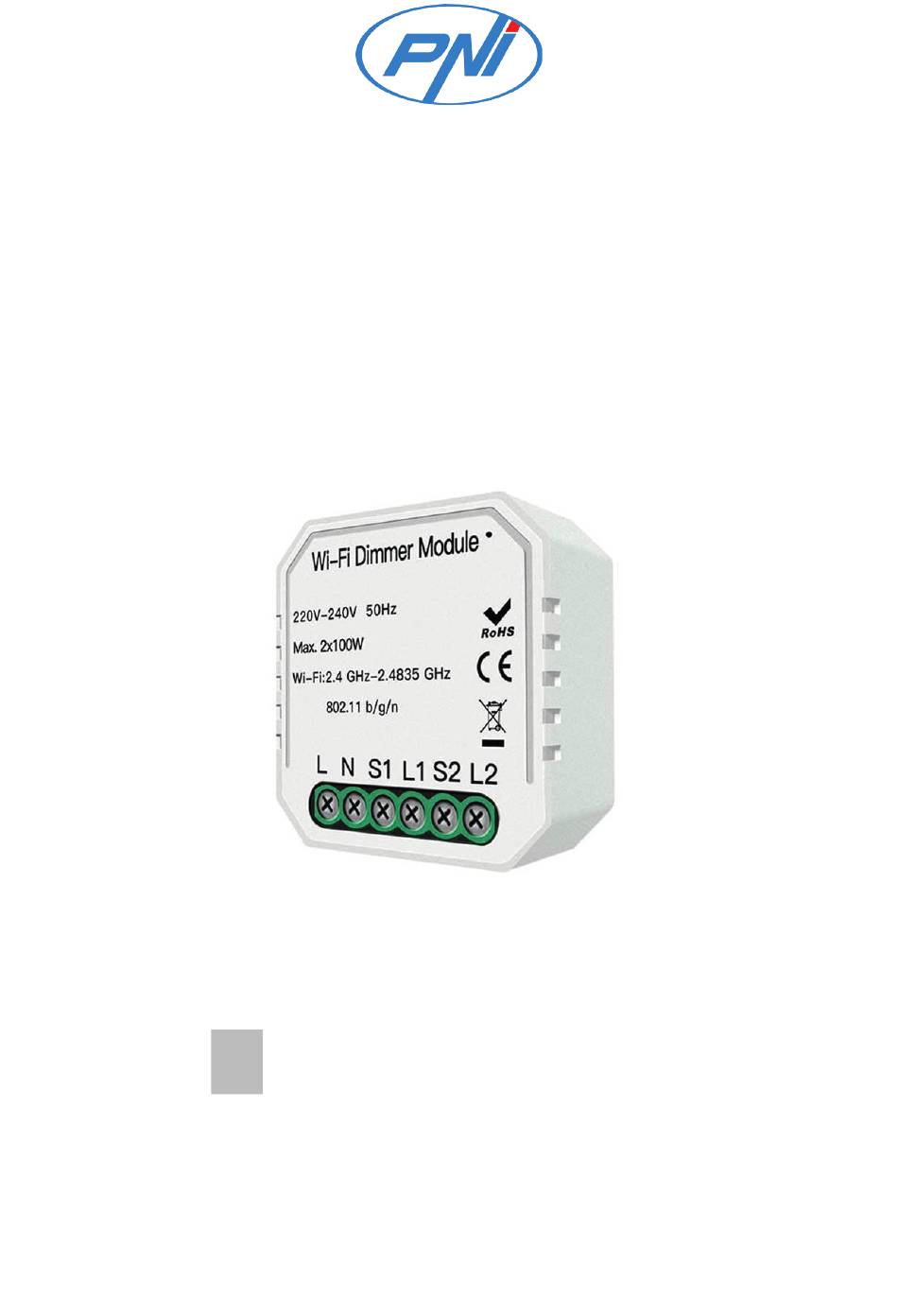

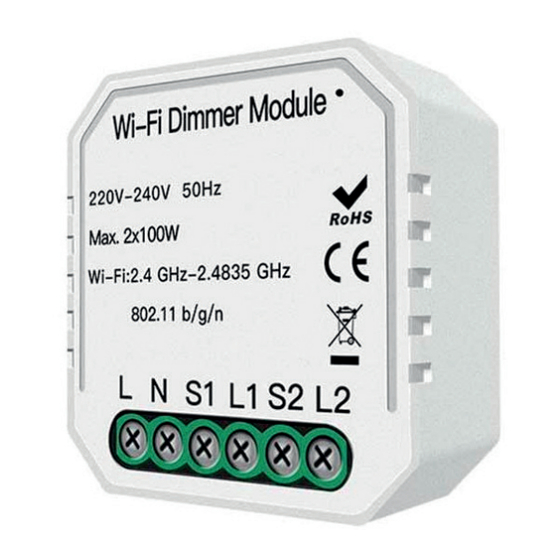

- Page 1 PNI SafeHome PT82C Smart relay / Releu inteligent User manual ..........Manual de utilizare ........
-
Page 2: Technical Specifications
Technical specifications • Rated voltage: 220-240V AC, 50-60Hz • Rated current: 2x5A • Maximum load: 2x1150W / 2x150W (for LED bulb) • WiFi frequency: 2.4GHz • Operating temperature: -10ºC ~ + 40ºC • Dimensions: 46x46x18mm Product description 46mm Buton Reset User manual... -
Page 3: Installation Instructions
Installation instructions 1. Before installing the relay, disconnect the general power supply. 2. Connect the wires according to the diagram above. 3. Restart the power. Tuya Smart APP Download the Tuya Smart app by accessing Google Play or the App Store or scan the QR codes below: Android Add device in Tuya Smart APP... - Page 4 10. Reset the relay by long pressing the pairing button. The device is now in pairing mode. 11. Check the Confirm indicator rapidly blinks option and click Next. 12. The application will scan nearby devices. After identifying your device, you will receive the Added successfully confirmation. 13.
- Page 5 Device control in the application The Tuya Smart application allows remote control of the relay. Options: • On/Off • Timer • Countdown Safety warnings • Make sure that the total power of the connected electrical devices does not exceed the maximum power supported by the relay (2200W for 230V).
-
Page 6: Specificatii Tehnice
Specificatii tehnice • Tensiune nominala: 220-240V AC, 50-60Hz • Curent nominal: 2x5A • Sarcina maxima: 2x1150W / 2x150W (pentru bec LED) • Frecventa WiFi: 2.4GHz • Temperatura de utilizare: -10ºC ~ +40ºC • Dimensiuni: 46x46x18mm Descriere produs 46mm Buton Reset Manual de utilizare... -
Page 7: Instructiuni De Instalare
Instructiuni de instalare 1. Inainte de a instala releul, intrerupeti alimentarea generala de curent. 2. Conectati firele conform schemei de mai sus. 3. Reporniti alimentarea. Aplicatia Tuya Smart Descarcati aplicatia Tuya Smart accesand Google Play sau App Store sau scanati codurile QR de mai jos: Android Adaugare dispozitiv in aplicatia Tuya Smart 1. - Page 8 6. In interfata urmatoare, din coltul dreapta sus, selectati optiunea EZ Mode. 7. Resetati releul apasand lung butonul on/off. Acum dispozitivul se afla in modul de imperechere. 8. Bifati optiunea Confirm indicator rapidly blinks si faceti click pe Next. 9. Aplicatia va scana dispozitivele din apropiere. Dupa ce va identifica dispozitivul dvs., veti primi confirmarea Added successfully.
- Page 9 Control dispozitiv din aplicatie Aplicatia Tuya Smart permite controlul de la distanta al releului. Optiuni: • Pornire/Oprire (On/Off) • Programare orara (Timer) • Cronometru (Countdown) Atentionari de siguranta • Asigurati-va ca puterea totala a dispozitivelor electrice conectate nu depaseste puterea maxima suportata de releu (1150W pe o iesire). •...
- Page 10 EU Simplified Declaration of Conformity SC ONLINESHOP SRL declares that Smart relay PNI SafeHome PT82C complies with the Directive EMC 2014/30/EU and RED 2014/53/UE. The full text of the EU declaration of conformity is available at the following Internet address: https://www.mypni.eu/products/7247/download/certifications...
