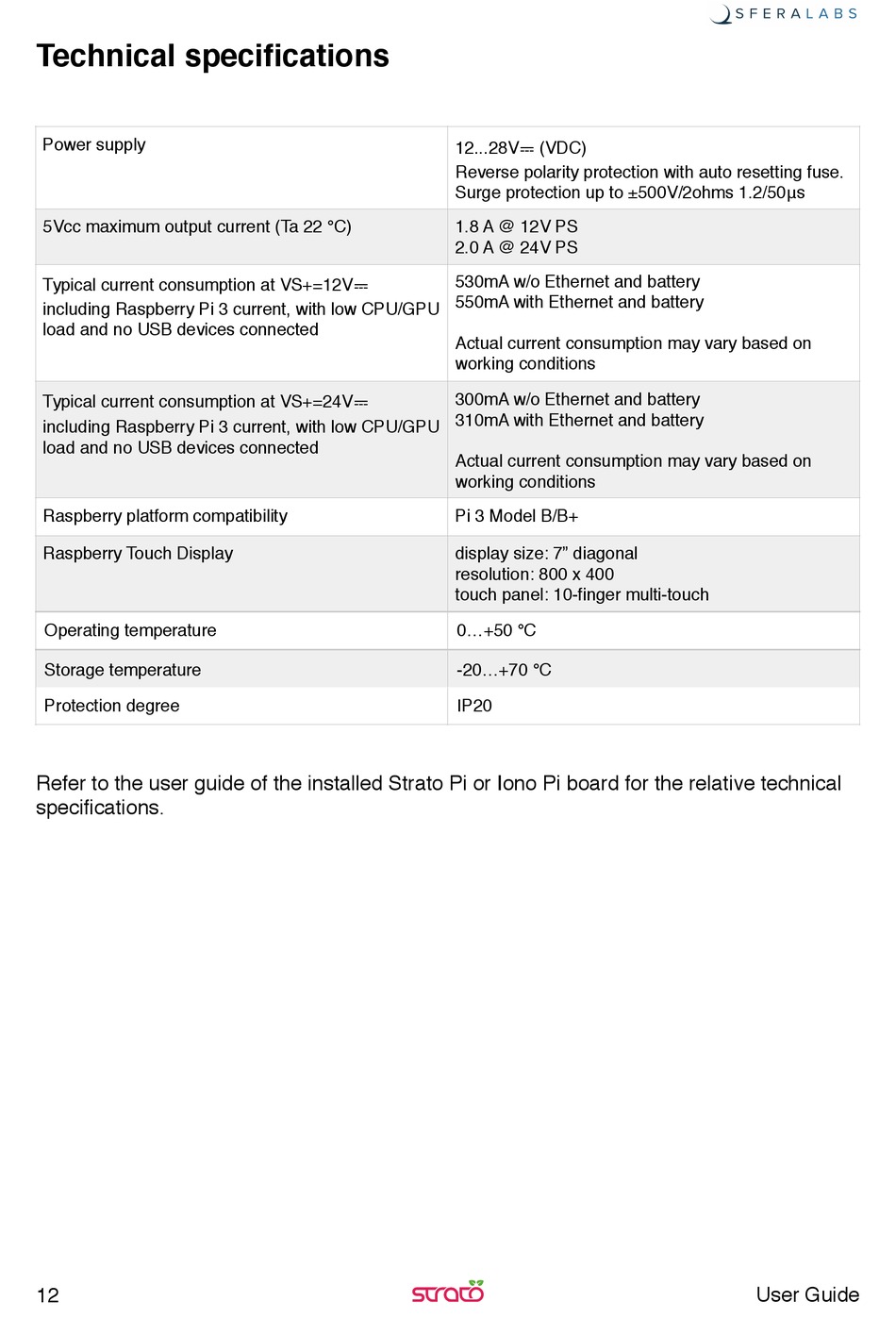

Technical specifications
Power supply
5Vcc maximum output current (Ta 22 °C)
Typical current consumption at VS+=12V⎓
including Raspberry Pi 3 current, with low CPU/GPU
load and no USB devices connected
Typical current consumption at VS+=24V⎓
including Raspberry Pi 3 current, with low CPU/GPU
load and no USB devices connected
Raspberry platform compatibility
Raspberry Touch Display
Operating temperature
Storage temperature
Protection degree
Refer to the user guide of the installed Strato Pi or Iono Pi board for the relative technical
specifications.
12
12...28V⎓ (VDC)
Reverse polarity protection with auto resetting fuse.
Surge protection up to ±500V/2ohms 1.2/50μs
1.8 A @ 12V PS
2.0 A @ 24V PS
530mA w/o Ethernet and battery
550mA with Ethernet and battery
Actual current consumption may vary based on
working conditions
300mA w/o Ethernet and battery
310mA with Ethernet and battery
Actual current consumption may vary based on
working conditions
Pi 3 Model B/B+
display size: 7" diagonal
resolution: 800 x 400
touch panel: 10-finger multi-touch
0...+50 °C
-20...+70 °C
IP20
User Guide
