Usage and connections
Hardware installation
The Pi Touch Display Kit is shipped fully assembled. You will only have to access the
Raspberry Pi board to install your microSD card, and connect the power and other optional
cables.
Two M4 threaded holes in the back of the display panel are available to screw the display
directly to a panel board. A optional back box is also available for in-wall installations.
NOTICE
Before opening the case, disconnect all power sources, any connection to external
devices, including USB cables, and disconnect the UPS external battery.

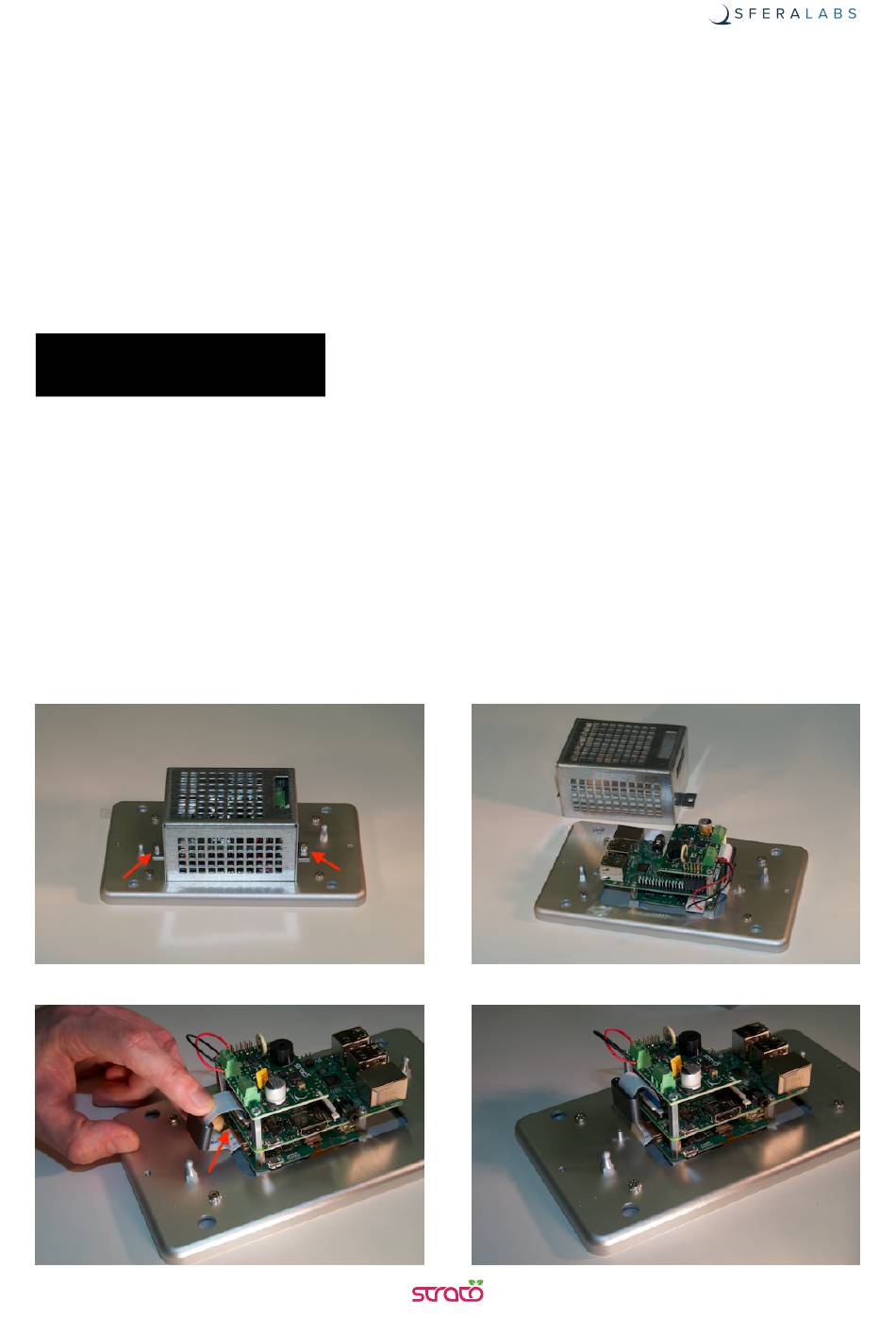

microSD installation
As the microSD socket is behind the flat cable that connects the Pi board with the display
control board, there is no direct access to the microSD socket when the kit is assembled.
You will need to remove the back steel cradle to expose the electronic boards to insert and
extract the microSD card.
User Guide
9
