Fractal FD-C-MES2A-06 User Manual page 8

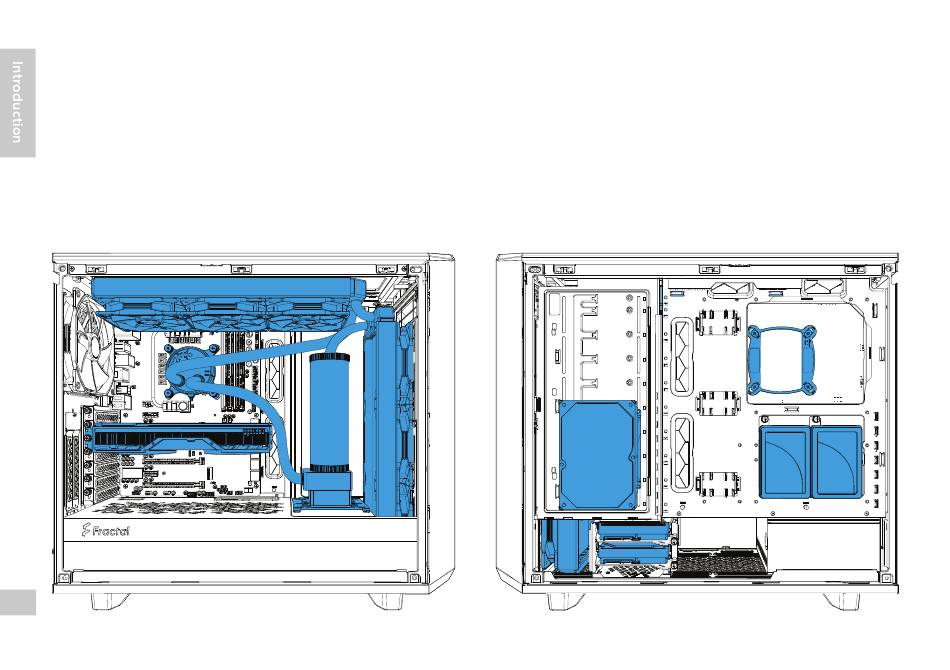

Water Reservoir Build Example
Wasserkühlung Build / Montage pour réservoir d'eau / Estructura de depósito de agua / Konfigurering med vattenreservoar / Пример конфигурации с баком водяного охлаждения / 水冷タンク
構成 / 蓄水池架构 / 水箱式配置
2.5" Drives:
3.5" Drives:
GPU Length:
Top Radiator:
Front Radiator:
Water Reservoir height:
7
2
3 (1 mounted on Multibracket)
280 mm (up to 330mm possible)
360 x 120 mm
360 x 120 mm
230 mm (mounted on Multibracket and shroud inlay)
