Models: Dfx 3.1, Dfx 4.1 - SPX FLOW Deltech FLEX Series Instruction Manual

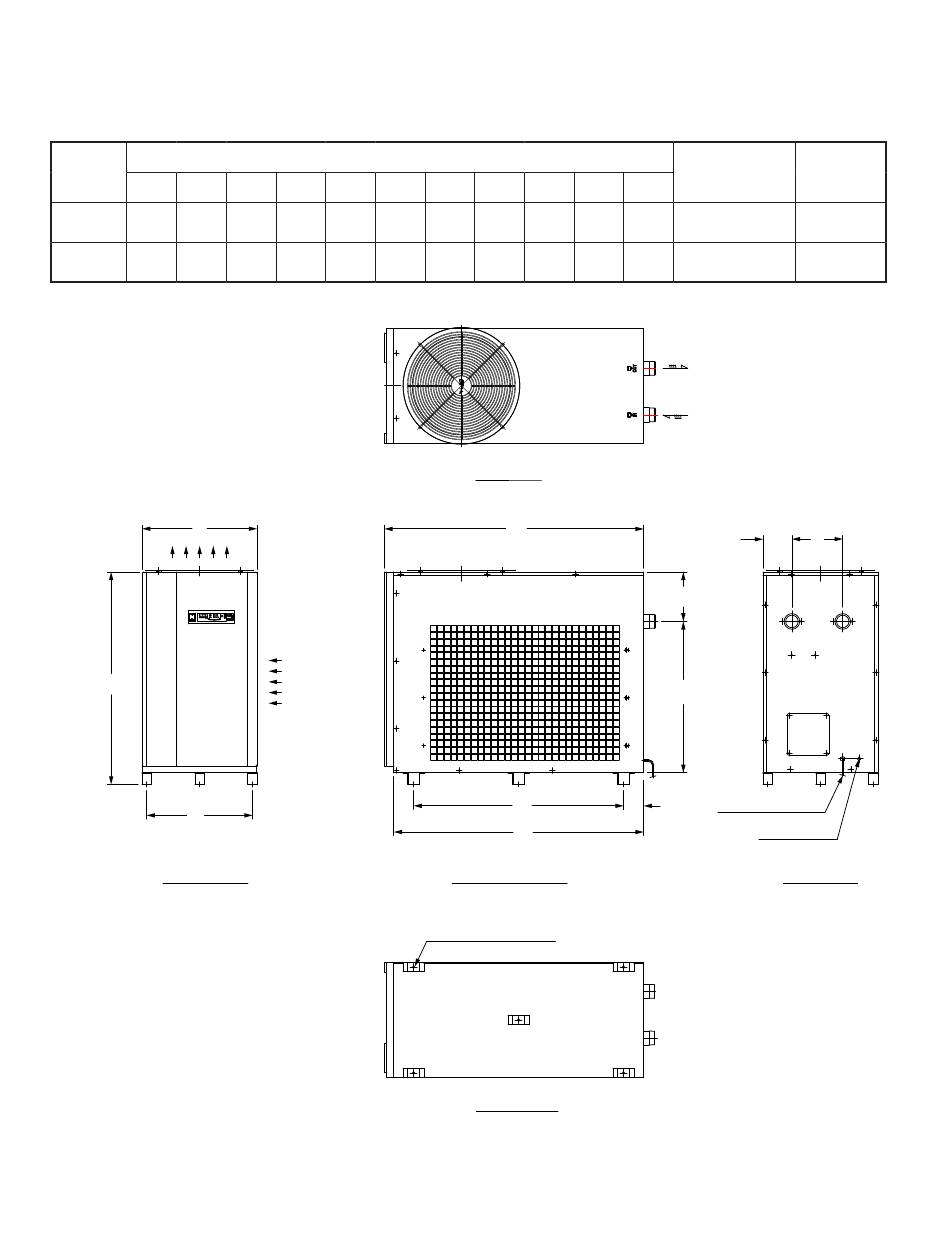

DRAWINGS: GENERAL ARRANGEMENT
Figure 5D

Models: DFX 3.1, DFX 4.1

MODEL
A B
4.86 7.86
DFX 3.1
(123.5) (199.6)
4.86 8.58
DFX 4.1
(123.5) (218)
E
F
G
FRONT VIEW
DIMENSIONS, INCHES (MM)
C D E F
8.31 25.59 19.41 35.88
(211.2) (650) (493) (911.2)
8.35 25.56 19.41 35.88
(212) (649.2) (493) (911.2)
COOLING
AIR FLOW
G H I J
17.88 43.75 3.39 35.43
(454) (1111.3) (86.2) (900)
17.88 43.75 3.39 35.43
(454) (1111.3) (86.2) (900)
TOP VIEW
H
J
K
RIGHT SIDE VIEW
5-Ø10 MOUNTING HOLES
FOOT PRINT
INLET/OUTLET
CONNECTIONS
K
42.17
2" NPT
(1071.2)
42.17
2" NPT
(1071.2)
DRIED AIR OUTLET
WETTED AIR INLET
A
C
D
I
MAIN POWER CABLE
DRAIN OUTLET
REAR VIEW
WEIGHT
Lb. (kg)
324
(147)
335
(152)
B
