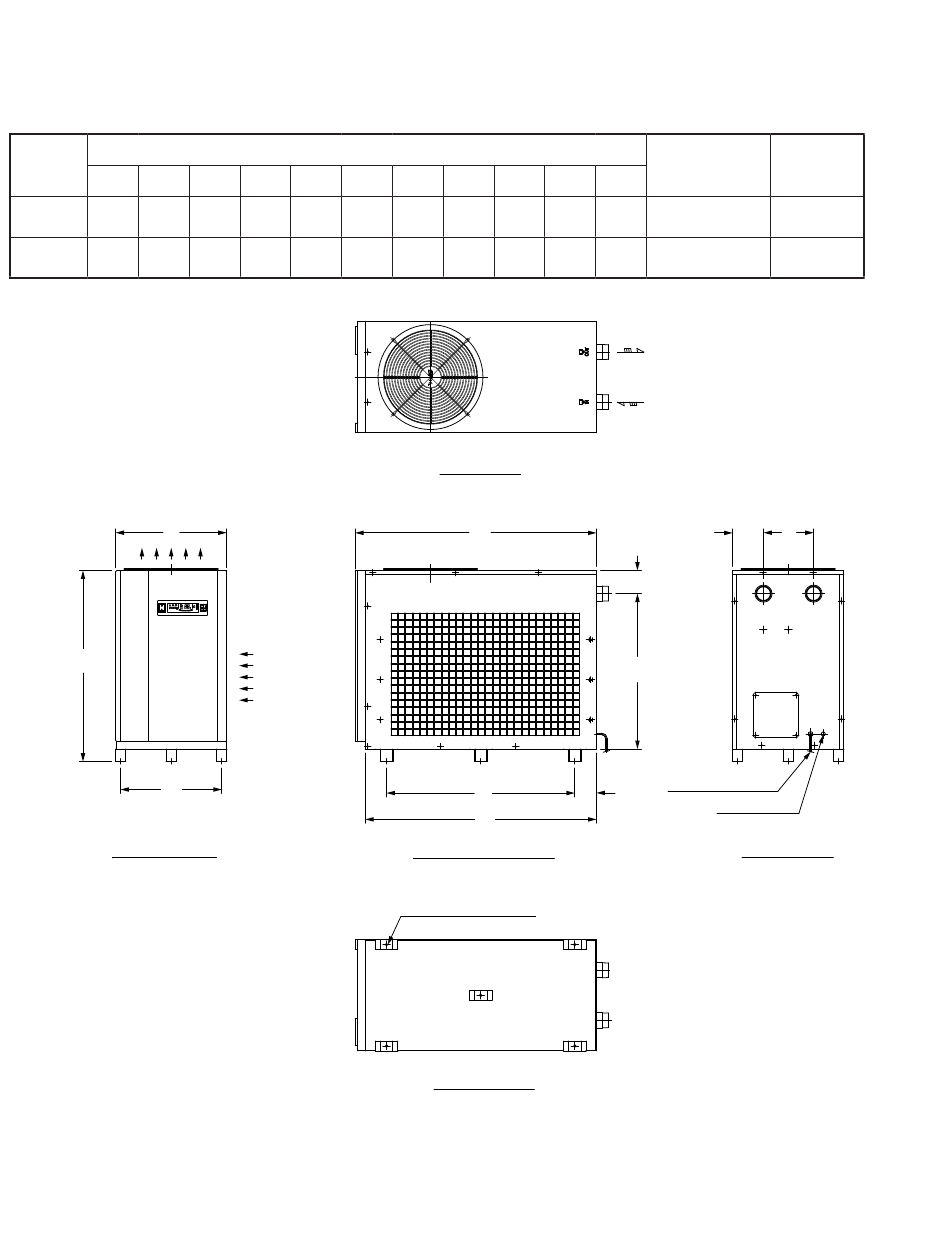

DRAWINGS: GENERAL ARRANGEMENT
Figure 5C

Models: DFX 1.5, DFX 2.1

MODEL
A B
4.86 7.86
DFX 1.5
(123.5) (199.6)
4.86 7.86
DFX 2.1
(123.5) (199.6)
E
F
G
FRONT VIEW
12
DIMENSIONS, INCHES (MM)
C D E F
3.63 24.38 17.44 29.97
(92) (619.2) (443) (761.2)
3.63 24.38 17.44 29.97
(92) (619.2) (443) (761.2)
COOLING
AIR FLOW
G H I J
15.91 35.50 3.39 27.16
(404) (901.3) (86.2) (690)
15.91 37.85 3.39 29.53
(404) (961.3) (86.2) (750)
TOP VIEW
H
J
K
RIGHT SIDE VIEW
5-Ø10 MOUNTING HOLES
FOOT PRINT
INLET/OUTLET
CONNECTIONS
K
33.91
2" NPT
(861.2)
36.27
2" NPT
(921.2)
DRIED AIR OUTLET
WETTED AIR INLET
A
C
D
MAIN POWER CABLE
I
DRAIN OUTLET
REAR VIEW
WEIGHT
Lb. (kg)
188.5
(85.5)
217
(98.5)
B
