Summary of Contents for Power Acoustik Plasma 1

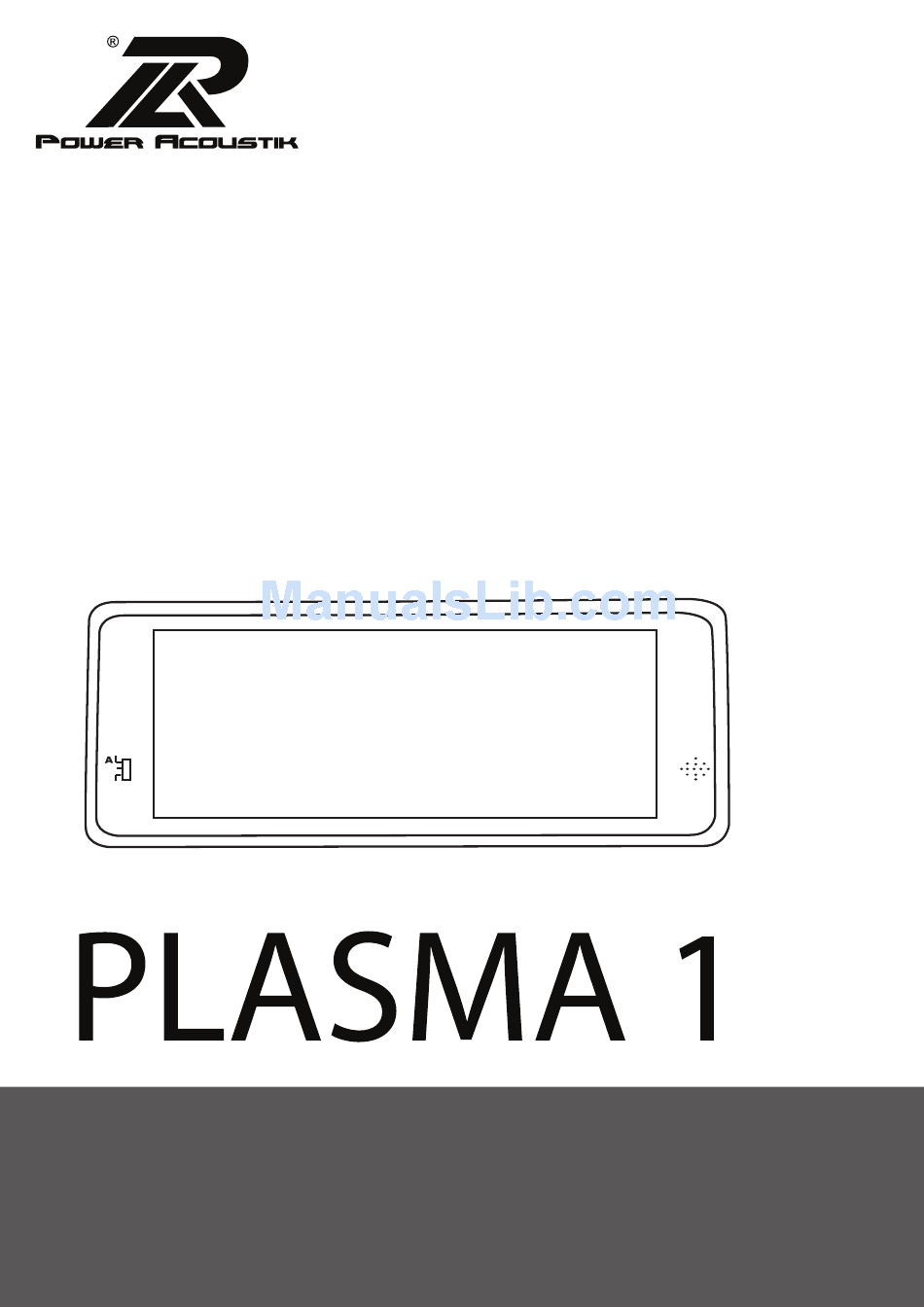

- Page 1 INSTALLATION & CONNECTIONS...
- Page 2 PLASMA 1 INSTALLATION & CONNECTIONS: The PL-1 is designed to provide you with many years of continuous use without failure. The display area consists of a complex matrix of coloured light particles, revealing three (3) separate colours when su ciently excited; RED, WHITE & BLUE… colours we can all relate to! Before you begin, please take the time to read and understand all you need to in order to get the best performance out of your equipment.
- Page 3 If you prefer to use the display in locations other than your vehicle, simply purchase and AC adapter which provides a regulated 12 volt output @ 500 milliamps and follow the same steps as above. ELECTRICAL CONNECTIONS & Speci cations: •...
- Page 4 Use & function: The three (3) position switch at the front left portion of the display, provides you with 3 selections: (C) an “o ” function (B) a standard input, via signal input terminal and (A) microphone input. The microphone is located at the front right side. Please do not block the microphone if you are using it as the source of input to drive the display.
