Summary of Contents for Power Acoustik RAZOR RZ4-1200D

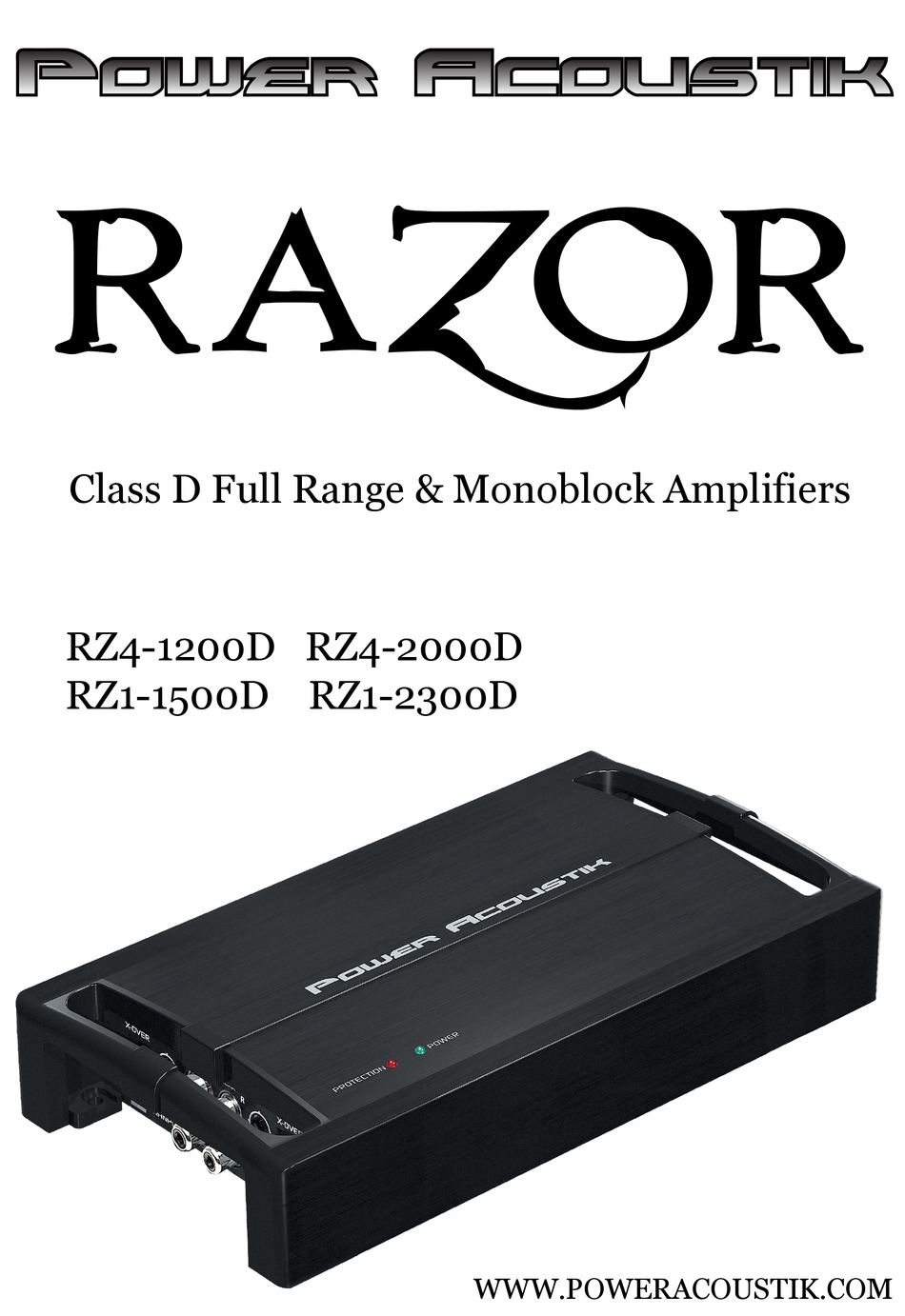

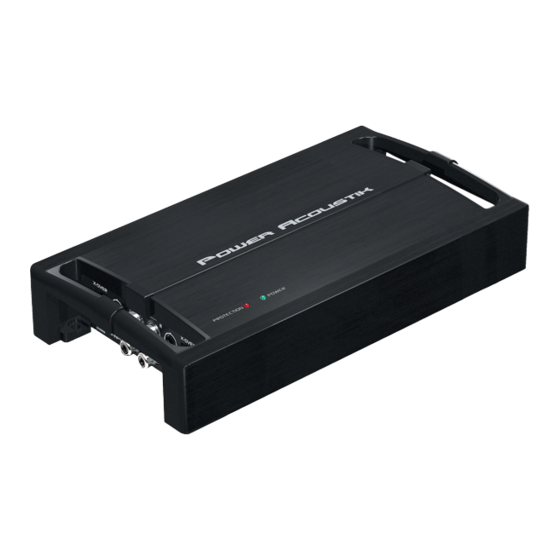

Page 1 RAZOR Class D Full Range & Monoblock Amplifiers RZ4-1200D RZ4-2000D RZ1-1500D RZ1-2300D WWW.POWERACOUSTIK.COM...
Page 2: Power Ratings
4 Channel RZ4-1200D & RZ4-2000D Monoblock RZ1-1500D & RZ1-2300D • Full MOSFET PWM Power Supply • Full MOSFET PWM Power Supply • SMD Technology on Double Sided PCB • SMD Technology on Double Sided PCB • 8ga Power Terminals & 12ga Speaker Outputs •...
Page 3 Warning Power Acoustik highly recommends that an in-line fuse or circuit breaker be installed within 18” of the battery. Although your Razor amplifier has adequate internal protection, it is possible a damaged wire between the component and the battery may result in a fire. The in-line fuse or circuit breaker should be installed in a...
Page 4 High Level input connections The high level inputs are for use with speaker level wiring. Most factory source units do not have RCA outputs. Use this connection if your source unit does not have RCA outputs. CAUTION: Never use the high and low level inputs at the same time! RZ4-1200D &...
Page 5 Razor Pre-Amp Features 1. Remote Level Control Connection 5. Level Sensitivity Connect the remote level control to this Adjust the amplifers pre-amp sensitivity terminal. The remote level control allows level. The minimum sensitivity level is adjustment of the subwoofer level from a 250mv, while the maximum level is 6V.
Page 6 Setting the gains: It is a fact that very few people, including professional installers, know how to set gains correctly. Failure to do so yields higher distortion, a higher noise floor which decreases dynamic headroom, less than optimum operating conditions for electronic equipment, and higher failure rate for both the electronic equipment and transducers alike.
Page 7 Investigate the layout of your vehicle before drilling or cutting any holes. Take care when you are working near the gas tank, brake lines, hydrau- lic lines, and electrical wiring. Do not use the amplifier without securly mounting it, as the amp or vehicle may be damaged in the event of an accident.
Page 8 LIMITED 90-DAY CONSUMER WARRANTY LIMITED ONE-YEAR CONSUMER WARRANTY WITH PURCHASE AND INSTALLATION BY A POWER ACOUSTIK AUTHORIZED DEALER Power Acoustik Electronics, (The Company) warrants to the original retail purchaser of its products that should this product under normal use and conditions, be proven defective in material or workmanship within 1 Year from the original date of purchase and professional installation or 90 Days if self installed.

This manual is also suitable for:

Razor rz4-2000d Razor rz1-1500d Razor rz1-2300d
