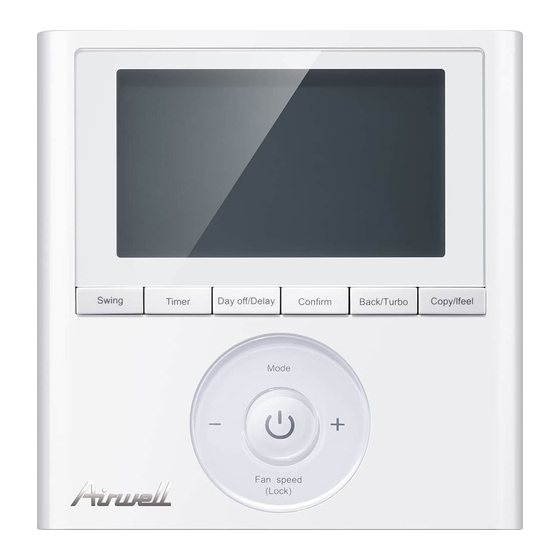

Wired remote controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

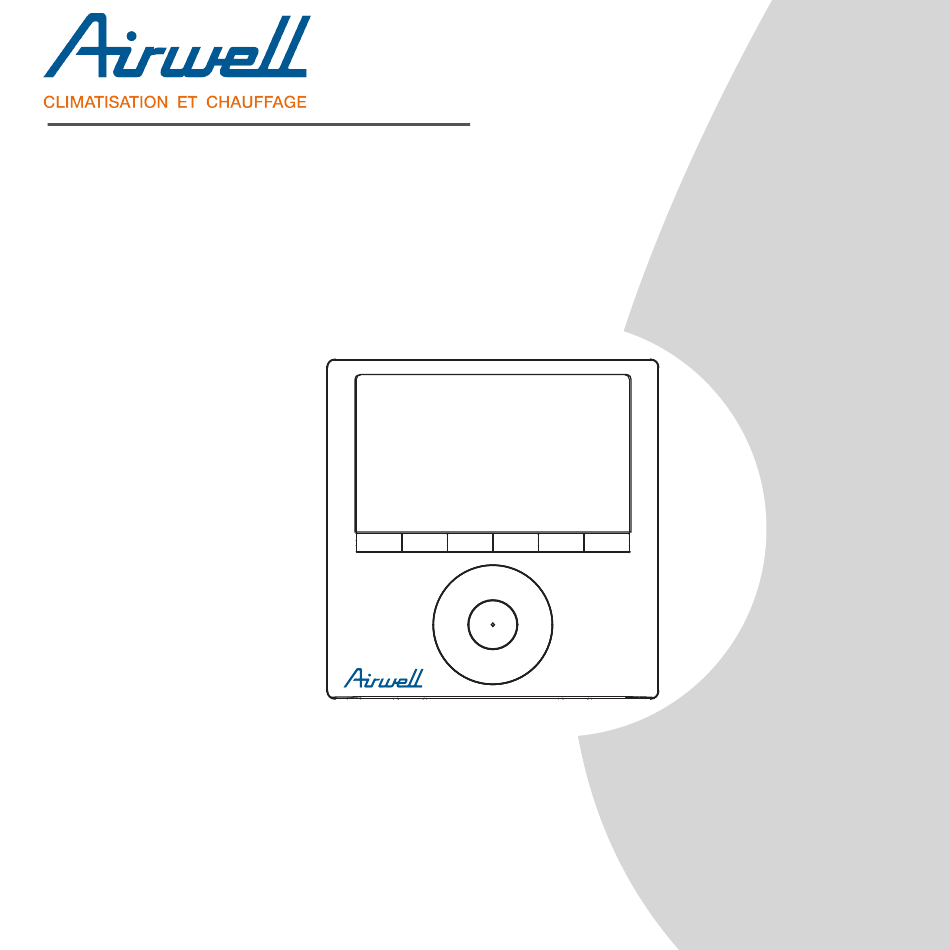

RCW11 - WIRED REMOTE CONTROLLER
Installation and Owner's Manual
COMPATIBLE FOR DDM, CDM, FDM
IMPORTANT NOTE:
Read this manual carefully before
installing or operating your wired
remote controller. Make sure to save
RCW11-20190318-Rev1.1
this manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCW11 and is the answer not in the manual?

Questions and answers

Related Manuals for Airwell RCW11

Summary of Contents for Airwell RCW11

  • Page 1 RCW11 - WIRED REMOTE CONTROLLER Installation and Owner’s Manual COMPATIBLE FOR DDM, CDM, FDM IMPORTANT NOTE: Read this manual carefully before installing or operating your wired remote controller. Make sure to save RCW11-20190318-Rev1.1 this manual for future reference.
  • Page 2 ● This manual gives detailed description of the precautions that should be brought to your attention during operation. ● To ensure the correct service of the wired controller, read this manual carefully before using the unit. ● Keep this manual after reading for future reference.

  • Page 3: Table Of Contents

    CONTENTS 1. SAFETY PRECAUTION....................1 2. INSTALLATION ACCESSORY..................2 3. INSTALLATION METHOD....................4 5. SPECIFICATION......................16 6. WIRED CONTROLLER FEATURES AND FUNCTIONS...........17 7. WIRED CONTROLLER DISPLAY..................18 8. WIRED CONTROLLER BUTTONS................19 9. PREPARATORY OPERATION..................20 10. OPERATION........................21 11. TIMER FUNCTIONS.....................27 12. WEEKLY TIMER......................30 13. SET EXTERNAL STATIC PRESSURE ..............

  • Page 4: Safety Precaution

    1. SAFETY PRECAUTION Read the safety precautions carefully before installing the unit.  Stated below are important safety issues that must be obeyed.  Means improper handling may lead to personal death or severe injury. WARNING Means improper handling may lead to personal injury or property loss. CAUTION WARNING Please entrust the distributor or professionals to install the unit.

  • Page 5: Installation Accessory

    2. INSTALLATION ACCESSORY Select the installation location Don’t install at the place where cover with heavy oil, vapor or sulfureted gas, otherwise, this product would be deformed that would lead to system malfunction. Preparation before installation 1. Please confirm that all the following parts you have been supply. Name Qty.
  • Page 6 2. INSTALLATION ACCESSORY WIRED CONTROLLER INSTALLATION PRECAUTION 1. This manual provides the wired controller installation method. Refer to the wiring diagram in this installation manual to wire the wired controller with the indoor unit. 2. The wired controller works in a low voltage loop circuit. Do not connect directly to 208/230V and 460V.

  • Page 7: Installation Method

    3. INSTALLATION METHOD 1.Wired Remote Controller Dimensions 120mm 18.5mm 46mm (4.7”) (0.7”) (1.8”) 83.5mm 123mm (3.3”) (4.8”) 62mm (2.4”) Fig 3-1 2.Wiring Connection Diagram Insert of the mainboard CN40 ----------------------------------- black black ----------------------------------- yellow yellow ----------------------------------- brown brown ----------------------------------- 4-Core Shield Cable, the length Wire controller Indoor unit mainboard is decided by installation...
  • Page 8 3. INSTALLATION METHOD 3.Wiring figure Mainboard 4-core shielding wire The connection cable CN40 Fig 3-3 Connect the female joint of the wires group from the mainboard with the male joint of the connective wires group. (See Fig.3-3) Connect the other side of the connective wires group with the male joint of the wires group leads from the wire controller.(See Fig.3-3) Install the Adapter Board and the Display Board on the High Wall (See the Appendix for instructions).
  • Page 9 3. INSTALLATION METHOD 4.Wire controller upper part Remove Insert a flat screwdriver into the slots in the lower part of the wire controller (2 places). Remove the upper part of the wire controller (Fig.3-4) Slots NOTE: The PCB is mounted in the upper part of the wired controller.
  • Page 10 3. INSTALLATION METHOD For switch box mounting, fasten the back plate on the switch box with 2 screws (M4x25) and fasten it on the wall with 1 screw (M4x20). (Fig.3-6) Back plate Switch box Screw (M4×20) Screws (M4×25) Fig 3-6 NOTE: Place on a flat surface.
  • Page 11 3. INSTALLATION METHOD 7. Wire the indoor unit There are three methods: 1 from the rear; 2 from the bottom; 3 from the top; 4. Notch the part for the wiring to pass through with a nipper tool.
  • Page 12 3. INSTALLATION METHOD NOTE: DO NOT allow water to enter the remote control. Use the trap and putty to seal the wires. Putty Trap Putty Putty Trap Trap Fig 3-8 8. Reattach the wire controller’s upper part While adjusting and mounting the upper case, avoid clamping the wiring during installation.

  • Page 13: Specification

    5. SPECIFICATION DC 12V Input voltage Ambient temperature 23~110℉(-5~43℃) RH40%~RH90% Ambient humidity Wiring specifications Total length Wiring type Size <66 ft (20m) 0.029 in-0.74mm Shielded vinyl cord or cable (0.75-1.25mm ) <164 ft (50m)
  • Page 14 6. FEATURE AND FUNCTION OF THE WIRED CONTROLLER Feature: LCD display. Malfunction code display: displays the error code (helpful for servicing) 4-way wire layout design. Room temperature display. Copy/ Swing Timer Day off/Del Confirm Back/Turbo Follow me ℉ ℃ Weekly Timer Mode Fan speed (Lock)

  • Page 15: Wired Controller Display

    7. WIRED CONTROLLER DISPLAY 1. Operation mode indicator 8. Turbo/Auxiliary Heat function indicator 2. Fan speed indicator 9. °C / °F indicator 3. Left-right swing indicator 10. Temperature display 4. Up-down swing indicator 11. Lock indicator 5. Panel function indicator 12.

  • Page 16: Wired Controller Buttons

    8. WIRED CONTROLLER BUTTONS Copy/ Swing Timer Day off/Del Confirm Back/Turbo Follow me Mode Fan speed (Lock) 1. Mode 6. Timer 2. Power 7. Day Off/Del 3. Adjust 8. Copy/Follow me 4. Fan Speed 9. Back/Turbo 5. Swing 10. Confirm...

  • Page 17: Preparatory Operation

    9. PREPARATORY OPERATION Set the current day and time Press TIMER for 3s or more. The timer displays flashes. Timer Press + or − to set the date. The selected date flashes. Date setting is complete and the time setting is ready after Timer pressing TIMER or if nothing is pressed in 10 seconds.
  • Page 18 10. OPERATION To start/stop operation Press the Power button. To set the operation mode Operation mode setting Press MODE to set the operation mode. Mode (Heat function is invalid for cool only type unit) Room temperature setting Press + or − to set the room temperature. Indoor Setting Temperature Range: 62~86℉(17~30℃)/62~88℉(17~31℃(depending on models)).
  • Page 19 10. OPERATION Fan speed setting Press FAN SPEED to set the fan speed NOTE: This function is unavailable in the AUTO or DRY modes. Fan speed (Lock) Room temperature sensor selection Press FOLLOW ME to select whether the room temperature is detected at the indoor unit or at the wired controller.
  • Page 20 10. OPERATION Child lock function Press LOCK for 3 seconds to activate the CHILD LOCK feature and lock all buttons on the wired controller. Press again for 3 seconds Fan speed to deactivate. (Lock) NOTE: When the child lock function is activated, lock image appears.

  • Page 21: Operation

    10. OPERATION Turbo/Auxiliary Heat function (on some models) • Press TURBO to activate/deactivate the Turbo/Auxiliary Back/Turbo Heat function. The turbo function sets the unit to reach the user’s present temperature in the shortest amount of time possible. • When the user presses TURBO in the COOL mode, the unit sets to the highest fan speed setting to jump−start the cooling process.
  • Page 22 10. OPERATION Swing function (For the unit with left & right auto swing function only) 1 Up-Down swing Swing Press the Swing button to start up-down swing function. Press it again to stop. When the Up-Down swing function is activated,the mark appears.
  • Page 23 10. OPERATION Swing function (For the unit without left & right auto swing function models) Up-Down airflow direction and swing Swing Use SWING to adjust the up and down airflow direction. 1.Every time the user presses SWING, the louver swings six degrees. 2.Press and hold SWING for 2 seconds, it changes to the UP−DOWN SWING mode.

  • Page 24: Timer Functions

    11. TIMER FUNCTIONS WEEKLY timer Use to set the operating times for each day of the week. On timer Use to start the air conditioner operation. The timer operates and the air conditioner operation starts after the time has passed. Off timer Use to stop the air conditioner operation.
  • Page 25 11. TIMER FUNCTIONS To set the On or Off TIMER Press Timer to select the Timer No display Press Confirm and the Clock display flashes Confirm ex.Off timer set at PM 6:00 Press + or − to set the time. After the time is set, the timer starts or stops automatically.
  • Page 26 11. TIMER FUNCTIONS To set the On and Off TIMER Press Timer to select the Timer Confirm Press Confirm and the Clock display flashes. Confirm Press the button + or - to set the On timer and then press Confirm. Press + or - to set the Off timer.

  • Page 27: Weekly Timer

    12. WEEKLY TIMER Weekly timer setting Press Timer to select the and press Confirm. Confirm Timer Day of the week setting Press + or − to select the day of the week Confirm and then press CONFIRM. ON timer setting of timer setting 1 Press + and −...
  • Page 28 12. WEEKLY TIMER IMPORTANT: Up to 8 scheduled events can be set on one day. Various events can be scheduled in either MODE, TEMPERATURE and FAN speeds. ex.Tuesday time scale 1 Time setting Press + and − to set the time then press Confirm CONFIRM.
  • Page 29 12. WEEKLY TIMER Fan speed setting Press + and − to set the fan speed then press Confirm CONFIRM. NOTE: This setting is unavailable in the AUTO, DRY or OFF modes. Different scheduled events can be set by repeating steps 3 through 7. Additional days, in a one week period, can be set by repeating steps 3 through 8.
  • Page 30 12. WEEKLY TIMER WEEKLY timer operation To start Press Timer to select the , and then the timer Timer starts automatically. To cancel Press Power to cancel the timer mode. The timer mode can also be canceled by changing the Timer timer mode using Timer.
  • Page 31 12. WEEKLY TIMER Press DAY OFF to create an off day. Day off/Del mark is hidden ex.The DAY OFF is set for Wednesday Set the DAY OFF for other days by repeating the steps 2 and 3. Back/Turbo Press BACK to revert to the weekly timer. ●...
  • Page 32 12. WEEKLY TIMER Copy/ Press COPY, the letters CY appear on the LCD. Follow me Press + or − to select the day to copy to. Press COPY to confirm. Copy/ Follow me mark flashes quickly ex. Copy the setting of Monday to Wednesday Other days can be copied by repeating steps 4 and 5.
  • Page 33 12. WEEKLY TIMER Delete the time scale in one day. During the weekly timer setting, Confirm press CONFIRM. Press + and − to select the day of the week Confirm and then press CONFIRM. Day off/Del Press + and − to select the setting time want to delete. The setting time, mode, temperature and fan speed appear on the LCD.

  • Page 34: Set External Static Pressure

    13. SET EXTERNAL STATIC PRESSURE Using the wire controller to set external static pressure (some air conditioners) . • You can use the unit’s automatic airflow adjustment function to set external static pressure. • Automatic airflow adjustment is the volume of blow-off air that has been automatically adjusted to the quantity rated.

  • Page 35: Fault Alarm Handing

    14. FAULT ALARM HANDING If the system does not properly operate except in the aforementioned cases or the aforementioned malfunctions are evident, investigate the system according to the following procedures. DISPLAY MALFUNCTION AND PROTECTION DEFINITION DIGITAL TUBE Communication error between wired controller and indoor unit The auto-lifing panel is abnormal Please check the indoor unit’s error display and review the owner’s...
  • Page 36 ATTENTION : Le design et les données techniques sont donnés à titre indicatif et peuvent être modifiés sans préavis. AIRWELL RESIDENTIAL SAS 3 Avenue du Centre - Les Quadrants - Bâtiment A 78280 Guyancourt - France www.airwell-pro.com RCW11-20190318-Rev1.1...
