Summary of Contents for Airwell RC5

  • Page 1: Remote Control

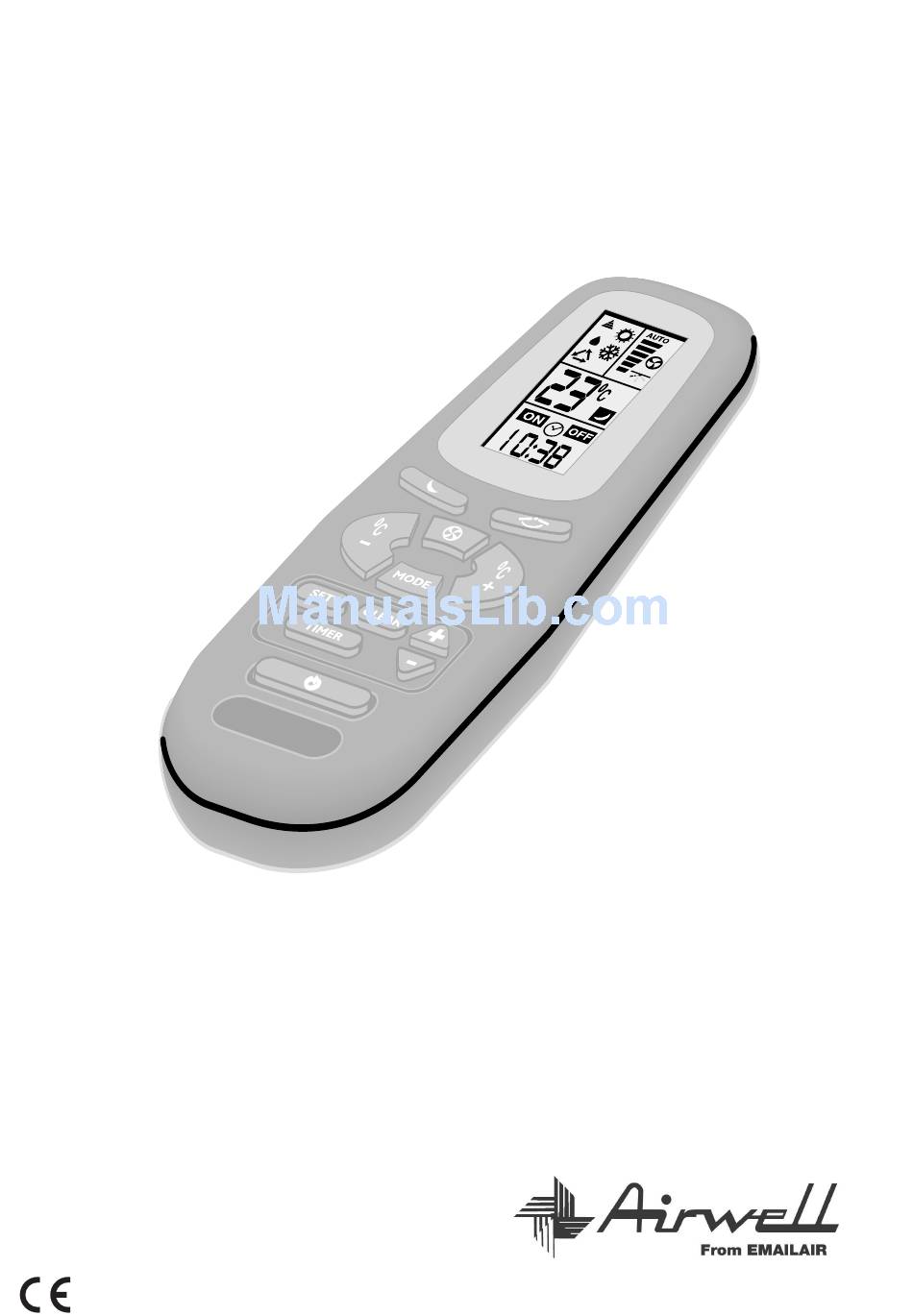

    remote control PROGRAMMING AND OPERATION MANUAL...
  • Page 2: Table Of Contents

    CONTENTS IF YOUR AIR CONDITIONER MODES OF OPERATION, FUNCTIONS AND FEATURES IS FOR COOLING ONLY, PLEASE DISREGARD THE USE OF WIRELESS REMOTE CONTROL HEATING INSTRUCTIONS REMOTE CONTROL PLEASE READ THESE INSTRUCTIONS BEFORE OPERATION PROCEDURE OPERATING THE AIR CONDITIONER Turning on the air conditioner Ventilating operation Cooling operation Cooling operation with auto fan mode...
  • Page 3: Modes Of Operation, Functions And Features

    OPERATION MODES, FUNCTIONS AND FEATURES COOL Cools, dehumidifies and filters the room air. Maintains the desired room temperature. HEAT Heats and filters the room air. Maintains the desired room temperature. AUTO Automatically switches from COOLING to HEATING or from HEATING to COOLING, maintaining the desired temperature according to the room conditions.
  • Page 4 AUTO The air louvre is automatically positioned for the most suitable blow-out angle, LOUVRE when COOL, HEAT, DRY or FAN modes are selected. When the air conditioner is turned off, the louvre will close automatically providing an aesthetic appearance. VERTICAL Automatic swing of supply air in vertical direction.
  • Page 5: Use Of Wireless Remote Control

    USE OF WIRELESS REMOTE CONTROL PRIOR TO OPERATION Prior to operating your air conditioner, make sure that: The red tab protecting the remote control batteries has been removed. For clock setting see page 8. REMOTE CONTROL HOLDER (DESK TYPE) Use the remote control holder when unit is not in use.
  • Page 6: Remote Control

    REMOTE CONTROL START/STOP button Operation MODE selection button COOLING HEATING AUTO COOL / HEAT FAN SPEED and AUTO FAN button Room temperature UP button Room temperature DOWN button SLEEP button Automatic vertical air swing TIMER button TIMER UP button TIMER DOWN button LCD operation display Infrared signal transmitter TIMER SET button...
  • Page 7: Operation Procedure

    OPERATION PROCEDURE TURNING ON THE AIR CONDITIONER Press START/STOP button (1) to turn the air conditioner on.Operation Indicator on the air conditioner will light up, indicating that the unit is in operation. Note that the LCD operation display (11) will always show the last mode of operation and previous function used.
  • Page 8: Auto Cooling/Heating Operation

    AUTO COOLING/HEATING OPERATION Select the AUTO mode by pressing MODE button (2). Switch to the desired FAN SPEED or to AUTO FAN by pressing button (3). Select suitable temperature setting. The air flap will automatically move to either horizontal air delivery for cooling or to vertical air delivery for heating. At start, the air conditioner will select its mode of operation according to the room temperature and the temperature setting.
  • Page 9: Timer Operation

    TIMER OPERATION Press TIMER select button (8) to activate the timed operation mode. Each time the TIMER button (8) is pressed, one of the following four types of operation modes will appear on the LCD display. The operation modes are sequenced in the direction of arrow.
  • Page 10: Automatic Vertical Air Swing

    AUTOMATIC VERTICAL AIR SWING Press button (7) to activate the auto air swing. Press button (7) to deactivate this function. TURNING OFF THE AIR CONDITIONER Press START/STOP button (1) to turn off the air conditioner. operation Indicator on the air conditioner will be turned off. STAND-BY Indicator will stay lit, indicating that the air conditioner is in STAND-BY mode and ready to accept any new command from the remote control.
  • Page 11 TEL: (09) 820 0333 FAX: (09) 820 0332 517A Rosebank Road Avondale, Auckland NZ NZ Tech Support Freecall TEL: 0800 180 094 www.airwell.com.au WITH A CONCERN FOR A CONSTANT IMPROVEMENT, OUR PRODUCTS CAN BE MODIFIED WITHOUT NOTICE. PHOTOS NON CONTRACTUAL. © Copyright 2003...
