Summary of Contents for Blaupunkt LAS VEGAS 900 DSP

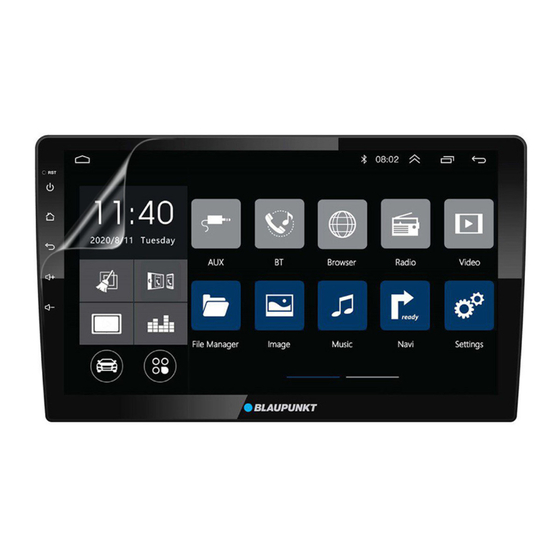

- Page 1 MULTIMEDIA NAVIGATION LAS VEGAS LAS VEGAS 1000 LAS VEGAS 900 DSP 9.0” 10.1 ” LAS VEGAS 1000 DSP Operating and Installation Instructions...
- Page 2 General Safety Notes: Disclaimer Observe the following for protection against injuries: In no event shall Blaupunkt be liable for any direct, This car radio is intended for installation and indirect, punitive, incidental, special consequential • operation in a vehicle with 12V vehicle system...
- Page 3 KEY FUNCTIONS OPERATION HOME PAGE GENERAL Power supply (12V) ..........10 V ~ 16 V DC Current consumption ..........max. 10 A Max. power output ............4 x 50W Dimension (WxLxH) ......229 x 130 x 48mm (9”) 252 x 147 x 47mm (10.1”) Weight ................0.74kg (9”) 0.87kg (10.1”)
- Page 4 TROUBLESHOOTING WIRING DIAGRAM If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt authorized dealer if problem persist. Problems Possible Causes Solutions Unable to start up The car key is not inserted into the Insert the car key and turn on the ignition.
- Page 5 LAS VEGAS 900 DSP 1 104 20 028 06 01 LAS VEGAS 1000 DSP Designed and engineered by Blaupunkt Competence Centre 1 104 20 029 06 01...
